Eaton / Moeller Series
Accessory membrane screw, integral push-through diaphragm, IP65, CE

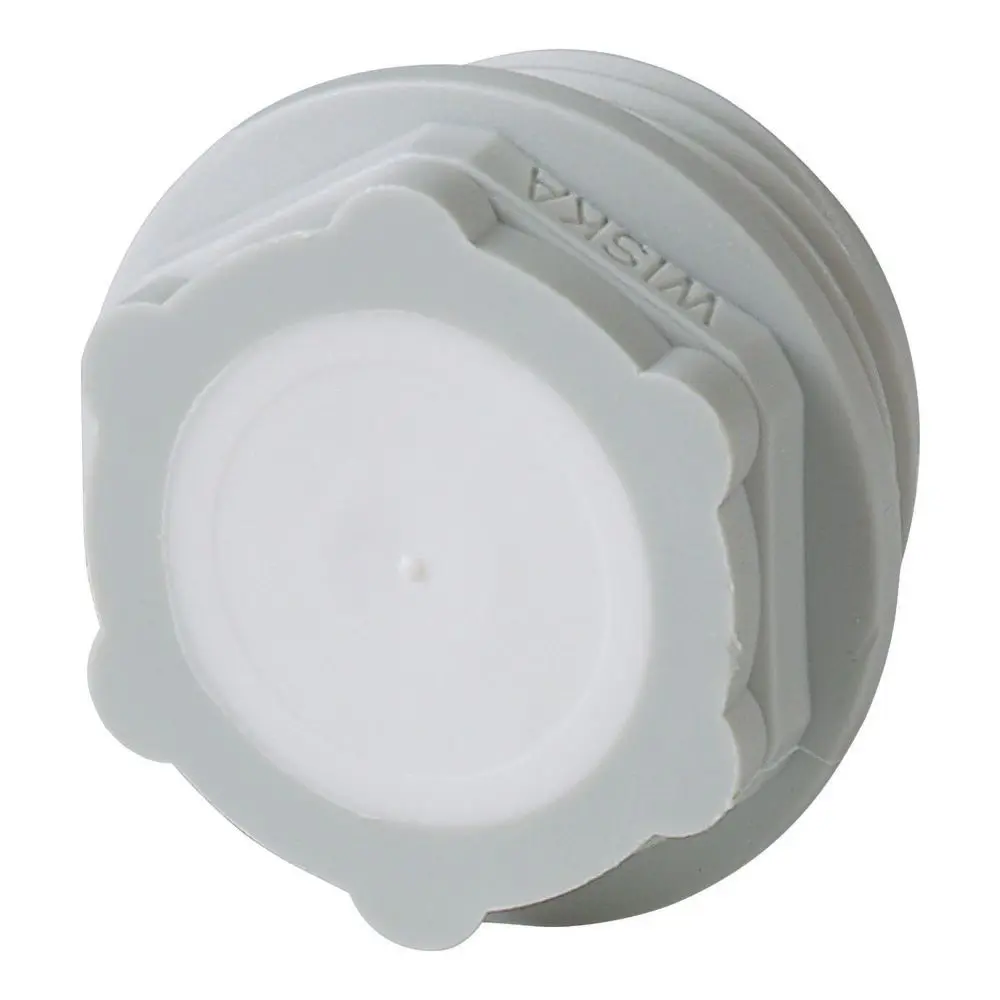

The Eaton Moeller® LS Accessory Membrane Screw EMS20 is a diaphragm bolt accessory designed for LS series limit and position switches. It features an integral push-through diaphragm that accommodates cables up to 13 mm in diameter, providing a sealed, strain-relieved connection. Constructed from durable materials and rated IP65 (when a cable is inserted), it ensures reliable performance in industrial and machinery environments. Compact and lightweight, the EMS20 offers robust protection and environmental sealing compliant with CE standards, with a temperature operating range of –25 °C to +70 °C.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Catalog Number | 225271 |
| Model Code | EMS20 |
| Product Name | LS Accessory Membrane Screw |
| Description | Diaphragm Bolt, M20 |
| Accessory Type | Membrane Screw with Integral Push-through Diaphragm |
| External Cable Diameter | Up to 13 mm |
| Degree of Protection | IP65 (with Cable Inserted) |
| Compliances | CE |
| Product Category | Accessories |
| Product Length/Depth | 24 mm |
|---|---|
| Product Height | 15 mm |
| Product Width | 24 mm |
| Product Weight | 0.028 kg |
| Ambient Operating Temperature (Min) | –25 °C |
| Ambient Operating Temperature (Max) | +70 °C |
| Rated Operational Current | 0 A (Non-current-carrying Accessory) |
| Heat Dissipation | 0 W |
| Corrosion Resistance | Meets Product Standard Requirements |
| Thermal Stability | Meets Product Standard Requirements |
| Resistance to Heat/Fire | Meets Product Standard Requirements |
| Resistance to UV Radiation | Available on Request |
| Certifications | CE |
