Eaton / Cutler-Hammer
48V, green, LED module, cylindrical steady-only, polycarbonate lens, UL/IEC/CE rated

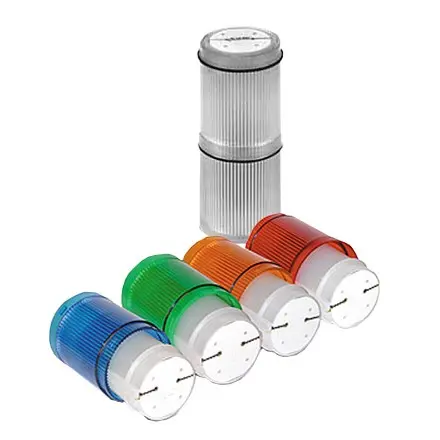

The Eaton E26BG1V3 is a green cylindrical LED module designed for steady-only operation in industrial stacklight applications. Operating at 48 Vac/Vdc, it delivers reliable, energy-efficient signaling in control panels and machinery. Engineered for durability, it features a polycarbonate lens and housing, withstands shock and vibration per IEC standards, and supports a wide temperature range from –20°C to 60°C. The LED light source offers a long service life of up to 100,000 hours, significantly reducing maintenance costs. The module is suitable for modular assembly, with industry-standard electrical and mechanical ratings for robust performance in demanding environments.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | E26BG1V3 |
| Product Type | LED Light Module |
| Light Color | Green |
| Illumination Type | Steady Only |
| Lens Shape | Cylindrical |
| Operating Voltage | 48 Vac/Vdc |
| LED Lifespan | 60,000 to 100,000 hours |
| Mounting | Modular Stacklight System |
| Insulation Voltage (Ui) | 690V |
|---|---|
| Operational Voltage (Ue) | 250V |
| Impulse Withstand Voltage (Uimp) | 1.5 kV |
| Shock Resistance | 11 ms, 15g (IEC 68-2-27) |
| Vibration Resistance | 10 sweeps 10–150 Hz, 2g (IEC 68-2-6) |
| Bump Test | 1000 pulses, 6 ms, 15g (IEC 68-2-29) |
| Operating Temperature | –4°F to 140°F (–20°C to 60°C) |
| Storage Temperature | –40°F to 176°F (–40°C to 80°C) |
| Cover Material | Polycarbonate |
| Lens Material | Polycarbonate |
| Mounting Base Material | Zinc Die Cast |
| Extension Tubes | Aluminum |
| Terminal Wire Size | 14–30 AWG (single); 18–26 AWG (dual) |
| Tightening Torque | 4.4–5.3 lb-in (0.5–0.6 Nm) |
| Certifications | UL, CE, IEC Compliant |
