Eaton
Soft start, 24VDC, 180A rated
Eaton/Moeller DS7-34DSX200N0-D is a solid state soft start controller designed for smooth motor starting with reduced mechanical stress. Operates on 24 VDC via SmartWire-DT interface. Suitable for high-power motors, it supports one start per hour with ramp-up profiles at 300% or 400% current limits at 40°C. Includes compatibility with XTOE and C440 motor protection devices.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Model | DS7-34DSX200N0-D |
|---|---|
| Device Type | Solid State Soft Start Controller |
| Control Voltage | 24 VDC (SmartWire-DT) |

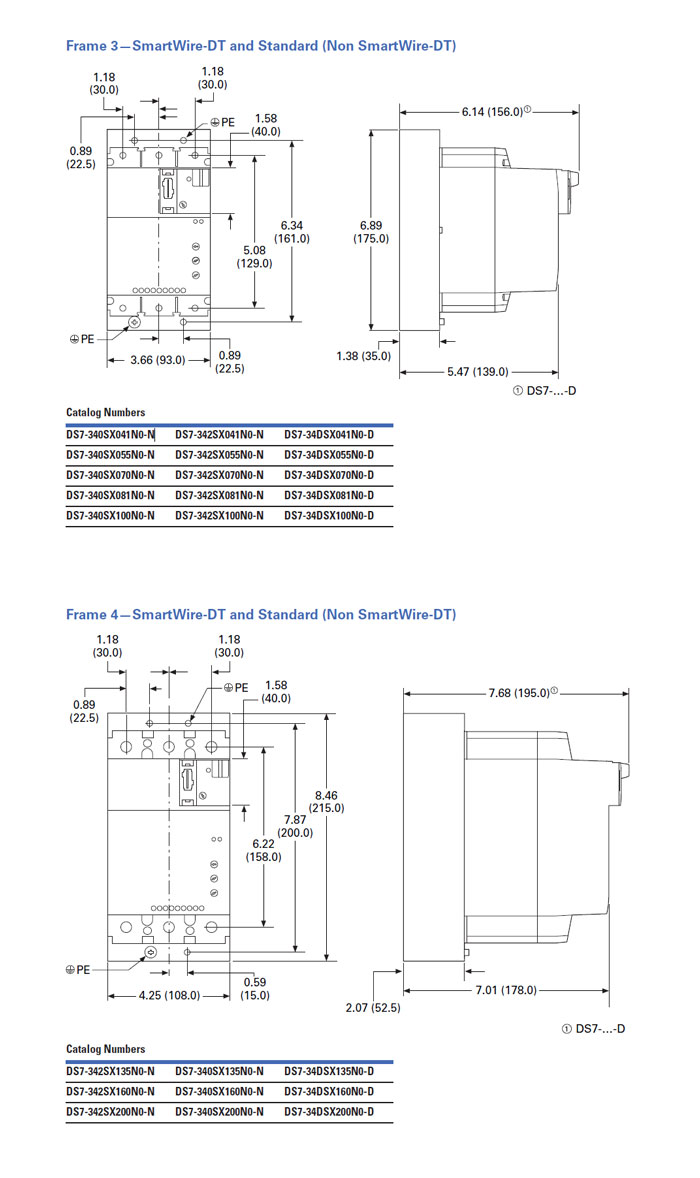

| Frame Size | 3 & 4 |
| Motor Protection (Recommended) | XTOB220LC1, C440A1A005SAX |
| Performance Ratings | ||||||
|---|---|---|---|---|---|---|
| Ramp Profile | Rated Current (A) | 200V | 230V | 480V | Breaker Size | Fuse Size |
| 10s Ramp @ 300% CL at 40°C Motor Power (HP) |
180 | 60 hp | 75 hp | 150 hp | HLD3500 | 500A (Class RK5) |
| Motor Power (kW) | 196 | 55 kW | 110 kW | |||
| 10s Ramp @ 400% at 40°C CL Motor Power (HP) |
124 | 40 hp | 50 hp | 100 hp | HLD3500 | 500A (Class RK5) |
| Motor Power (kW) | 134 | 37 kW | 75 kW | |||
