Eaton / Moeller Series
20A, 24 Vac, 60 Hz, Four-pole, Non-reversing, XT IEC series.

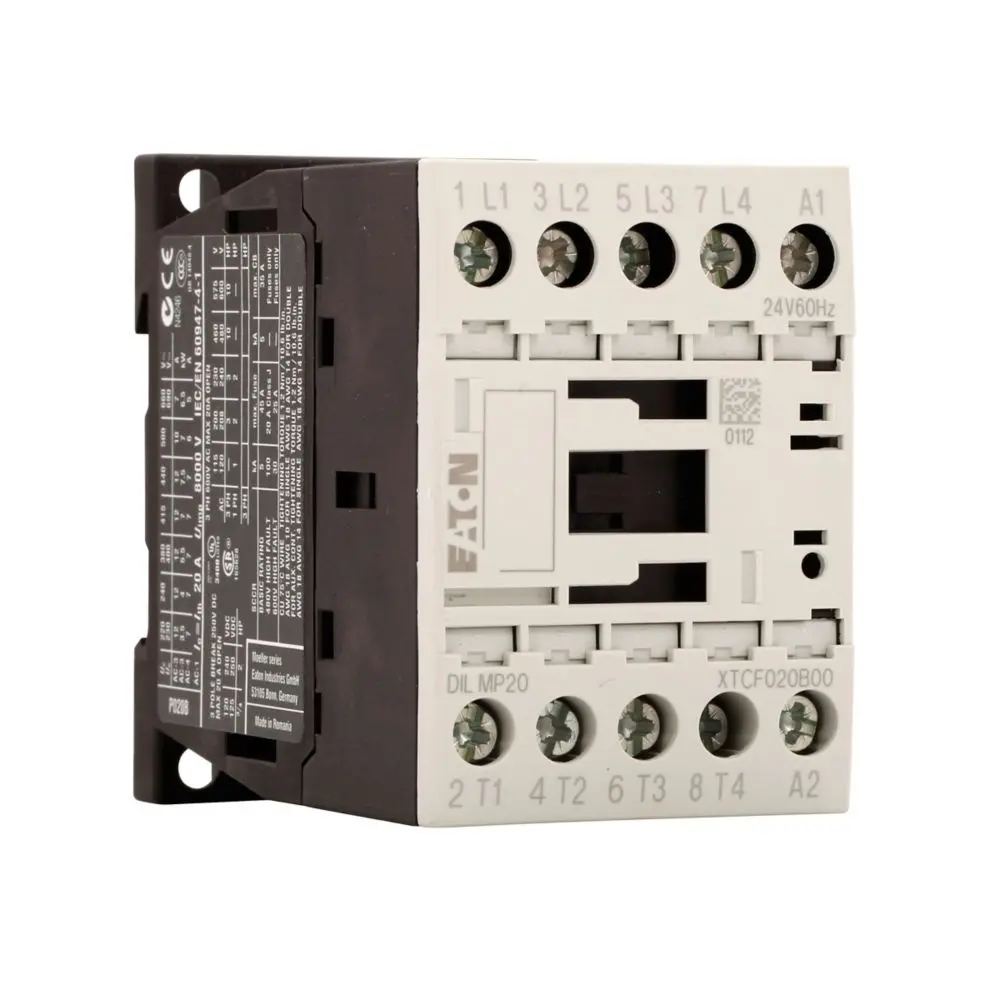

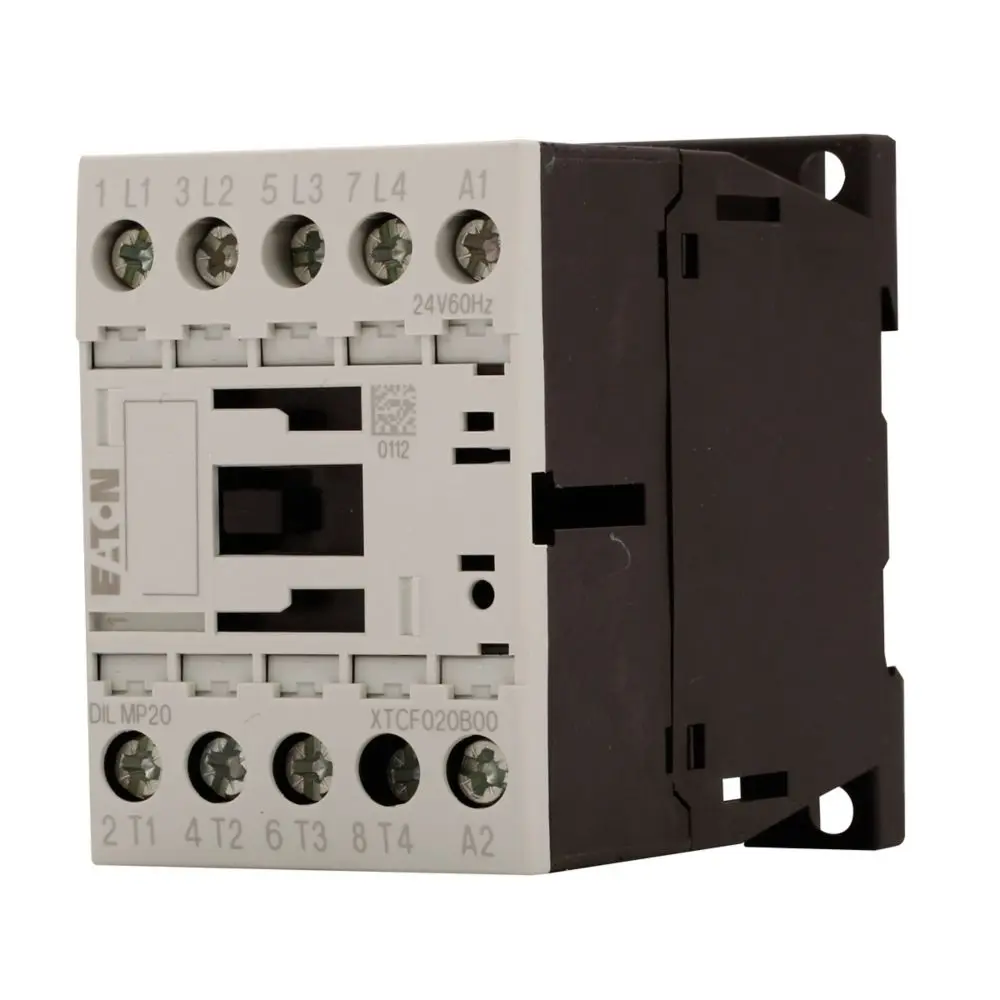

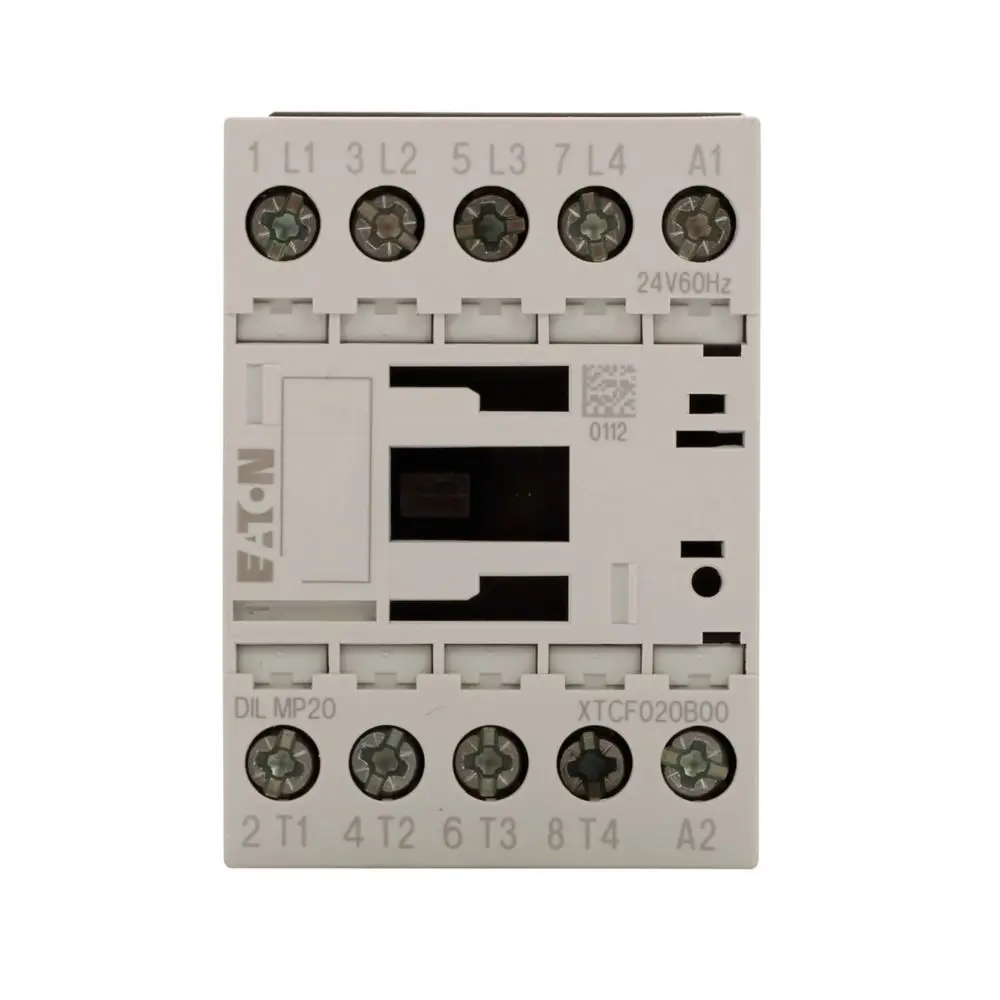

Eaton XT IEC contactor, 20A, 24 Vac, 60 Hz, Frame B, 45 mm, Four-pole, Non-reversing, XT IEC series, Screw terminals, Full voltage non-reversing contactor, 5.5 kW.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton XT IEC mini contactor |
| Catalog Number | DILMP20(24V60HZ) |
| EAN | 4015082769611 |
| Warranty | 1 year |
| Compliance | RoHS Compliant, CE Marked |
| Certifications | CSA Certified, EN 60947, UL Listed, IEC 60947 |
| Catalog Notes | Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A) |
| Specification | Value |
|---|---|
| Amperage Rating | 20A |
| Number of Poles | Four-pole |
| Type | Full voltage non-reversing contactor |
| Frequency Rating | 60 Hz |
| Frame Size | 45 mm |
| Terminals | Screw terminals |
| Coil Voltage | 24 Vac, 60 Hz |
| Continuous Ampere Rating | 20 A |
| Series | XT IEC |
| Operation | Non-reversing |
| Power Consumption | 5.5 kW |
1 year warranty covering manufacturing defects.
