Eaton

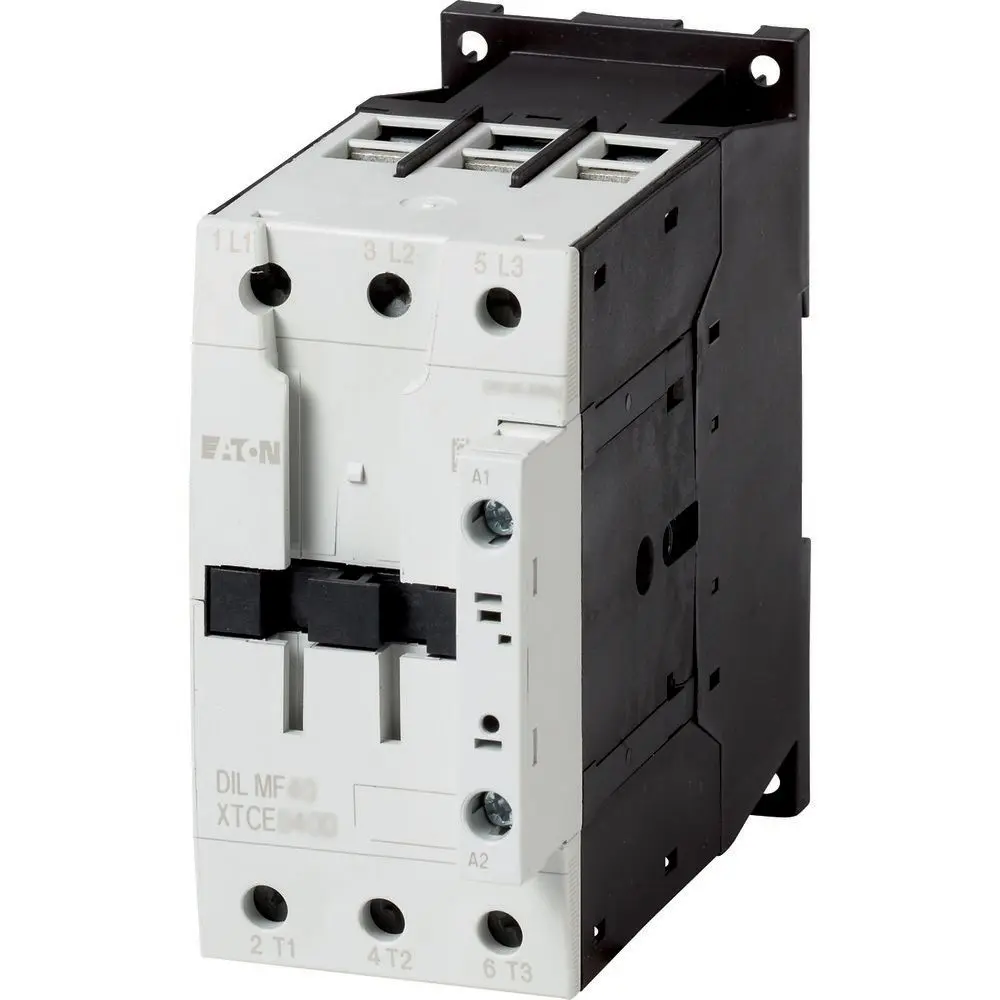

Eaton DILMF contactor, 85 A AC-1, 39 kW AC-3, 132.1 mm x 115 mm x 55 mm, 1.04 kg
Eaton Moeller® series DILMF contactor for semiconductor industries, Catalog Number 104469, EAN 4015081042869, Rated Operational Current (IE) at AC-1, 85 A, Rated Operational Power at AC-3, 39 kW, Dimensions: 132.1 mm (L) x 115 mm (H) x 55 mm (W), Weight: 1.04 kg.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILMF contactor for semiconductor industries |
| Catalog Number | 104469 |
| EAN | 4015081042869 |
| Product Length/Depth | 132.1 mm |
| Product Height | 115 mm |
| Product Width | 55 mm |
| Product Weight | 1.04 kg |
| Operating Mode | Adjustable from 50 Hz to 400 Hz |
| Number of Poles | Three-pole |
| Connection | Screw terminals |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Utilization Category | AC-4, AC-1, AC-3 |
| Climatic Operating Temperature - Min | -25 °C |
| Climatic Operating Temperature - Max | 60 °C |
| Ambient Storage Temperature - Min | -40 °C |
| Ambient Storage Temperature - Max | 80 °C |
| Specification | Value |
|---|---|
| Rated Operational Current (IE) at AC-1, 380 V, 400 V, 415 V | 85 A |
| Rated Operational Current (IE) at AC-3, 220 V, 230 V, 240 V | 65 A |
| Rated Operational Current (IE) at AC-3, 380 V, 400 V, 415 V | 65 A |
| Rated Operational Current (IE) at AC-3, 440 V | 65 A |
| Rated Operational Current (IE) at AC-3, 500 V | 65 A |
| Rated Operational Current (IE) at AC-3, 660 V, 690 V | 37 A |
| Rated Operational Current (IE) at AC-4, 220 V, 230 V, 240 V | 25 A |
| Rated Operational Current (IE) at AC-4, 400 V | 25 A |
| Rated Operational Current (IE) at AC-4, 500 V | 25 A |
| Rated Operational Current (IE) at AC-4, 660 V, 690 V | 20 A |
| Rated Insulation Voltage (UI) | 690 V |
| Rated Operational Power at AC-3, 240 V, 50 Hz | 22 kW |
| Rated Operational Power at AC-3, 380/400 V, 50 Hz | 30 kW |
| Rated Operational Power at AC-3, 415 V, 50 Hz | 39 kW |
| Rated Operational Power at AC-4, 220/230 V, 50 Hz | 7 kW |
| Rated Operational Power at AC-4, 240 V, 50 Hz | 13 kW |
| Rated Operational Power at AC-4, 415 V, 50 Hz | 14 kW |
| Rated Operational Power at AC-4, 500 V, 50 Hz | 16 kW |
| Rated Operational Power at AC-4, 660/690 V, 50 Hz | 17 kW |
