Eaton

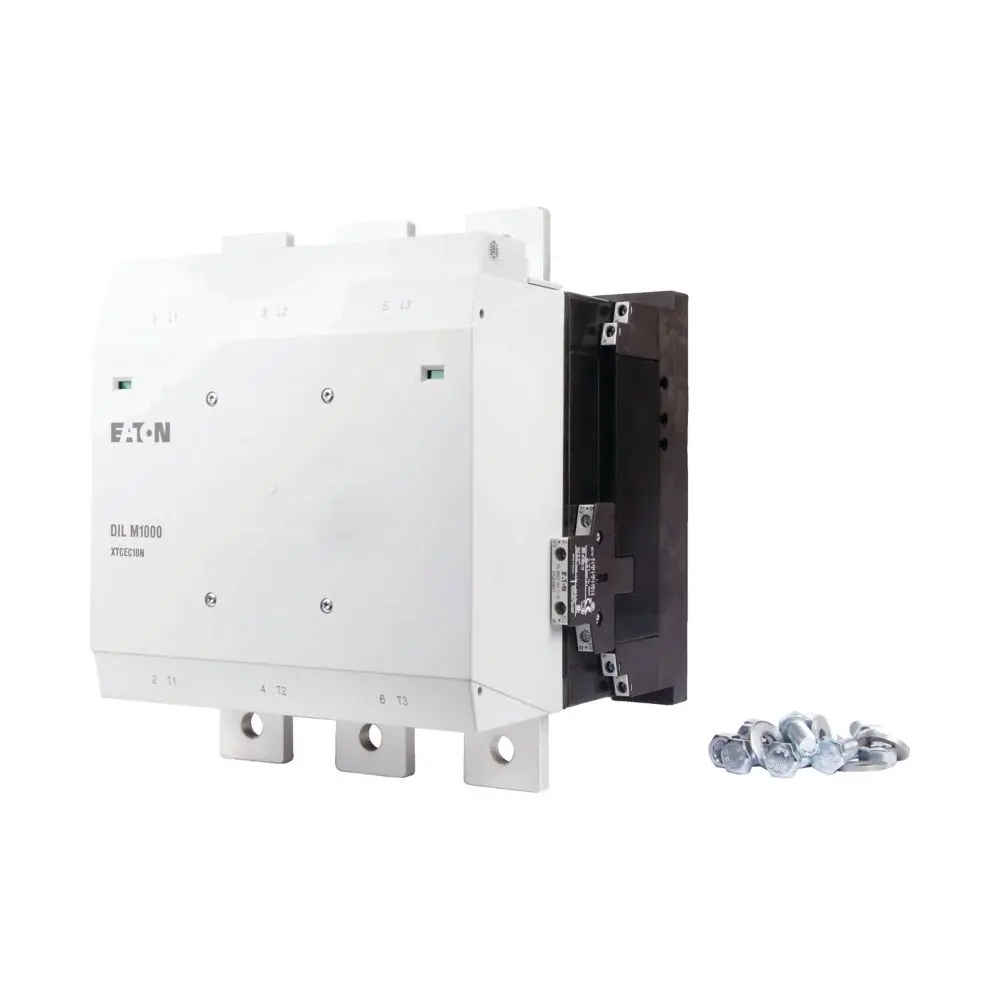

Eaton DILM Contactor, 380-400V, 265kW, 2 N/O, 2 NC, DC operation
Eaton Moeller® series DILM Contactor, 380 V 400 V 265 kW, 2 N/O, 2 NC, RDC 48: 24 - 48 V DC, DC operation, Screw connection DILM500/22(RDC48). Certifications include IEC/EN 60947-4-1, UL 60947-4-1, VDE 0660, and CSA Class No.: 3211-04. Suitable for motors with efficiency class IE3.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILM Contactor |
| Catalog Number | 208211 |
| Model Code | DILM500/22(RDC48) |
| EAN | 4015082082116 |

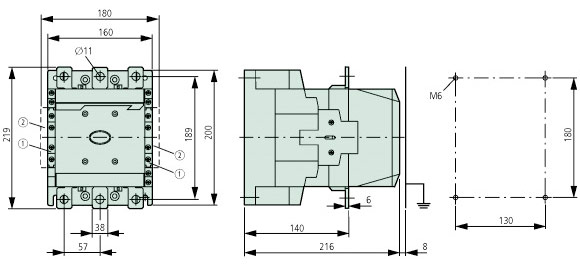

| Product Length/Depth | 216 mm |
| Product Height | 219 mm |
| Product Width | 160 mm |
| Product Weight | 8.662 kg |
| Operating Frequency | 2000 mechanical Operations/h (DC operated), 200 Operations/h |
| Ambient Operating Temperature - Max | 60 °C |
| Ambient Operating Temperature - Min | -40 °C |
| Rated Control Supply Voltage (US) at DC - Max | 48 V |
| Rated Control Supply Voltage (US) at DC - Min | 24 V |
| Specification | Value |
|---|---|
| Rated Operational Voltage (UE) at AC - Max | 1000 V |
| Rated Insulation Voltage (UI) | 1000 V |
| Rated Making Capacity (COS PHI to IEC/EN 60947) | 5500 A |
| Rated Operational Current (IE) at AC-3, 1000 V | 95 A |
| Rated Operational Current (IE) at AC-3, 220 V, 230 V, 240 V | 500 A |
| Rated Operational Current (IE) at AC-3, 380 V, 400 V, 415 V | 500 A |
| Rated Operational Current (IE) at AC-3, 440 V | 500 A |
| Rated Operational Current (IE) at AC-3, 500 V | 500 A |
| Rated Operational Current (IE) at AC-3, 660 V, 690 V | 325 A |
| Rated Operational Current (IE) at AC-4, 1000 V | 95 A |
| Rated Operational Current (IE) at AC-4, 220 V, 230 V, 240 V | 360 A |
| Rated Operational Current (IE) at AC-4, 400 V | 360 A |
| Rated Operational Current (IE) at AC-4, 440 V | 360 A |
| Rated Operational Current (IE) at AC-4, 500 V | 360 A |
| Rated Operational Current (IE) at AC-4, 660 V, 690 V | 260 A |
| Rated Operational Power at AC-3, 1000 V, 50 Hz | 132 kW |
| Rated Operational Power at AC-3, 220 V, 50 Hz | 112 kW |
| Rated Operational Power at AC-3, 240 V, 50 Hz | 122 kW |
| Rated Operational Power at AC-3, 380/400 V, 50 Hz | 250 kW |
| Rated Operational Power at AC-4, 1000 V, 50 Hz | 132 kW |
| Rated Operational Power at AC-4, 220/230 V, 50 Hz | 112 kW |
| Rated Operational Power at AC-4, 240 V, 50 Hz | 122 kW |
| Rated Operational Power at AC-4, 380/400 V, 50 Hz | 200 kW |
