Eaton
Eaton DILM Contactor, 400 V, 500 A, 250 kW, IP00, 8.662 kg
Eaton Moeller® series DILM Contactor, Catalog Number 208212, rated for 380 V, 400 V, 265 kW, with 2 N/O and 2 NC contacts. Suitable for AC and DC operation with a coil voltage of 48 - 110 V. Dimensions are 216 mm in length, 160 mm in width, and 219 mm in height, weighing 8.662 kg. It has a degree of protection IP00 and operates within an ambient temperature range of -40 °C to 60 °C.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILM Contactor |
| Catalog Number | 208212 |
| EAN | 4015082082123 |
| Contacts | 2 N/O, 2 NC |
| Coil Voltage | 48 - 110 V AC/DC |
| Weight | 8.662 kg |

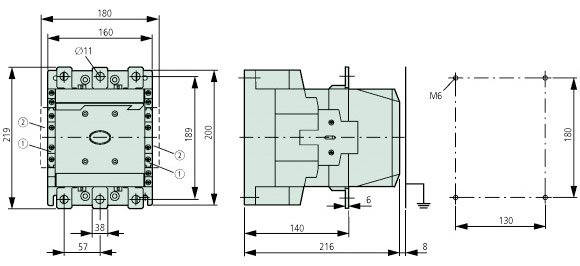

| Dimensions | 216 mm (L) x 160 mm (W) x 219 mm (H) |
| Specification | Value |
|---|---|
| Rated Operational Current (IE) at AC-3, 400 V | 500 A |
| Rated Operational Power at AC-3, 400 V, 50 Hz | 250 kW |
| Rated Insulation Voltage (UI) | 1000 V |
| Rated Breaking Capacity at 400 V | 5000 A |
| Conventional Thermal Current Ith at 40°C (3-pole, open) | 800 A |
| Operating Frequency | 2000 mechanical Operations/h (AC operated) |
| Degree of Protection | IP00 |
| Shock Resistance | 10 g |
| Ambient Operating Temperature - Max | 60 °C |
| Ambient Storage Temperature - Max | 80 °C |
