Eaton

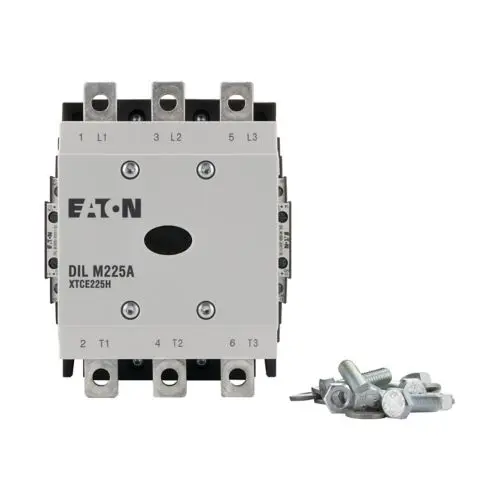

Eaton DILM Contactor, 380/400 V, 110 kW, 225 A, IP00, 10M cycles
Eaton Moeller® series DILM Contactor, 380 V 400 V 110 kW, 2 N/O, 2 NC, RDC 60: 48 - 60 V DC, DC operation, Screw connection. Rated Operational Current (IE) at AC-3, 400 V: 225 A. Rated Operational Power at AC-3, 400 V, 50 Hz: 110 kW. Rated Insulation Voltage (UI): 1000 V. Rated Breaking Capacity at 400 V: 2250 A. Conventional Thermal Current Ith at 40°C (3-pole, open): 386 A. Drop-Out Voltage (DC operated): 0.2 x US max - 0.6 US min. Operating Frequency: 200 Operations/h. Mechanical Lifespan: 10,000,000 Operations (DC operated). Degree of Protection: IP00.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILM Contactor |
| Catalog Number | 139551 |
| EAN | 4015081363292 |
| Model Code | DILM225A/22(RDC60) |
| Application | Contactors for Motors |
| Connection | Screw terminals |
| Certifications | UL 60947-4-1, CSA, VDE 0660, CE |
| Specification | Value |
|---|---|
| Rated Operational Current (IE) at AC-3, 400 V | 225 A |
| Rated Operational Power at AC-3, 400 V, 50 Hz | 110 kW |
| Rated Insulation Voltage (UI) | 1000 V |
| Rated Breaking Capacity at 400 V | 2250 A |
| Conventional Thermal Current Ith at 40°C (3-pole, open) | 386 A |
| Drop-Out Voltage (DC operated) | 0.2 x US max - 0.6 US min |
| Operating Frequency | 200 Operations/h |
| Mechanical Lifespan | 10,000,000 Operations (DC operated) |
| Degree of Protection | IP00 |
