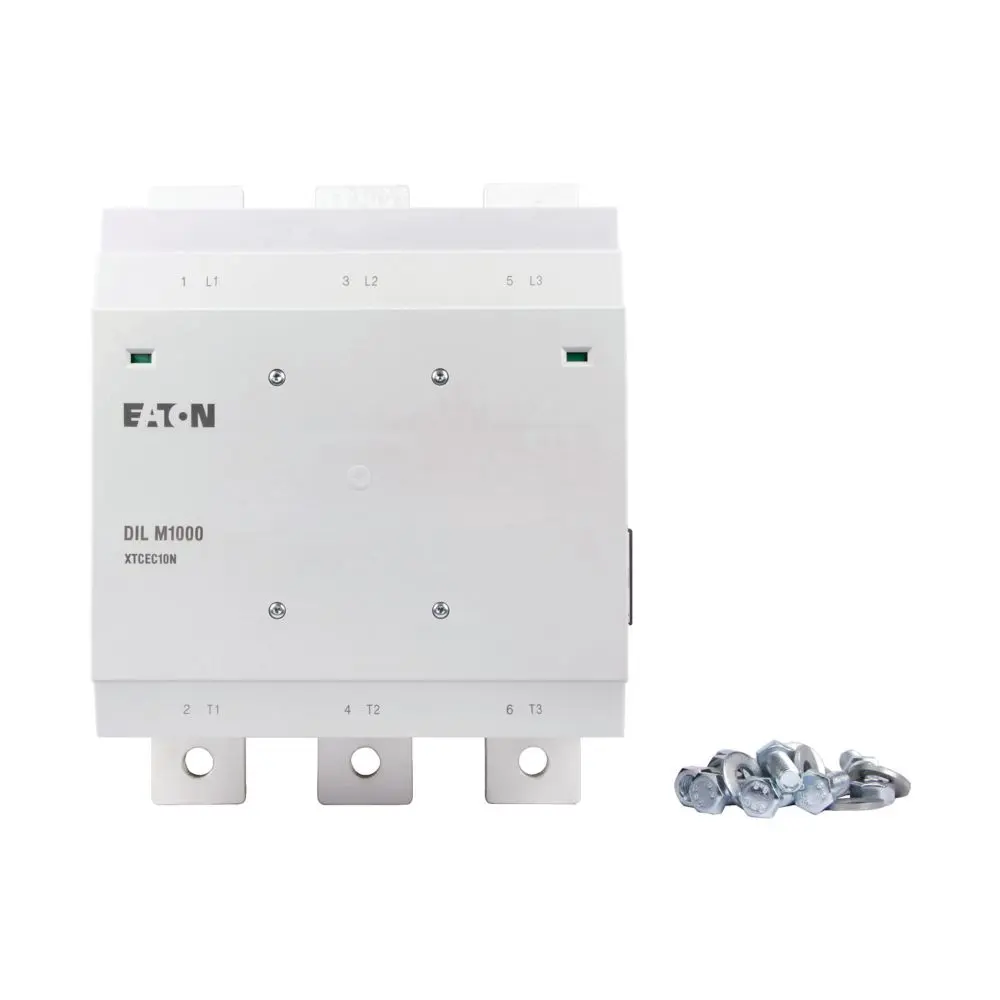

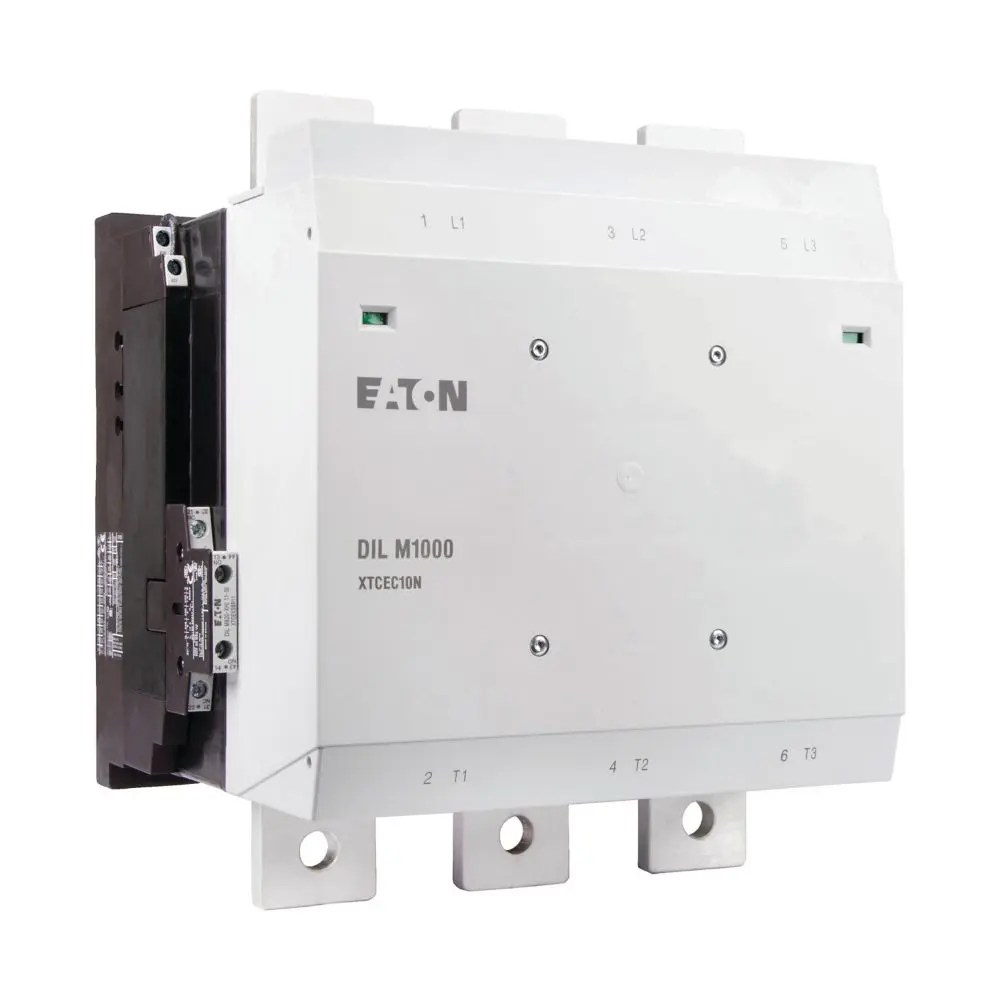

Eaton DILM Contactor, 380-400V, 560kW, 2 N/O, 2 NC, IP00
Eaton Moeller® series DILM Contactor, Catalog Number 267214, Model Code DILM1000/22(RA250), rated for 380 V - 400 V, 560 kW, with 2 N/O and 2 NC contacts. It operates at 110 - 250 V AC, 40 - 60 Hz / 110 - 350 V DC. The device has a conventional thermal current Ith of 1044 A at 55°C and a rated breaking capacity of 5800 A at 1000 V. It features a degree of protection IP00 and operates within a temperature range of -40 °C to 60 °C.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Connection Type | Screw terminals |
| Pollution Degree | 3 |
| Climatic Proofing | Damp heat, constant, to IEC 60068-2-78 |
| Rated Insulation Voltage (UI) | 1000 V |
| Short-Circuit Current Rating | 1200 A, max. CB, SCCR (UL/CSA) |
| Mechanical Lifespan | 5,000,000 Operations (DC operated) |
| Electrical Lifespan | 100,000 Operations (at Condensor operation) |
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILM Contactor |
| Catalog Number | 267214 |
| Model Code | DILM1000/22(RA250) |
| EAN | 4015082672140 |
| Rated Voltage | 380 V - 400 V |
| Rated Power | 560 kW |
| Number of Contacts | 2 N/O, 2 NC |
| Rated Control Supply Voltage | 110 - 250 V AC, 40 - 60 Hz / 110 - 350 V DC |
| Conventional Thermal Current Ith | 1044 A at 55°C (3-pole, open) |
| Rated Breaking Capacity at 1000 V | 5800 A |
| Rated Operational Current (IE) at AC-3, 1000 V | 750 A |
| Rated Operational Power at AC-3, 1000 V, 50 Hz | 1100 kW |
| Degree of Protection | IP00 |
| Operating Temperature | -40 °C to 60 °C |
| Weight | 17.338 kg |
