Eaton

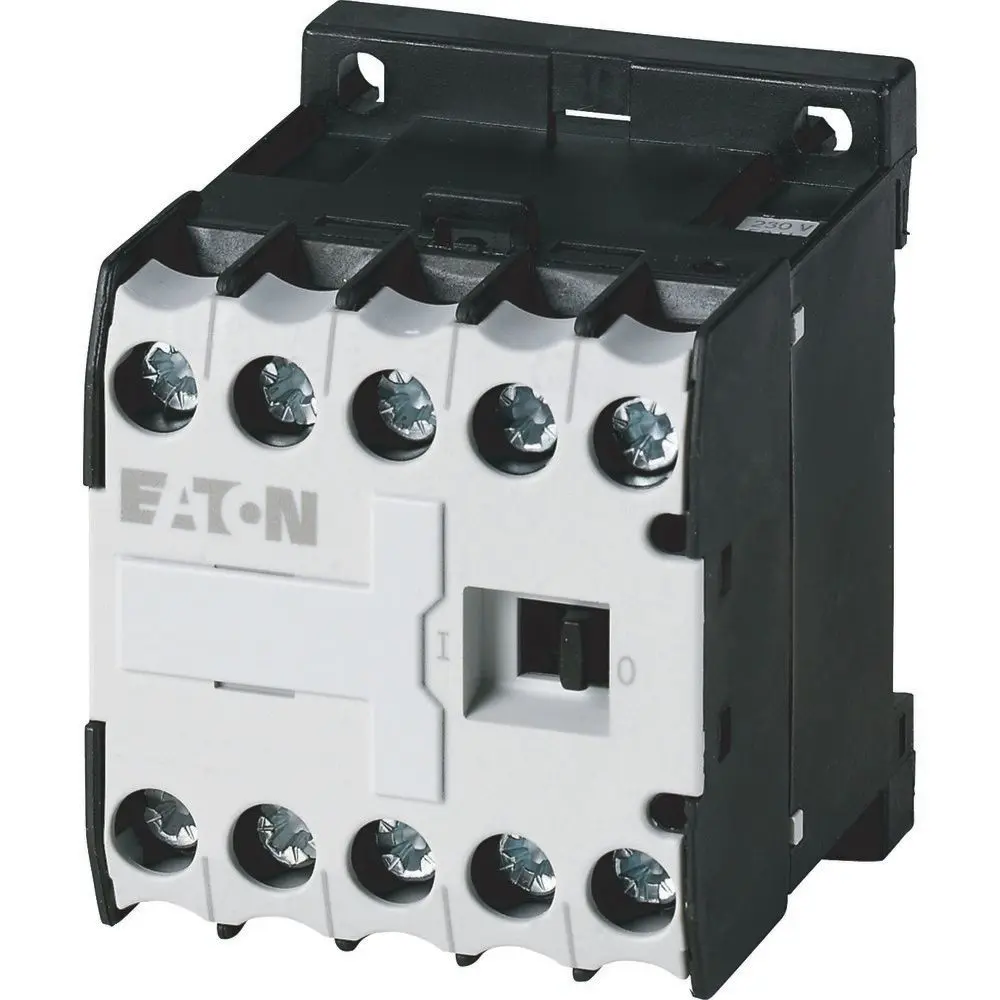

Eaton DILER Control relay, 24V DC, 3 N/O, 1 N/C, 6000V AC withstand.
Eaton Moeller® series DILER Control relay, Catalog Number 010157, Model Code DILER-31-G(24VDC), EAN 4015080101574. Features include 1 Normally Closed and 3 Normally Open auxiliary contacts, with a power consumption of 2.3 W at DC. Rated impulse withstand voltage is 6000 V AC. The device operates with a maximum switching time of 26 ms for closing delay and 25 ms for opening delay.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILER Control relay |
| Catalog Number | 010157 |
| Model Code | DILER-31-G(24VDC) |
| Number of Auxiliary Contacts (Normally Closed) | 1 |
| Number of Auxiliary Contacts (Normally Open) | 3 |
| Power Consumption (Pick-Up) at DC | 2.3 W |
| Power Consumption (Sealing) at DC | 2.3 W |
| Rated Impulse Withstand Voltage (UIMP) | 6000 V AC |
| Switching Time (DC Operated, Make Contacts, Closing Delay) | 26 ms |
| Switching Time (DC Operated, Make Contacts, Opening Delay - Max) | 25 ms |
| Switching Time (DC Operated, Make Contacts, Opening Delay - Min) | 15 ms |
| Application | Contactor relays |
| Product Category | DILER Mini-contactors |
| Specification | Value |
|---|---|
| Operating Voltage at AC, 50 Hz - Min | 17 V |
| Operating Voltage at AC, 50 Hz - Max | 500 V |
| Operating Voltage at AC, 60 Hz - Min | 17 V |
| Operating Voltage at AC, 60 Hz - Max | 500 V |
| Operating Voltage at DC - Min | 24 VDC |
| Operating Voltage at DC - Max | 220 VDC |
| Rated Operational Current (IE) at AC-15, 220 V | 6 A |
| Rated Operational Current (IE) at AC-15, 380 V | 3 A |
| Rated Operational Current (IE) at AC-15, 500 V | 1.5 A |
| Degree of Protection | IP20 |
| Protection Against Electric Shock | Finger and back-of-hand proof |
| Mechanical Lifespan | 20,000,000 Operations (DC operated) |
| Switching Capacity (Auxiliary Contacts, General Use) | 0.5 A, 250 V DC, (UL/CSA) |
| Switching Capacity (Auxiliary Contacts, Pilot Duty) | A600, AC operated (UL/CSA) |
