Eaton

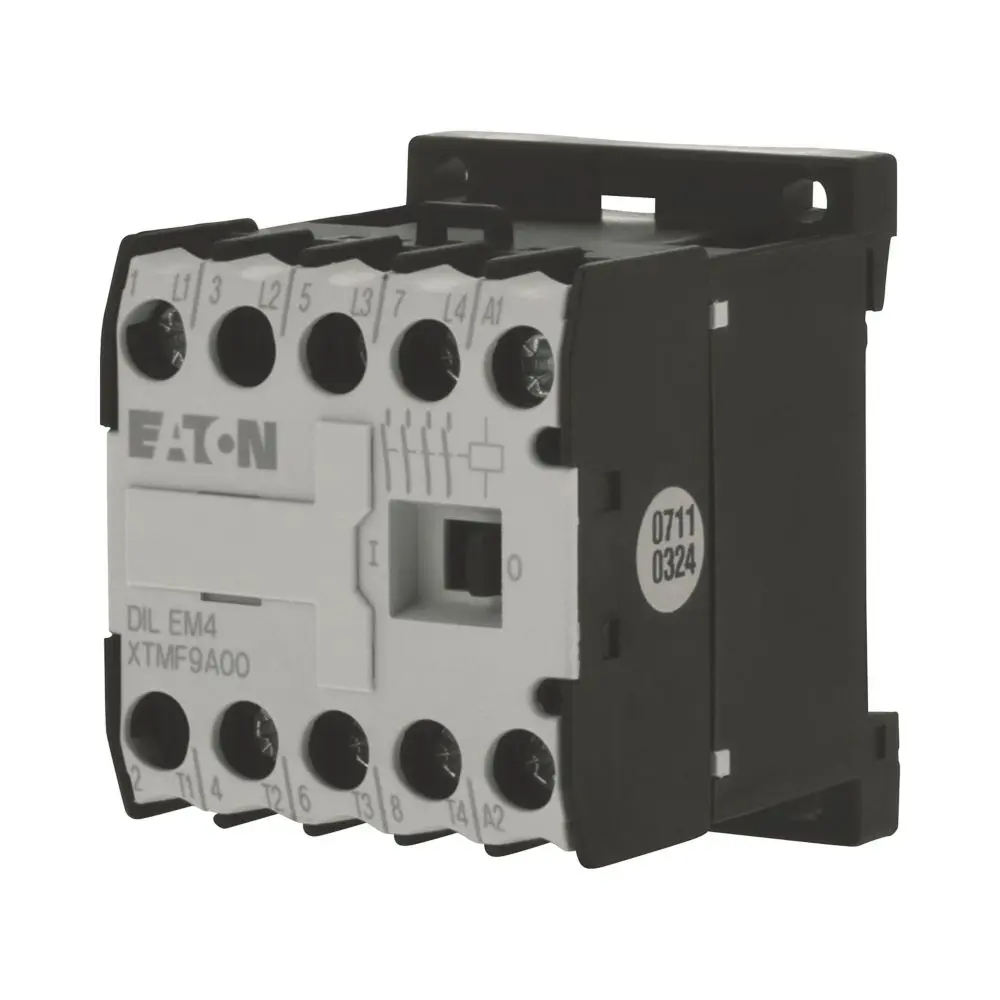

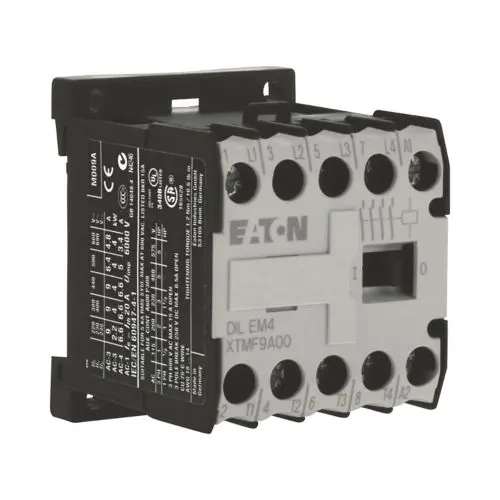

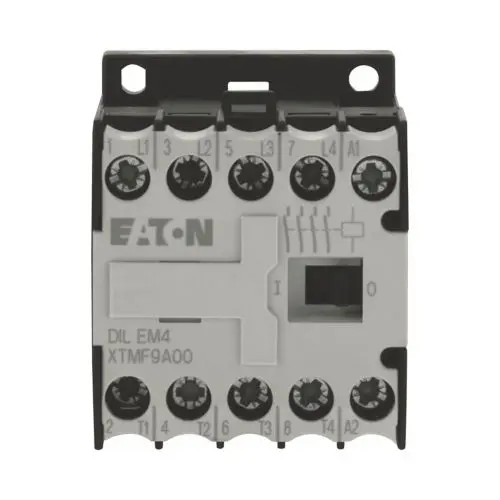

Eaton DILEM Mini contactor, 24V DC, 4-pole, 4 kW, IP20
Eaton Moeller® series DILEM Mini contactor, 24 V DC, 4 pole, 380 V 400 V, 4 kW, Screw terminals, DC operation. Rated operational current at AC-1 is 22 A, AC-15 is 6 A, and AC-3 is 9 A. Rated operational power at AC-3 is 4 kW. The product has a rated insulation voltage of 690 V and a degree of protection of IP20.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILEM Mini contactor |
| Catalog Number | 012701 |
| Model Code | DILEM4-G(24VDC) |
| EAN | 4015080127017 |
| Product Length/Depth | 54 mm |
| Product Height | 58 mm |
| Product Width | 45 mm |
| Product Weight | 0.206 kg |
| Certifications | IEC/EN 60947, UL 508, CSA, CE, VDE 0660 |
| Utilization Category | AC-3, AC-1, AC-4 |
| Specification | Value |
|---|---|
| Number of Poles | Four-pole |
| Rated Operational Current (IE) at AC-1, 380 V, 400 V, 415 V | 22 A |
| Rated Operational Current (IE) at AC-15, 220 V, 230 V, 240 V | 6 A |
| Rated Operational Current (IE) at AC-3, 220 V, 230 V, 240 V | 9 A |
| Rated Operational Power at AC-3, 380/400 V, 50 Hz | 4 kW |
| Rated Insulation Voltage (UI) | 690 V |
| Rated Control Supply Voltage (US) at DC | 24 V |
| Degree of Protection | IP20 |
| Operating Frequency | 9000 mechanical Operations/h |
| Ambient Operating Temperature - Max | 50 °C |
| Ambient Operating Temperature - Min | -25 °C |
| Heat Dissipation per Pole, Current-Dependent PVID | 1.79 W |
