Eaton

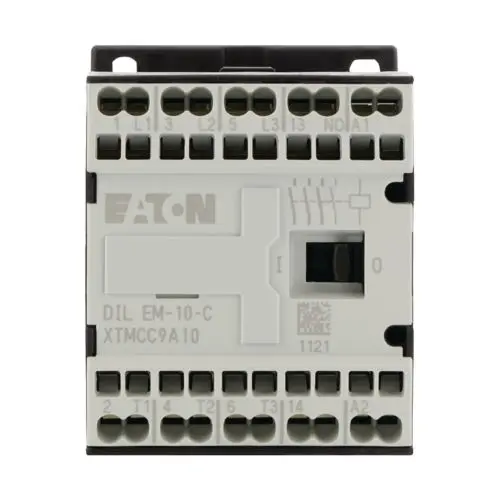

Eaton DILEM Mini contactor, 3 pole, 4 kW, 230/240 V, CE certified.
Eaton Moeller® series DILEM Mini contactor, 230 V 50 Hz, 240 V 60 Hz, 3 pole, 380 V 400 V, 4 kW, Contacts N/O = Normally open= 1 N/O, Spring-loaded terminals, AC operation.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILEM Mini contactor |
| Catalog Number | 230164 |
| EAN | 4015082301644 |
| Model Code | DILEM-10-C(230V50HZ,240V60HZ) |
| Number of Poles | Three-pole |
| Protection | Finger and back-of-hand proof |
| Certifications | CE, UL 508, CSA, IEC/EN 60947 |
| Specification | Value |
|---|---|
| Rated Breaking Capacity at 220/230 V | 90 A |
| Rated Operational Power at AC-3, 240 V, 50 Hz | 2.5 kW |
| Rated Operational Current (IE) at AC-1, 380 V | 22 A |
| Rated Operational Current (IE) at AC-3, 400 V | 9 A |
| Rated Insulation Voltage (UI) | 690 V |
| Conventional Thermal Current Ith (3-Pole, Enclosed) | 16 A |
| Short-Circuit Current Rating (Basic Rating) | 5 kA, SCCR (UL/CSA) |
| Operating Frequency | 9000 mechanical Operations/h |
| Ambient Operating Temperature - Min | -25 °C |
| Ambient Operating Temperature - Max | 50 °C |
