Eaton / Moeller Series
63A, connection clamp, incoming unit from bottom, for round conductors, CE compliant

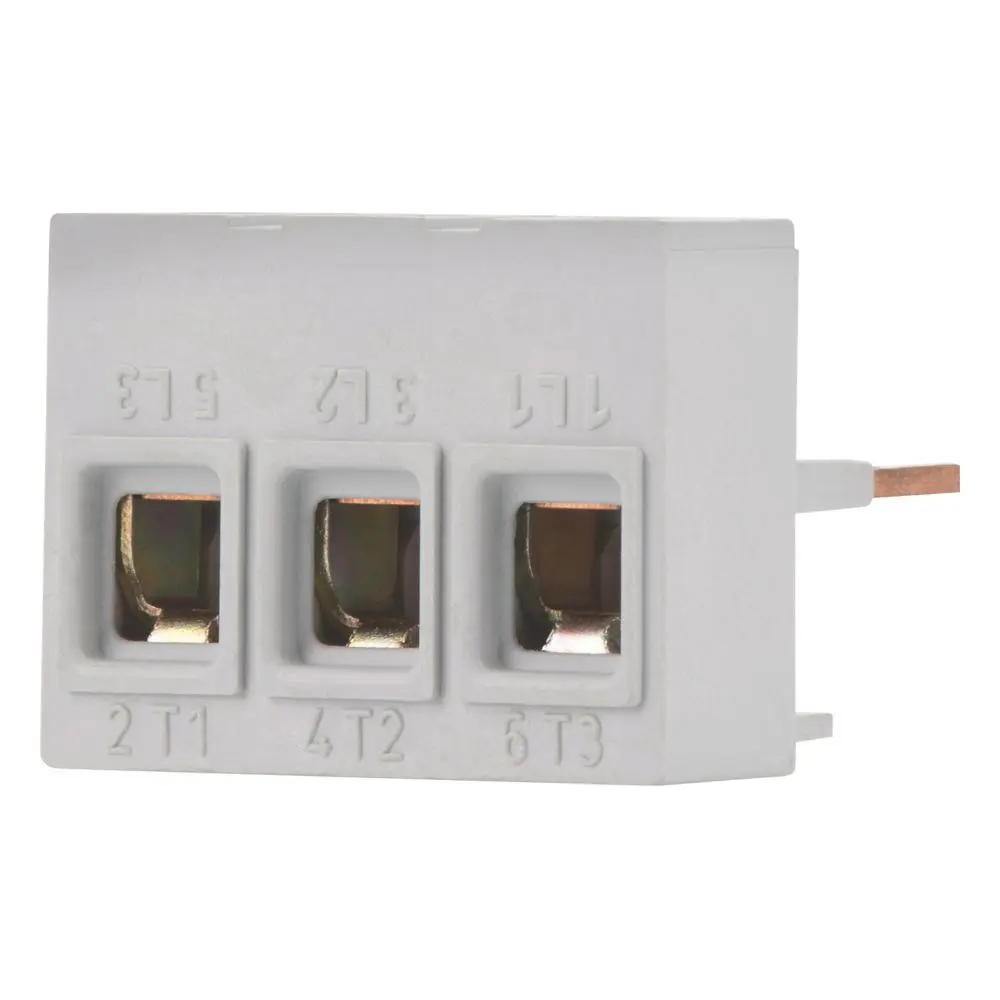

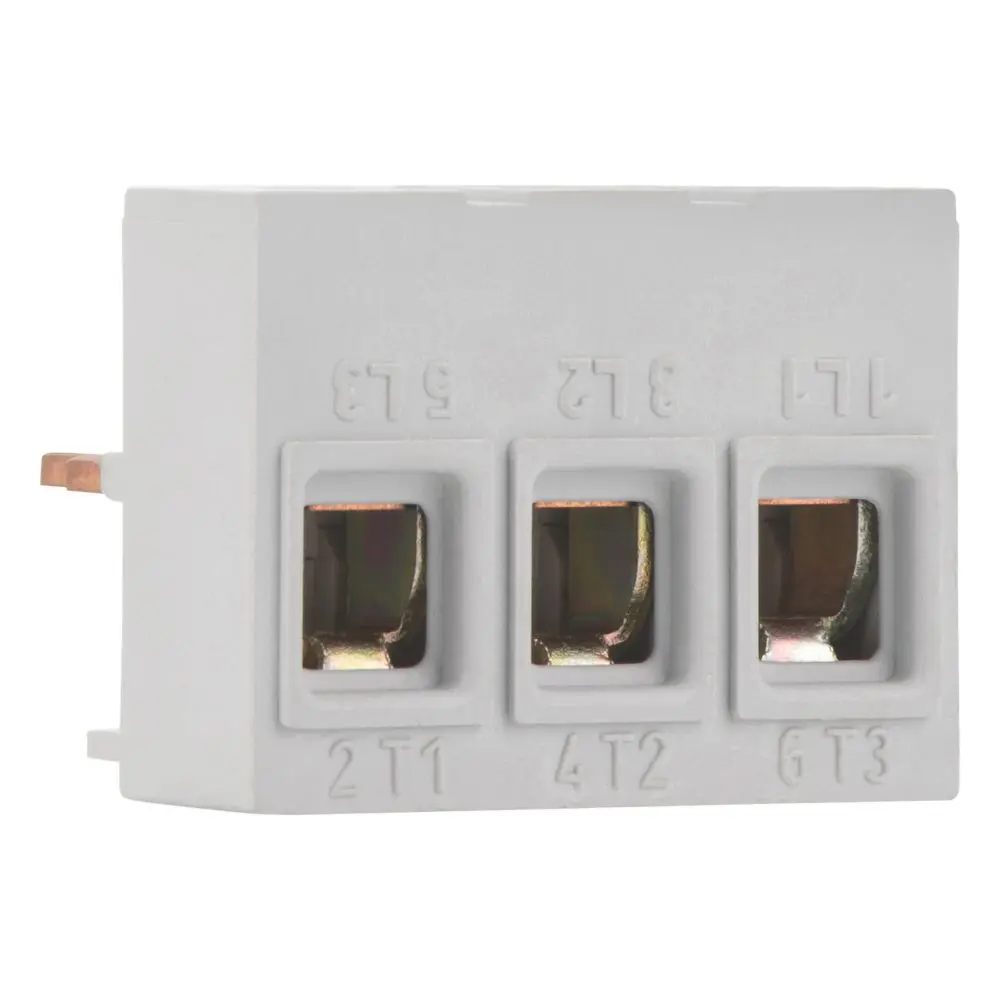

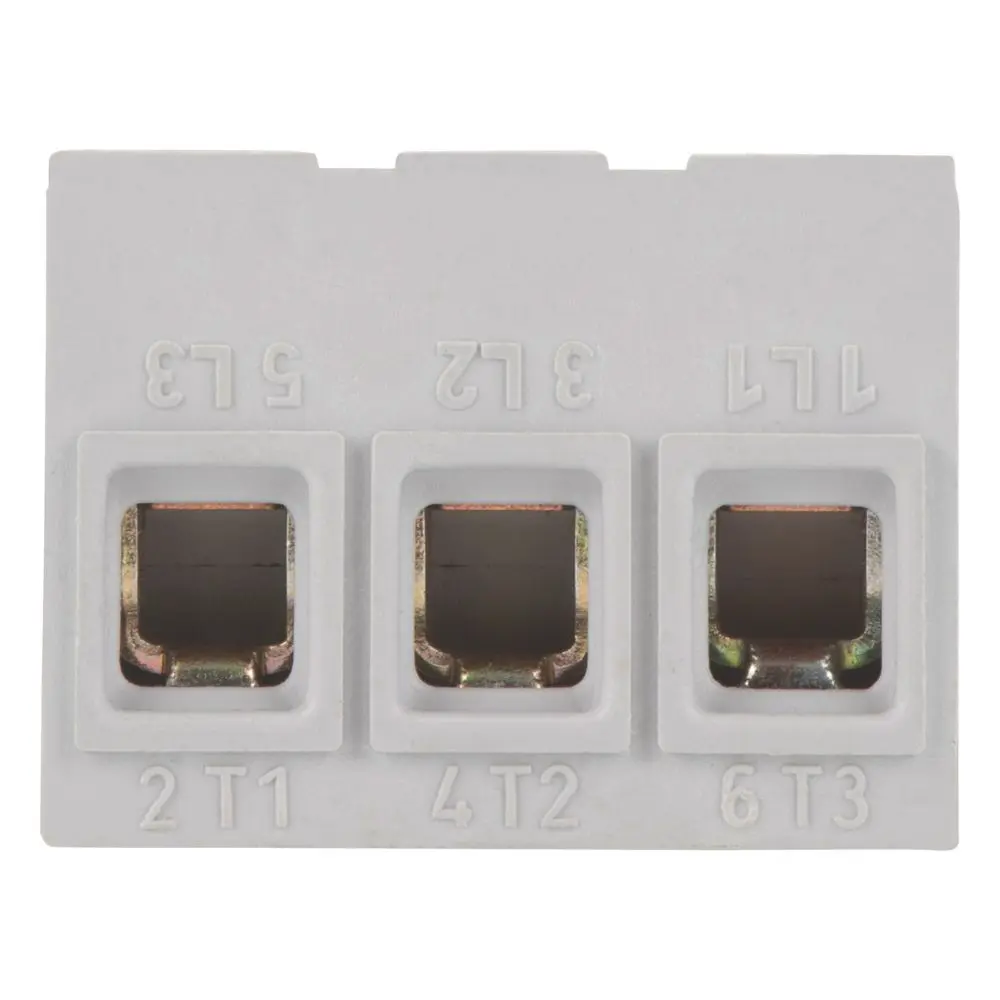

The Eaton Moeller® series PKZ connection clamp (catalog no. 292886, model BK25/3-PKZ0-U) is an incoming terminal unit designed for bottom connection of round conductors in three-phase commoning link systems. Rated for up to 63 A and 415 VAC, it supports conductor cross-sections up to 25 mm². Built with corrosion resistance and verified to IEC/EN 61439 standards, it ensures safe and reliable electrical connections. With CE compliance, a compact 45 mm clamp width, and operating temperature range from -25 °C to +55 °C, the BK25/3-PKZ0-U provides durable and secure integration into motor protection and distribution assemblies.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | Moeller PKZ |
| Catalog Number | 292886 |
| Model Code | BK25/3-PKZ0-U |
| EAN | 4015082928865 |
| Product Type | Connection Clamp (Incoming Unit) |
| Application | Incoming unit from bottom for three-phase commoning link |
| Clamp Width | 45 mm |
| Weight | 0.047 kg |
| Rated Operational Voltage (Ue) | 415 VAC |
|---|---|
| Rated Operational Current (Ie) | 63 A |
| Conductor Cross Section | Up to 25 mm² |
| Conductor Type | Round conductor, other |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Ambient Operating Temperature | -25 °C … +55 °C |
| Heat Dissipation | 0 W (non-current dependent) |
| Design Verification | IEC/EN 61439 corrosion, thermal stability, and mechanical requirements met |
| Certifications | CE |
