Eaton / Moeller Series

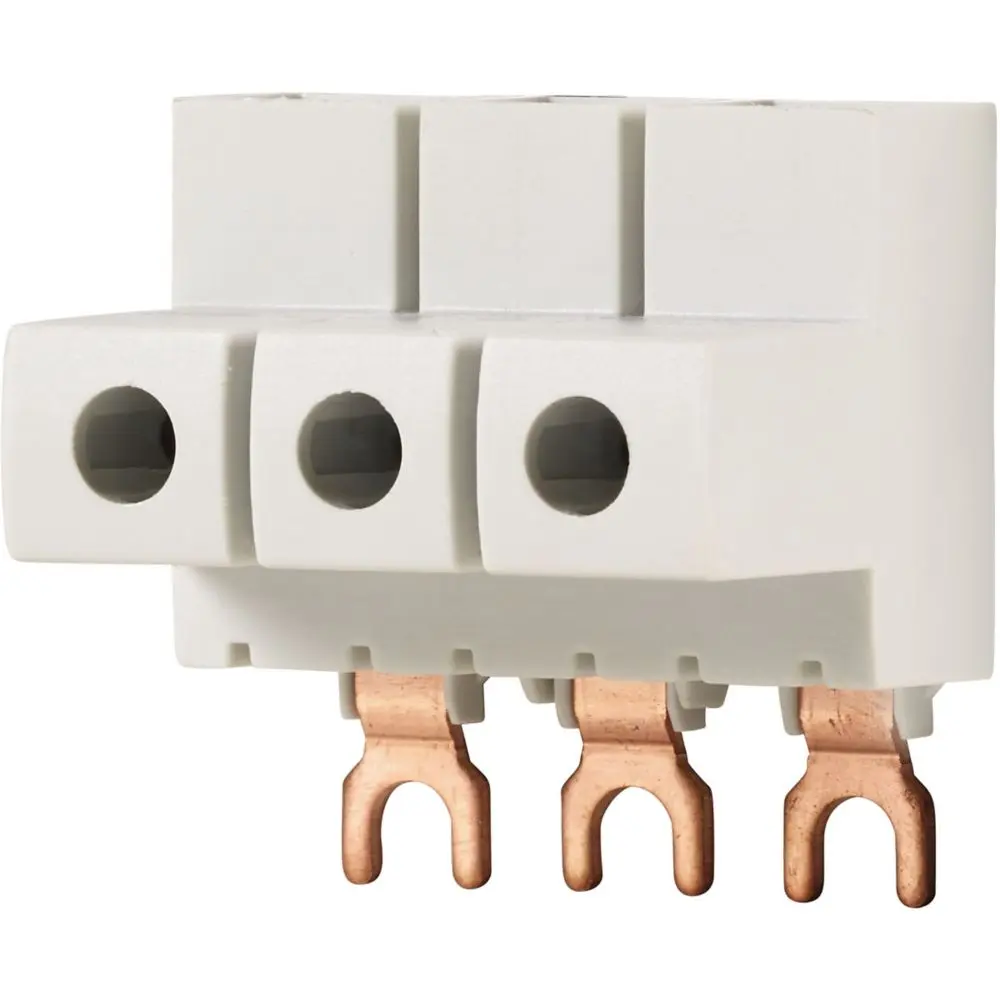

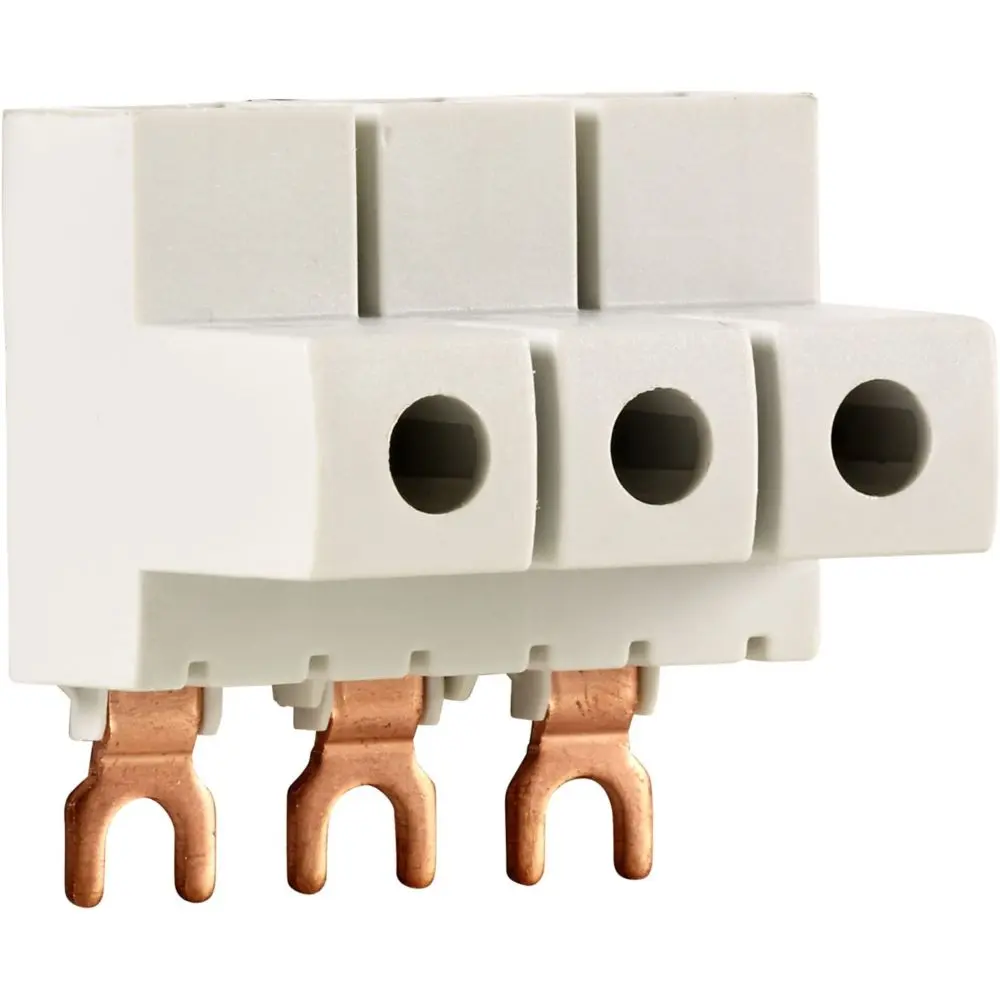

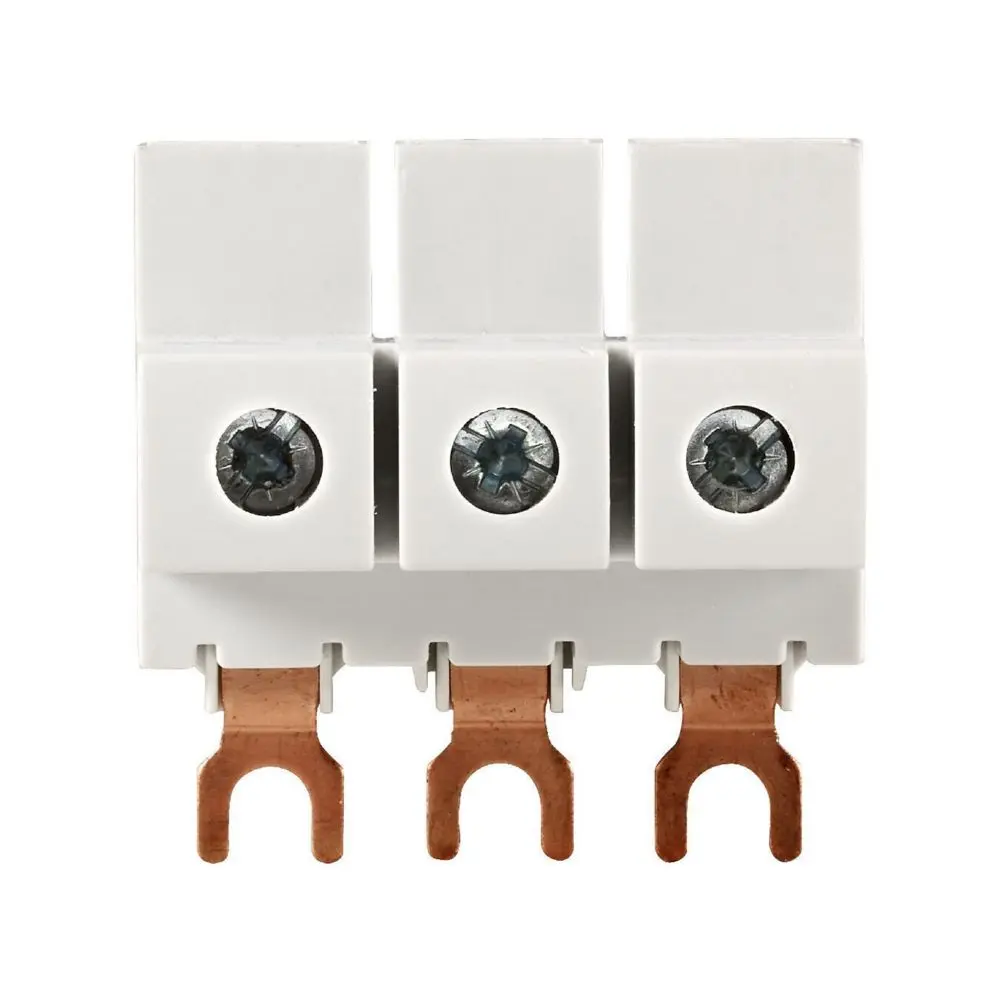

Incoming terminal, for PKZM0/PKE, protected against accidental contact, IEC/UL/CSA/CE
The Eaton/Moeller BK25/3-PKZ0 (XTPAXIT) incoming terminal is designed for use with PKZM0 and PKE motor-protective circuit breakers. It enables safe connection to three-phase commoning links, providing reliable power distribution while ensuring protection against accidental contact. Rated for 690 V and 63 A, the terminal supports a wide conductor range, including 2.5–25 mm² stranded, 2.5–16 mm² flexible with ferrules, and AWG 14–6 conductors. Meeting IEC/EN 61439 design verification standards, it delivers dependable electrical and mechanical performance. Certified to UL, CSA, IEC, and CE standards, the BK25/3-PKZ0 incoming terminal ensures compliance with international safety and performance requirements.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | BK25/3-PKZ0 |
| New Eaton Part Number | XTPAXIT |
| Old Moeller Part Number | BK25/3-PKZ0 |
| Product Type | Incoming Terminal |
| For Use With | PKZM0, PKE |
| Rated Operational Voltage (Ue) | 690 V |
| Rated Operational Current (In) | 63 A |
| Accessory Type | Connection clamp |
| Protection | Protected against accidental contact |
| Conductor Cross-Sections | 2.5–25 mm² stranded; 2.5–16 mm² flexible with ferrules; AWG 14–6 |
|---|---|
| Applicable Terminals | Terminals 1, 3, 5 |
| Heat Dissipation per Pole | 1.8 W |
| Total Equipment Heat Dissipation | 5.4 W |
| Design Verification | IEC/EN 61439 material, thermal, and mechanical requirements met |
| Standards Compliance | IEC60947-4-1, UL 508, CSA-C22.2 No. 14, CE marking |
| UL File Number | E36332 |
| CSA File Number | 165628 |
| Certifications | UL listed, CSA certified, CE |
| UL Category Control Number | NLRV |
| CSA Class Number | 3211-05 |
| Specially Designed for North America | No |
