Eaton / Moeller Series
63A, 3-Phase Commoning Link, fork connection, insulated, UL/CSA/IEC/CE

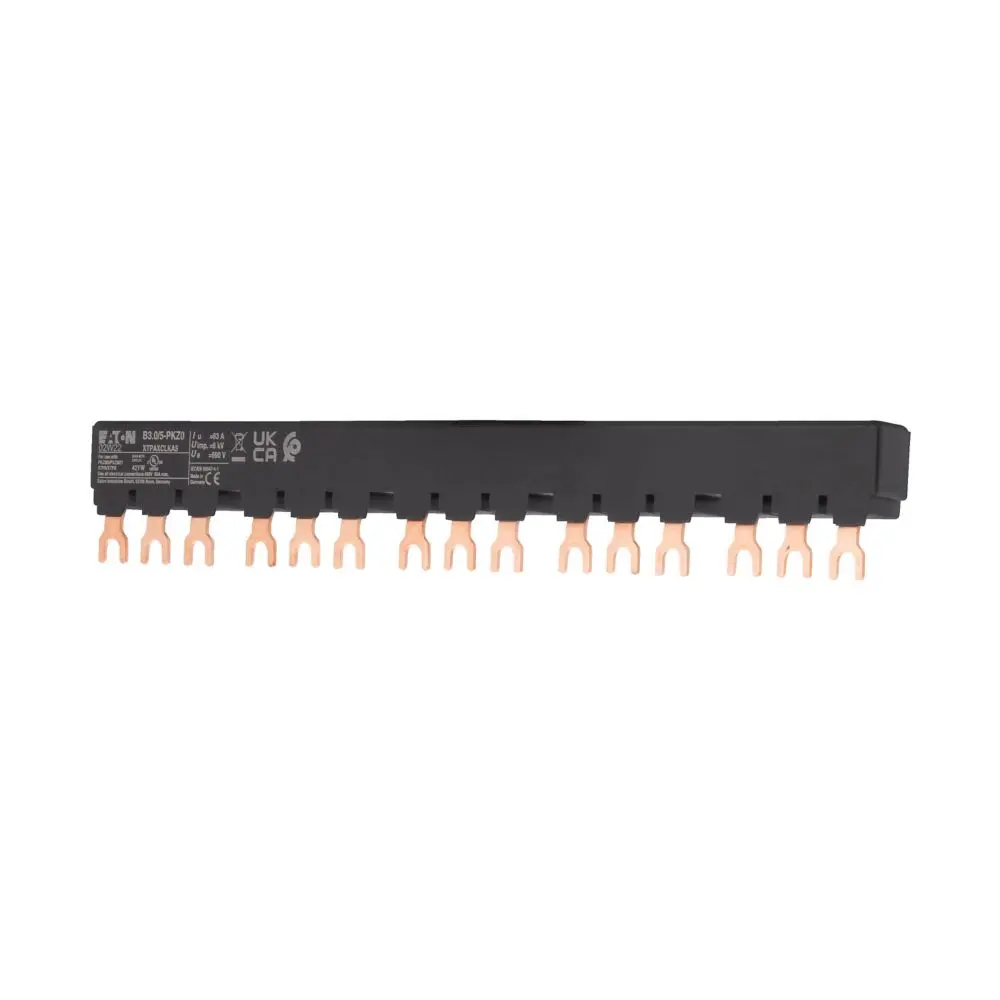

The Eaton/Moeller B3.0/5-PKZ0 3-Phase Commoning Link is designed for parallel power feed to up to five motor-protective circuit breakers. With a rated operational voltage of 690V AC and a continuous current capacity of 63A, it ensures reliable and safe power distribution in low-voltage systems. The link measures 225 mm in length with a 45 mm unit width, features fork-type electrical connections, and is fully insulated to protect against accidental contact. It is suitable for PKZM0 and PKE breakers without side-mounted auxiliaries or voltage releases. Certified to UL 508, CSA C22.2, IEC 60947-4-1, and CE standards, the B3.0/5-PKZ0 provides durable and compliant performance in industrial applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | B3.0/5-PKZ0 |
| New Part Number | XTPAXCLKA5 |
| Old Part Number | B3.0/5-PKZ0 |
| Product Type | 3-Phase Commoning Link |
| For Use With | PKZM0, PKE (without side-mounted auxiliaries or releases) |
| Number of Breakers Supported | 5 |

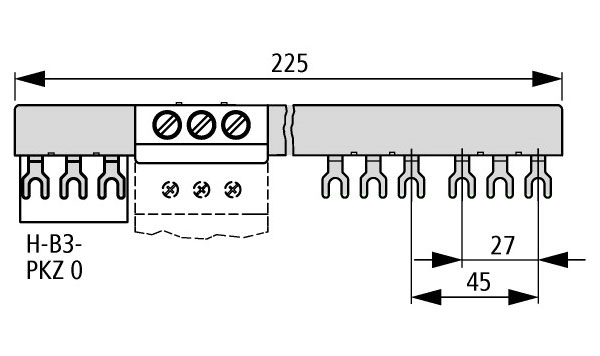

| Length | 225 mm |
| Unit Width | 45 mm |
| Product Range | Accessories |
| Number of Phases | 3 |
|---|---|
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Permanent Current (Iu) | 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| Connection Type | Fork |
| Insulated | Yes |
| Pitch Dimension | 45 mm |
| Cross Section | 0 mm² |
| Rated Short-Time Withstand Current (Icw) | 0 kA |
| Conditioned Rated Short-Circuit Current (Iq) | 0 kV |
| Suitable for Devices with N-Busbar | No |
| Suitable for Devices with Auxiliary Switch | No |
| Certifications | UL 508, CSA C22.2 No. 14, IEC 60947-4-1, CE |
| UL File No. | E36332 |
| CSA File No. | 98494 |
| UL Category Control No. | NLRV |
| CSA Class No. | 3211-06 |
| North America Certification | UL Listed, CSA Certified |
