Eaton / Moeller Series
63A, 3P, commoning link, short-circuit proof, UL/CSA/IEC

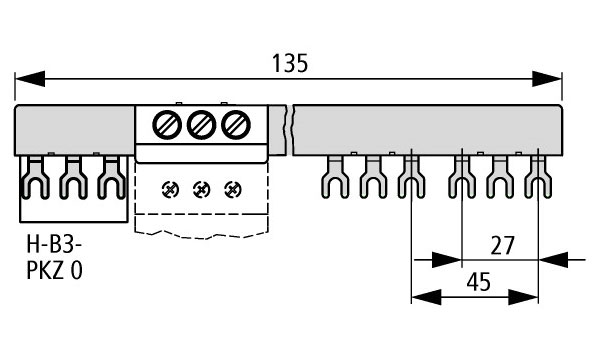

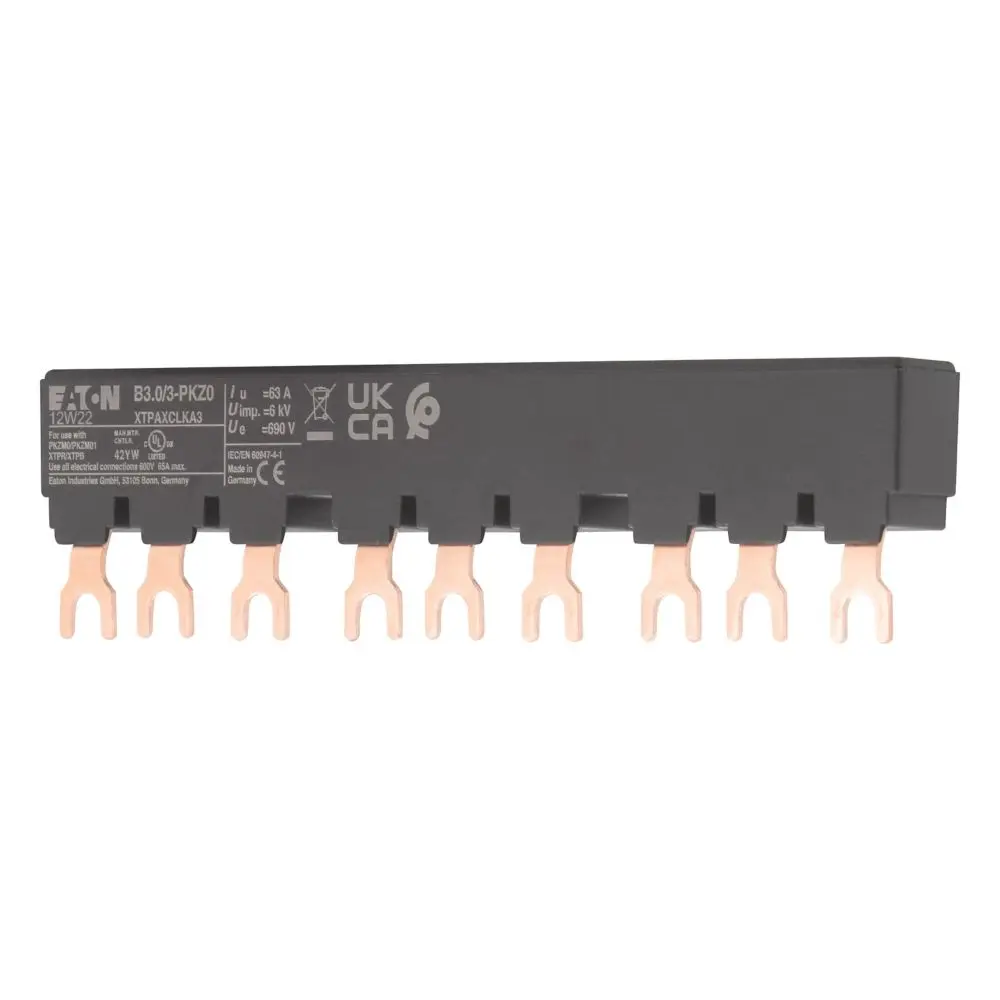

The Eaton/Moeller B3.0/3-PKZ0 is a three-phase commoning link designed for safe and efficient parallel power distribution to three motor-protective circuit breakers. With a rated operational voltage of 690V AC and current capacity of 63A, it provides short-circuit proof performance and is protected against accidental contact. The link features fork-type connections, measures 135 mm in length and 45 mm in width, and is compatible with PKZM0 and PKE breakers without side-mounted auxiliaries or shunt releases. Fully compliant with IEC/EN 61439, UL 508, CSA-C22.2, and CE marking, the B3.0/3-PKZ0 ensures robust, reliable, and safe integration into industrial motor protection systems.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | B3.0/3-PKZ0 |
| New Part Number | XTPAXCLKA3 |
| Old Part Number | B3.0/3-PKZ0 |
| Product Type | Three-phase Commoning Link |
| For Use With | PKZ0, PKE |
| Supported Devices | 3 motor-protective circuit breakers |
| Length | 135 mm |
| Unit Width | 45 mm |
| Connection Type | Fork |
| Insulated | Yes |
| Rated Operational Voltage (Ue) | 690 V AC |
|---|---|
| Rated Uninterrupted Current (Iu) | 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Overvoltage Category / Pollution Degree | III / 3 |
| Heat Dissipation Capacity | 0 W |
| Rated Surge Voltage | 6 kV |
| Rated Short-time Withstand Current (Icw) | 0 kA |
| Conditioned Short-circuit Current (Iq) | 0 kA |
| Operating Temperature Range | -25 °C to +55 °C |
| Certifications | UL 508, CSA-C22.2 No.14, IEC 60947-4-1, CE |
| North America Certification | UL Listed, CSA Certified |
