Eaton / Moeller Series
63A, 3P, busbar link, short-circuit proof, UL/CSA/IEC

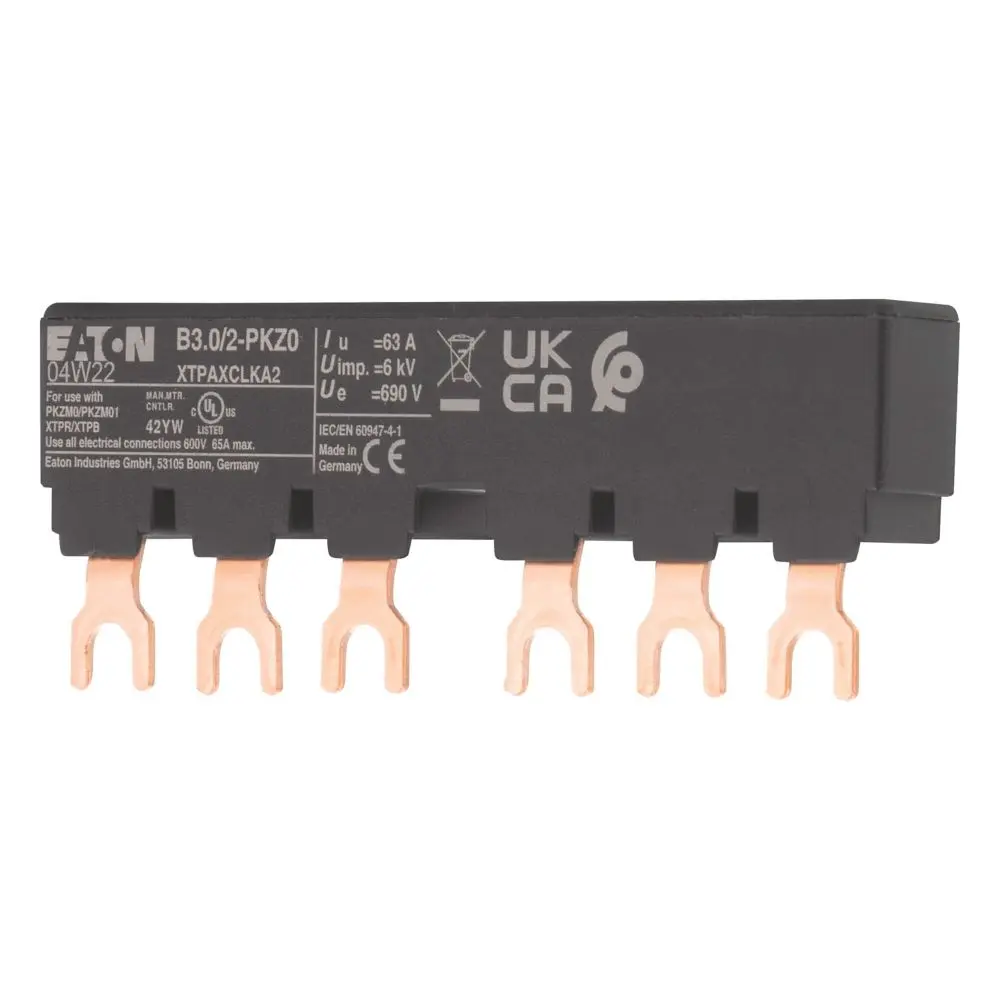

The Eaton/Moeller B3.0/2-PKZ0 is a three-phase busbar link accessory designed for parallel power feed to multiple motor-protective circuit breakers. Rated for up to 690V AC and 63A, it is short-circuit proof, protected against accidental contact, and built with fork-type connections for secure installation. With a compact unit width of 45 mm and length of 90 mm, it is suitable for PKZ0, PKE12, and PKE32 breakers (without side-mounted auxiliaries or releases). Compliant with IEC/EN 61439 and certified to UL 508 and CSA standards, the B3.0/2-PKZ0 provides a safe and efficient solution for commoning multiple devices on the same DIN rail.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | B3.0/2-PKZ0 |
| Catalog Number | 063961 |
| Alternate Catalog Number | XTPAXCLKA2 |
| Product Type | Three-phase Busbar Link |
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Uninterrupted Current (Iu) | 63 A |
| Application | Parallel power feed for PKZ0, PKE12, PKE32 |
| Number of Phases | 3 |
| Number of Devices Supported | 2 |

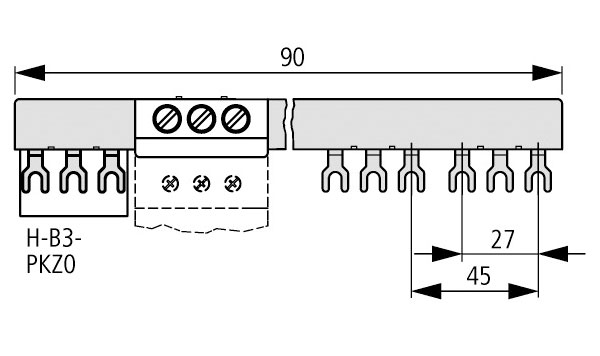

| Unit Width | 45 mm |
| Length | 90 mm |
| Connection Type | Fork |
| Insulated | Yes |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
|---|---|
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Permanent Current (Iu) | 63 A |
| Heat Dissipation per Pole (Pvid) | 1 W |
| Total Equipment Heat Dissipation (Pvid) | 3 W |
| Static Heat Dissipation (Pvs) | 0 W |
| Operating Temperature Range | -25 °C to +55 °C |
| Rated Surge Voltage | 6 kV |
| Certifications | UL 508, CSA-C22.2 No. 14, IEC 60947-4-1, CE |
| North America Certification | UL Listed, CSA Certified |
