Eaton / Moeller Series
1NO + 1NC, position switch, rounded plunger, slow-action, IP65, IEC

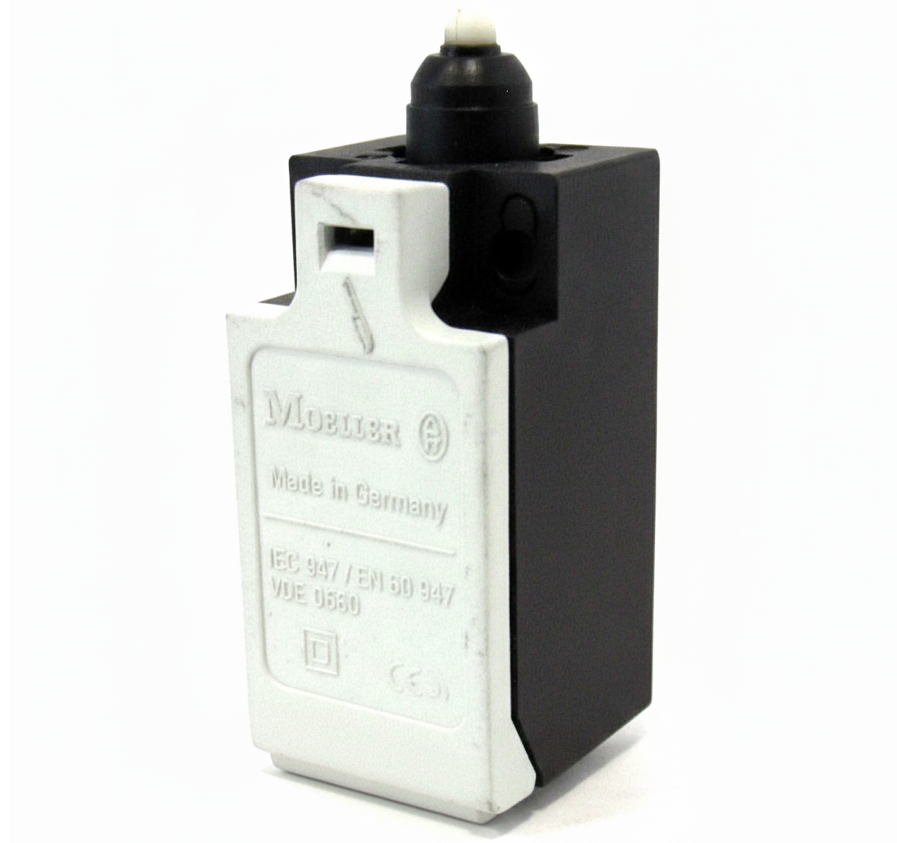

The Eaton Moeller ATR-11-1-I is a position switch equipped with one normally open (1NO) and one normally closed (1NC) contact configuration. It features a rounded plunger actuator and utilizes a slow-action, positive-opening contact mechanism, ensuring dependable operation in industrial automation systems. Designed to meet IEC/EN 60947-5-1 standards, the device offers high mechanical precision, repeat accuracy, and safety performance suitable for control and safety circuits. The robust insulated plastic housing and IP65 protection rating make the ATR-11-1-I ideal for use in harsh industrial environments.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Model | ATR-11-1-I |
| Product Type | Position Switch |
| Actuator Type | Rounded Plunger |
| Contact Configuration | 1NO + 1NC |
| Contact Type | Slow-action (Positive Opening) |
| Positive Opening Operation | Yes, to IEC/EN 60947-5-1 |
| Housing Material | Insulated Plastic |
| Housing Color | Grey Cover |
| Mounting Standard | EN 50047 |
| Mounting Position | Any |
| Basic Function | Position and Safety Position Switch |
| Degree of Protection | IP65 |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current (AC-15, 24 V) | 10 A |
| Rated Operational Current (AC-15, 230 V) | 6 A |
| Rated Operational Current (AC-15, 400 V) | 4 A |
| Rated Operational Current (DC-13, 24 V) | 10 A |
| Rated Operational Current (DC-13, 110 V) | 1 A |
| Rated Operational Current (DC-13, 220 V) | 0.5 A |
| Thermal Current (Ith) | 10 A |
| Short-Circuit Protection | 6 A gG/gL Fuse |
| Repetition Accuracy | 0.02 mm |
| Mechanical Life | 20 × 10⁶ operations |
| Operating Frequency | ≤ 6000 operations/hour |
| Actuating Force (Start/End of Stroke) | 1.0 N / 8.0 N |
| Max Operating Speed (DIN Cam) | 1 m/s (α = 0° / 30°) |
| Ambient Temperature Range | −25 °C to +70 °C |
| Contact Temperature (Max) | ≤ 100 °C |
| Terminal Capacity (Solid) | 1 × (0.75–2.5 mm²) / 2 × (0.75–1.5 mm²) |
| Terminal Capacity (Flexible with Ferrule) | 1 × (0.5–1.5 mm²) / 2 × (0.5–1.5 mm²) |
| Mechanical Shock Resistance | 25 g (standard-action) |
| Climatic Proofing | IEC 60068-2-78 / IEC 60068-2-30 (damp heat) |
| Design Verification | IEC/EN 61439 (thermal, corrosion, UV, and fire resistance) |
| Compliance Standards | IEC/EN 60947 | EN 50047 | IEC/EN 61439 |
| Certifications | CE |
