Eaton / Moeller Series
6A, 1NO+1NC, position switch, snap-action spring-rod actuator, IP65, UL 508/CSA/IEC CE

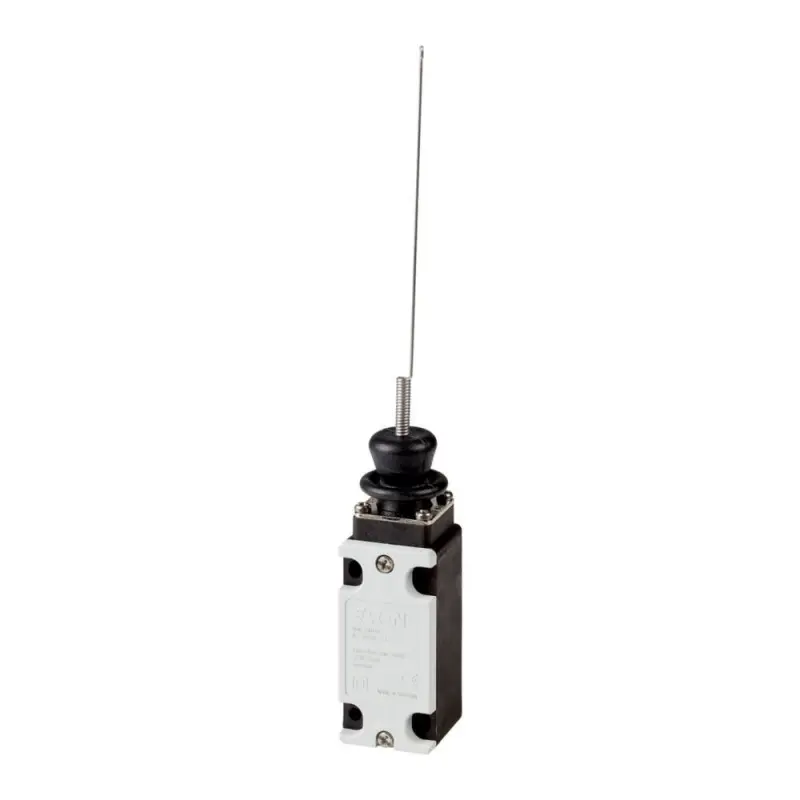

Eaton Moeller AT4/11-S/I/F is a narrow-body position switch featuring one normally open and one normally closed snap-action contact (1NO+1NC). It includes a flexible spring-rod actuator and an insulated plastic cuboid housing with IP65 protection. Designed for general industrial position sensing (not for safety switching), this unit operates within −25 °C to +70 °C and supports up to 600 V AC. The operating head can be rotated in 90° increments for multiple approach directions. The device is certified to UL 508, CSA C22.2 No. 14, and IEC/EN 60947-4-1 standards and bears CE marking.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Part No. | AT4/11-S/I/F |
| Catalog No. | 066943 |
| Product Type | Position switch (narrow body) |
| Contact Configuration | 1 N/O + 1 N/C (snap-action) |
| Forced Opening | Yes |
| Actuator | Spring-rod actuator (160 mm length) |
| Housing | Plastic, cuboid, insulated |
| Mounting Position | As required (head rotatable 90°) |
| Degree of Protection (IP) | IP65 |
| Dimensions | Width 40 mm; Height 83 mm |
| Suitable for Safety Functions | Yes |
| Rated Insulation Voltage Ui | 500 V |
|---|---|
| Rated Impulse Withstand Voltage Uimp | 6000 V AC |
| Max. Voltage Rating | 600 V AC |
| Rated Operational Current (AC-15 24 V) | 10 A |
| Rated Operational Current (AC-15 230 V) | 6 A |
| Rated Operational Current (AC-15 400 V) | 4 A |
| Rated Operational Current (DC-13 24 V) | 10 A |
| Rated Operational Current (DC-13 110 V) | 1 A |
| Rated Operational Current (DC-13 220 V) | 0.5 A |
| Short-Circuit Protection | 6 A gG/gL fuse (max 1 kA) |
| Actuating Force (begin/end of stroke) | 8 N / 20 N |
| Actuating Torque (rotary drives) | 0.3 Nm |
| Mechanical Life | 8 × 10⁶ operations |
| Repetition Accuracy | 0.02 mm |
| Ambient Operating Temperature | −25 °C to +70 °C |
| Connection Type | Screw terminals (1× 0.75–2.5 mm² solid; 2× 0.75–1.5 mm²) |
| NEMA Ratings | UL: 1, 4X; CSA: 1, 3R, 4, 4X, 12, 13 |
| Standards / Approvals | UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking |
| North America Certification | UL listed, CSA certified |
| UL File / Category | E29184 / NKCR |
| CSA File / Class | 12528 / 3211-03 |
| Suitable for | Branch circuits (industrial applications) |
