Eaton / Moeller Series
6A, 1NO+1NC, position switch, slow-action with forced opening, IP65, UL 508/CSA/IEC CE

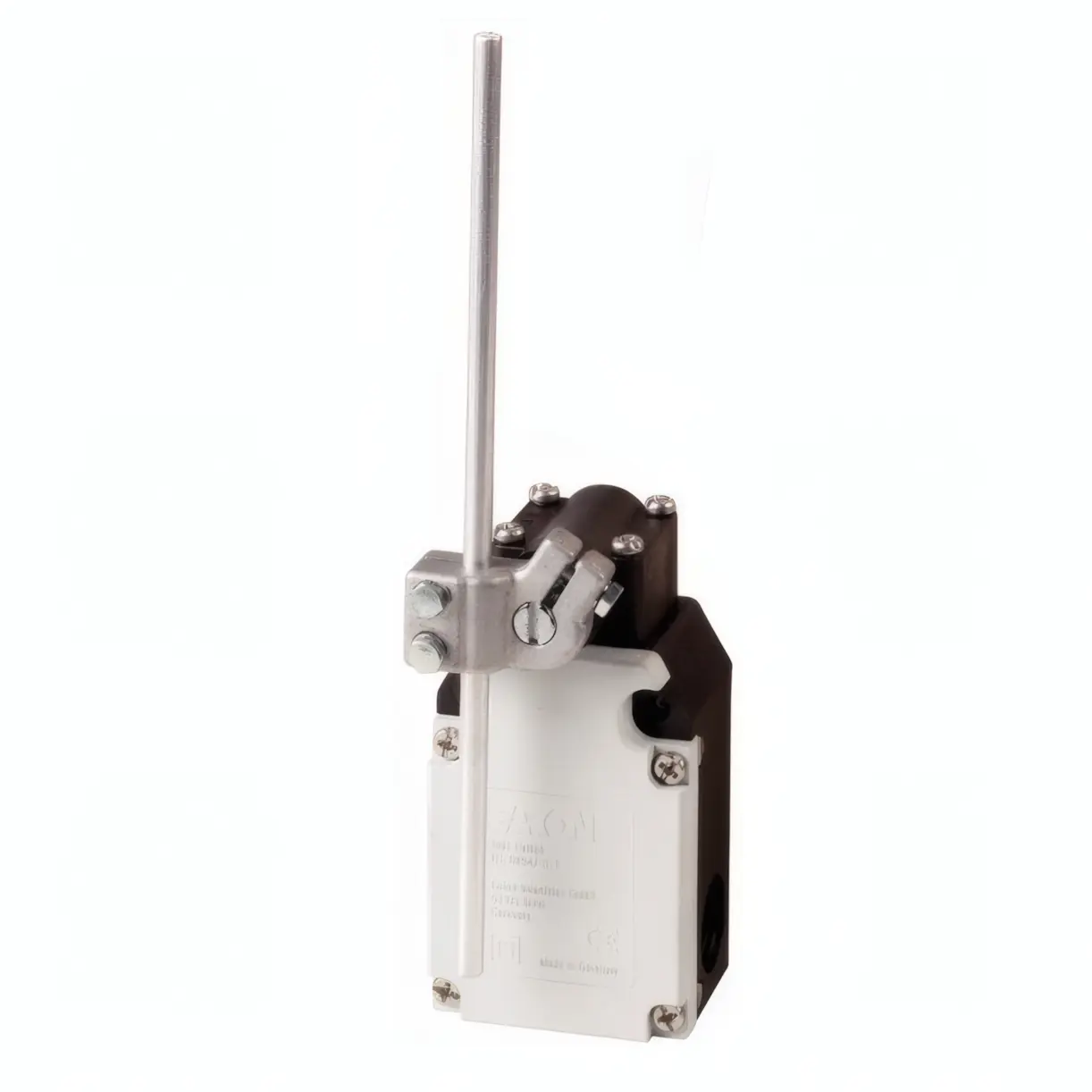

Eaton Moeller AT4/11-1/IA/H is a Type 1 safety position switch with a wide body and one normally open plus one normally closed slow-action contact set (1NO+1NC) featuring forced opening. It uses a square roller lever actuator in a plastic, cuboid housing and is suitable for safety functions. The device carries IP65 protection and NEMA enclosure ratings, and supports up to 600 V AC with specified making/breaking capabilities across AC-15 and DC-13 utilization categories. Operating ambient temperature is −25 °C to 70 °C. Certified to UL 508 and CSA C22.2 No.14 with CE marking; UL listed and CSA certified with file/category references provided.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Part No. | AT4/11-1/IA/H |
| Catalog No. | 021855 |
| Product Type | Safety position switch (Type 1) |
| Contact Configuration | 1 N/O + 1 N/C (slow-action) |
| Forced Opening | Yes |
| Actuator | Square roller lever |
| Housing | Plastic, cuboid |
| Degree of Protection (IP) | IP65 |
| Dimensions | Width 56 mm; Height 83 mm |
| Suitable for Safety Functions | Yes |
| Max. Voltage Rating | 600 V AC |
|---|---|
| Rated Operational Current (AC-15, 24 V) | 6 A |
| Rated Operational Current (AC-15, 230 V) | 6 A |
| Rated Operational Current (DC-13, 24 V) | 10 A |
| Rated Operational Current (DC-13, 125 V) | 1 A |
| Rated Operational Current (DC-13, 230 V) | 0.5 A |
| Electrical Connection | Cable entry, metric |
| Alignment of Control Element | Roller cam crossed |
| Ambient Operating Temperature | −25 °C to 70 °C |
| NEMA Ratings | UL: 1, 4X; CSA: 1, 3R, 4, 4X, 12, 13 |
| Approvals / Standards | UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking |
| North America Certification | UL listed, CSA certified |
| UL File / Category | E29184 / NKCR |
| CSA File / Class | 12528 / 3211-03 |
| Suitable for | Branch circuits |
