Eaton / Moeller Series
1NO + 1NC, position switch, adjustable roller lever, slow-action, IP65, IEC/EN 60947

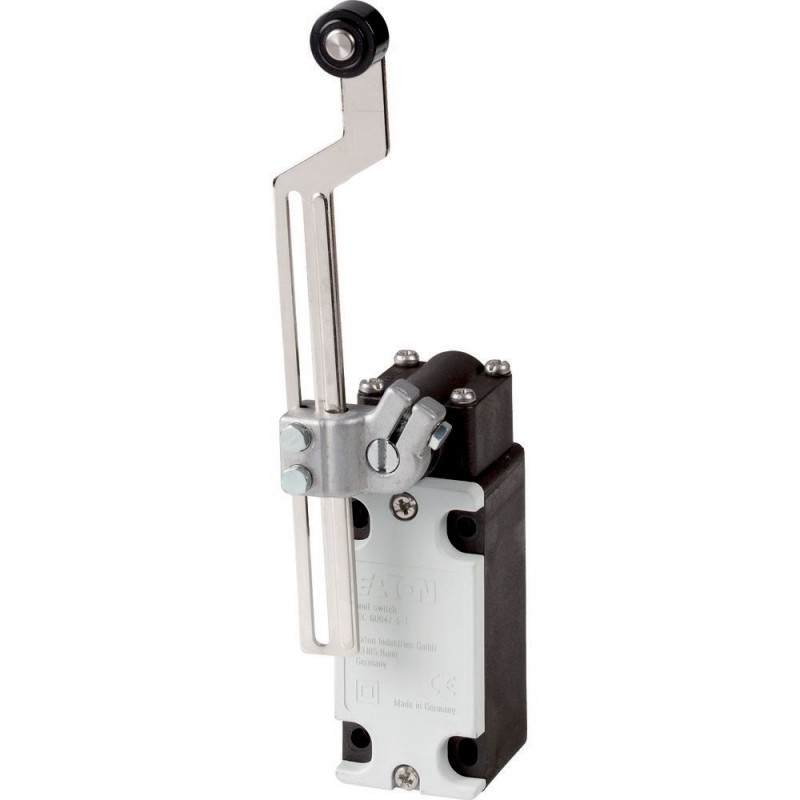

The Eaton Moeller AT4/11-1/I/V is a narrow-body position switch featuring one normally open (1NO) and one normally closed (1NC) contact configuration. It is equipped with an adjustable roller lever actuator and operates with a slow-action, positive-opening contact mechanism in accordance with IEC/EN 60947-5-1. Designed for durability and flexibility, the actuator head can be rotated at 90° intervals for use in multiple approach directions. The housing, constructed of insulated plastic, offers IP65 protection, ensuring resistance to dust, oil, and water. Ideal for industrial automation, machinery positioning, and safety interlock systems, this unit is approved to UL, CSA, and CE standards, and delivers long-lasting, precise performance in demanding environments.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Model | AT4/11-1/I/V |
| Catalog Number | 009990 |
| Product Type | Position Switch |
| Actuator Type | Adjustable Roller Lever |
| Contact Configuration | 1NO + 1NC |
| Contact Type | Slow-action (Positive Opening) |
| Positive Opening Operation | Yes, IEC/EN 60947-5-1 |
| Housing Material | Insulated Plastic |
| Mounting Standard | EN 50041 Form A |
| Mounting Position | Any (head rotatable 90° intervals) |
| Basic Function | Position and Safety Position Switch |
| Degree of Protection | IP65 |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Impulse Withstand Voltage (Uimp) | 6000 V |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current (AC-15, 24 V) | 10 A |
| Rated Operational Current (AC-15, 230 V) | 6 A |
| Rated Operational Current (AC-15, 400 V) | 4 A |
| Rated Operational Current (DC-13, 24 V) | 10 A |
| Rated Operational Current (DC-13, 110 V) | 1 A |
| Rated Operational Current (DC-13, 220 V) | 0.5 A |
| Thermal Current (Ith) | 10 A |
| Short-Circuit Protection | 6 A gG/gL Fuse |
| Rated Conditional Short-Circuit Current | 1 kA |
| Mechanical Life | 8 × 10⁶ operations |
| Repetition Accuracy | 0.02 mm |
| Operating Frequency | ≤ 6000 operations/hour |
| Actuating Force (Start/End of Stroke) | 8.0 N / 20.0 N |
| Actuating Torque (Rotary Drives) | 0.3 Nm |
| Max Operating Speed (DIN Cam) | 1.4 m/s (α = 30°, L = 125 mm) |
| Ambient Temperature Range | −25 °C to +70 °C |
| Contact Temperature (Max) | ≤ 100 °C |
| Terminal Capacity (Solid) | 1 × (0.75–2.5 mm²), 2 × (0.75–1.5 mm²) |
| Terminal Capacity (Flexible with Ferrule) | 1 × (0.5–1.5 mm²), 2 × (0.5–1.5 mm²) |
| Mechanical Shock Resistance | 5 g (standard-action) |
| Climatic Proofing | IEC 60068-2-78 / IEC 60068-2-30 (damp heat) |
| Design Verification | IEC/EN 61439 (thermal, corrosion, UV, and fire resistance) |
| Compliance Standards | IEC/EN 60947 | UL 508 | CSA-C22.2 No.14 | CE |
| Certifications | CE | UL Listed | CSA Certified |
| UL File No. | E29184 |
| CSA File No. | 12528 |
| UL/CSA Degree of Protection | UL: 1, 4X | CSA: 1, 3R, 4, 4X, 12, 13 |
