Eaton / Moeller Series
1NO + 1NC, position switch, rounded plunger, slow-action, IP65, IEC/EN 60947

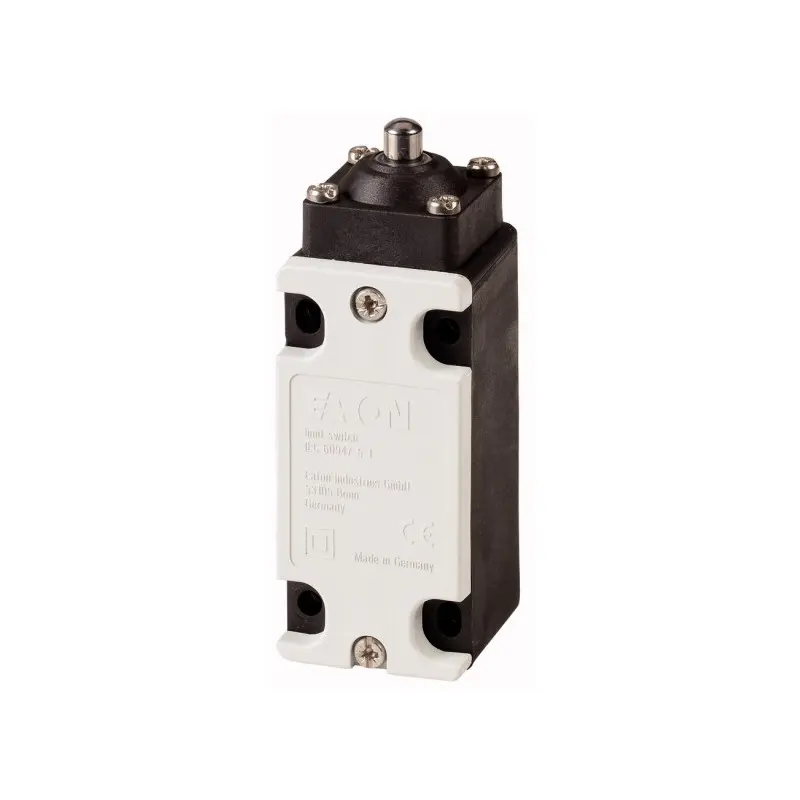

The Eaton Moeller AT4/11-1/I/S is a position switch with one normally open (1NO) and one normally closed (1NC) contact. It features a rounded plunger actuator and uses a slow-action, positive-opening mechanism, ensuring reliable mechanical performance and secure electrical disconnection for safety applications. The switch has a narrow plastic housing with IP65 protection, providing resistance to dust and water ingress. Designed per EN 50041 Form B, it meets IEC/EN 60947 and UL/CSA standards, making it suitable for global industrial automation, control, and safety systems.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Model | AT4/11-1/I/S |
| Catalog Number | 005244 |
| Product Type | Position Switch |
| Actuator Type | Rounded Plunger |
| Contact Configuration | 1NO + 1NC |
| Contact Type | Slow-action (Positive Opening) |
| Positive Opening Operation | Yes, IEC/EN 60947-5-1 |
| Housing Material | Insulated Plastic |
| Design Standard | EN 50041 Form B |
| Basic Function | Position and Safety Position Switch |
| Mounting Position | As required |
| Degree of Protection | IP65 |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Impulse Withstand Voltage (Uimp) | 6000 V |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current (AC-15, 24 V) | 10 A |
| Rated Operational Current (AC-15, 230 V) | 6 A |
| Rated Operational Current (AC-15, 400 V) | 4 A |
| Rated Operational Current (DC-13, 24 V) | 10 A |
| Rated Operational Current (DC-13, 110 V) | 1 A |
| Rated Operational Current (DC-13, 220 V) | 0.5 A |
| Thermal Current (Ith) | 10 A |
| Short-Circuit Protection | 6 A gG/gL Fuse |
| Mechanical Life | 8 × 10⁶ operations |
| Repetition Accuracy | 0.02 mm |
| Operating Frequency | ≤ 6000 operations/hour |
| Actuating Force (Start/End of Stroke) | 8.0 N / 20.0 N |
| Actuating Torque of Rotary Drives | 0.3 Nm |
| Max Operating Speed (DIN Cam) | 0.5 m/s |
| Ambient Temperature Range | −25 °C to +70 °C |
| Contact Temperature (Max) | ≤ 100 °C |
| Terminal Capacity (Solid) | 1 × (0.75–2.5 mm²) / 2 × (0.75–1.5 mm²) |
| Terminal Capacity (Flexible with Ferrule) | 1 × (0.5–1.5 mm²) / 2 × (0.5–1.5 mm²) |
| Mechanical Shock Resistance | 5 g (standard-action) |
| Climatic Proofing | IEC 60068-2-78 / IEC 60068-2-30 (damp heat) |
| Compliance Standards | IEC/EN 60947 | EN 50041 | IEC/EN 61439 |
| Certifications | CE | UL Listed | CSA Certified |
| UL File No. | E29184 |
| CSA File No. | 12528 |
| UL/CSA Degree of Protection | UL: 1, 4X | CSA: 1, 3R, 4, 4X, 12, 13 |
