Eaton / Moeller Series
1NO + 1NC, limit switch, roller lever, slow-action, IP65, NEMA 12/13, IEC/EN 60947

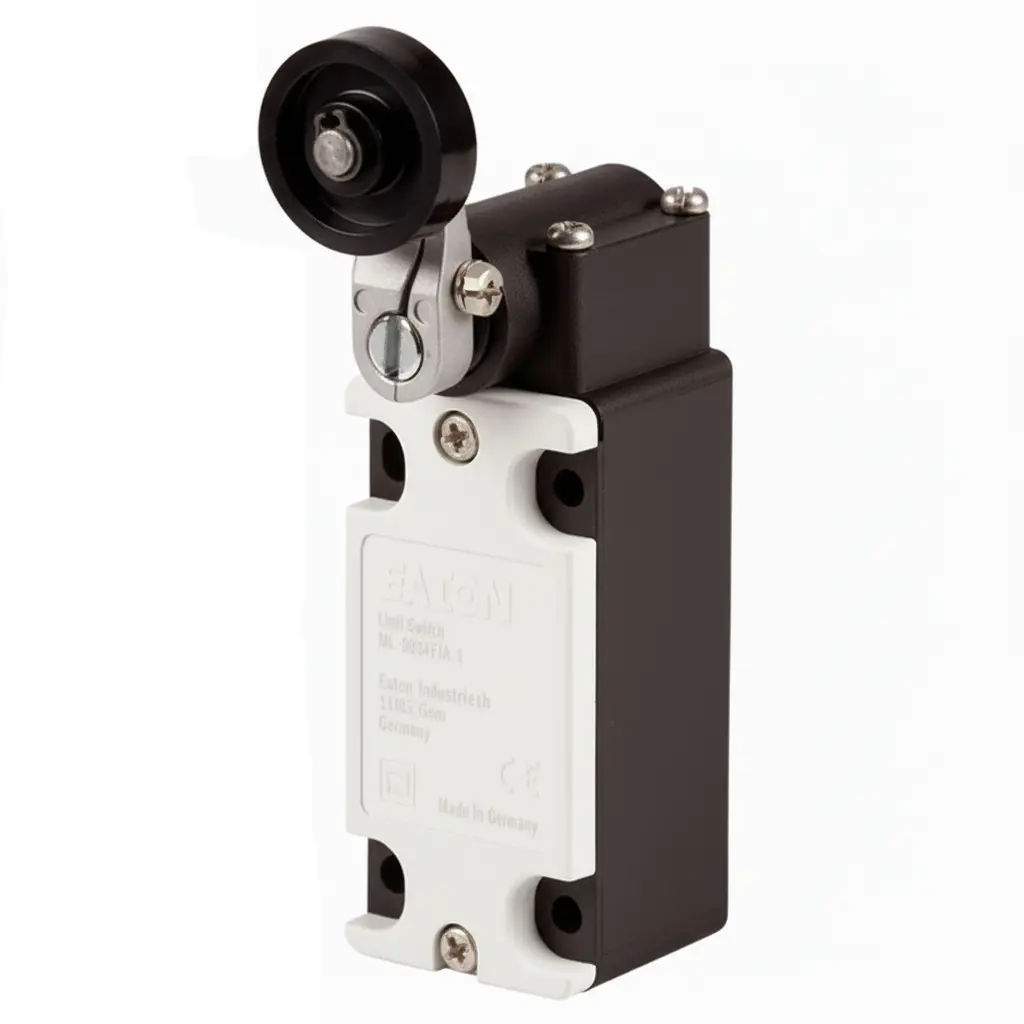

The Eaton Moeller AT4/11-1/I/R316 is a limit switch designed for demanding industrial applications. It features a roller lever actuator with slow-action, positive-opening contacts configured as 1 normally open (1NO) and 1 normally closed (1NC). Engineered for reliability and long service life, the AT4/11-1/I/R316 provides accurate position sensing and is well-suited for mechanical equipment, automation systems, and safety circuits. The device is constructed from durable insulated plastic housing and rated IP65 and NEMA 12/13, ensuring full protection against dust, oil, and water ingress. This model complies with IEC/EN 60947-5-1 and EN 50041 Form C, making it ideal for global use.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Model | AT4/11-1/I/R316 |
| Product Type | Limit Switch |
| Actuator Type | Roller Lever |
| Contact Configuration | 1NO + 1NC |
| Contact Type | Slow-action (Positive Opening) |
| Positive Opening Operation | Yes, IEC/EN 60947-5-1 |
| Housing Material | Insulated Plastic |
| Mounting Standard | EN 50041 Form C |
| Mounting Position | Any orientation (rotatable 90° intervals) |
| Basic Function | Position and Safety Position Switch |
| Degree of Protection | IP65 / NEMA 12, 13 |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Operational Voltage | 415 V |
| Impulse Withstand Voltage (Uimp) | 6000 V |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current (AC-15, 230 V) | 6 A |
| Rated Operational Current (AC-15, 400 V) | 4 A |
| Rated Operational Current (DC-13, 24 V) | 10 A |
| Thermal Current (Ith) | 10 A |
| Short-Circuit Protection | 6 A gG/gL Fuse |
| Mechanical Life | 8 × 10⁶ operations |
| Repetition Accuracy | 0.02 mm |
| Operating Frequency | ≤ 6000 operations/hour |
| Actuating Force | Approx. 3 N |
| Actuating Torque (Rotary Drives) | 0.3 Nm |
| Max Operating Speed (DIN Cam) | 0.5 m/s |
| Ambient Temperature Range | −25 °C to +70 °C |
| Contact Temperature (Max) | ≤ 100 °C |
| Terminal Capacity (Solid) | 1 × (0.75–2.5 mm²), 2 × (0.75–1.5 mm²) |
| Terminal Capacity (Flexible with Ferrule) | 1 × (0.5–1.5 mm²), 2 × (0.5–1.5 mm²) |
| Mechanical Shock Resistance | 5 g |
| Climatic Proofing | IEC 60068-2-78 / IEC 60068-2-30 (damp heat) |
| Housing Type | Cuboid, plastic |
| Compliance Standards | IEC/EN 60947 | EN 50041 | UL 508 | CSA-C22.2 No.14 |
| Certifications | CE | UL Listed | CSA Certified |
