Eaton / Moeller Series
1 early NO + 1 late NC, position switch, adjustable roller lever, positive opening, IP65, IEC

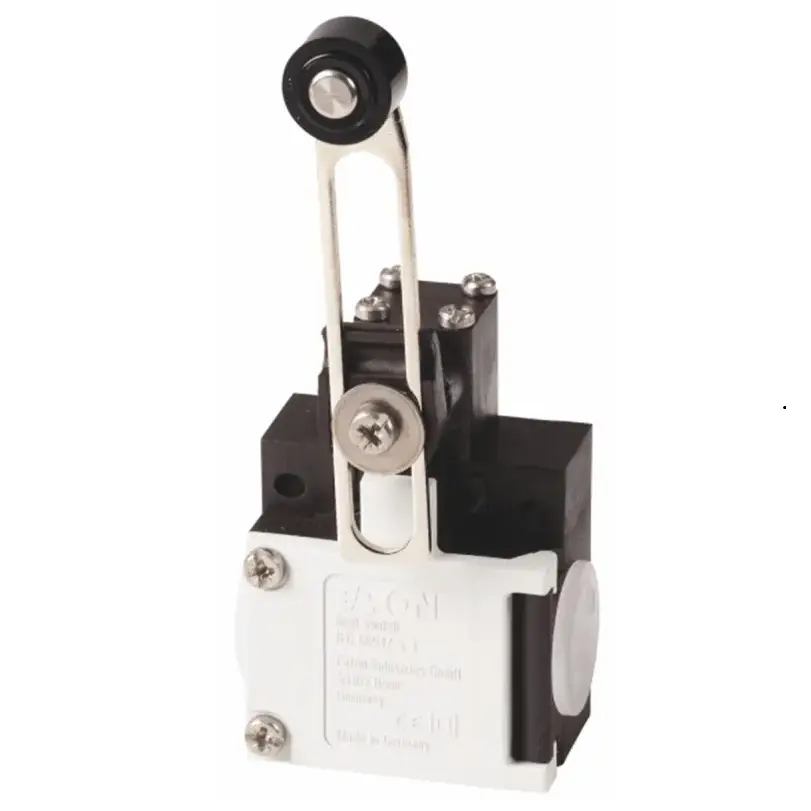

The Eaton Moeller AT0-11-2-IA/V is a position switch featuring one early-closing normally open (NO) and one late-opening normally closed (NC) contact for staggered switching. It uses a slow-action, positive-opening mechanism compliant with IEC/EN 60947-5-1, ensuring reliable and safe operation in control and safety systems. The unit comes with an adjustable roller lever actuator that allows precise mechanical alignment and flexibility. Built with a durable insulated plastic housing and rated IP65, this device offers dependable protection against dust and water ingress for use in industrial automation and machinery environments.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Model | AT0-11-2-IA/V |
| Catalog Number | 090648 |
| Product Type | Position Switch |
| Actuator Type | Adjustable Roller Lever |
| Contact Configuration | 1 early NO + 1 late NC |
| Contact Type | Slow-action (Positive Opening) |
| Housing Material | Insulated Plastic |
| Cover Color | Grey |
| Mounting Standard | EN 50047 |
| Mounting Position | Any |
| Head Rotation | 90° Intervals |
| Degree of Protection | IP65 |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current (AC-15) | 6 A @ 230 V AC |
| Rated Operational Current (DC-13) | 10 A @ 24 V DC |
| Thermal Current (Ith) | 10 A |
| Short-Circuit Protection | 6 A gG/gL Fuse |
| Mechanical Life | 20 × 10⁶ operations |
| Repetition Accuracy | 0.02 mm |
| Actuating Torque | 0.2 Nm |
| Actuating Force (Start/End of Stroke) | 8 N / 20 N |
| Operating Speed (DIN Cam) | 1.5 m/s (α = 30°) |
| Operating Frequency | ≤ 6000 operations/hour |
| Ambient Temperature Range | −25 °C to +70 °C |
| Terminal Capacity (Solid) | 1 × (0.75–2.5 mm²), 2 × (0.75–1.5 mm²) |
| Terminal Capacity (Flexible w/ Ferrule) | 1 × (0.5–1.5 mm²), 2 × (0.5–1.5 mm²) |
| Contact Temperature (Max) | ≤ 100 °C |
| Mechanical Shock Resistance | 25 g (standard-action) |
| Climatic Proofing | IEC 60068-2-78 / IEC 60068-2-30 (damp heat) |
| Standards Compliance | IEC/EN 60947 | IEC 60068 | EN 50047 |
| Certifications | CE |
