Eaton / Moeller Series
1 early NO + 1 late NC, position switch, rotary lever, positive opening, IP65, IEC

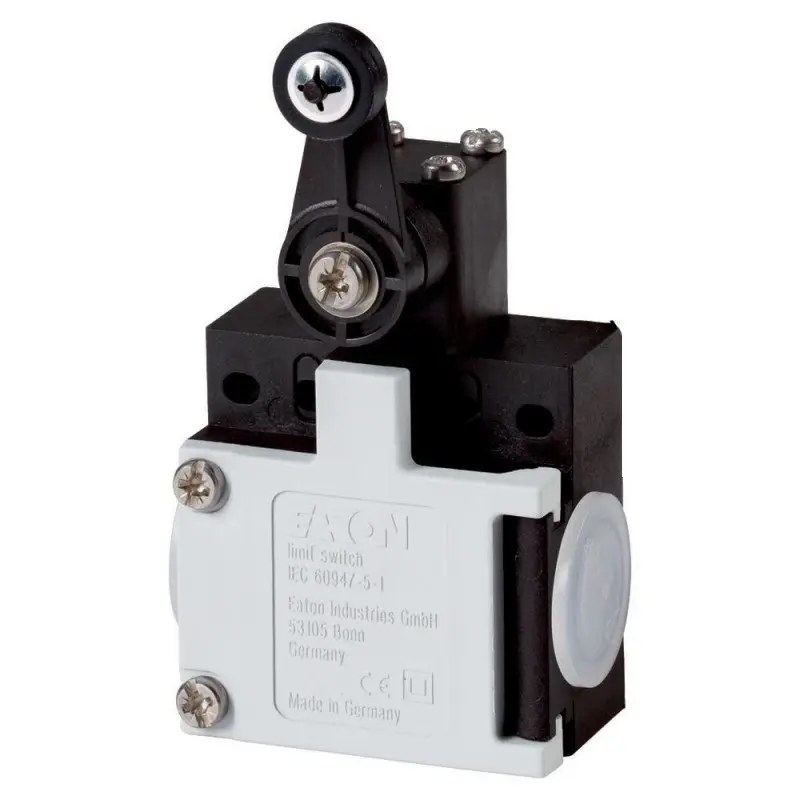

The Eaton Moeller AT0-11-2-IA/R is a position switch with a rotary lever actuator (Form A, EN 50047) and a 1 early-closing normally open (NO) + 1 late-opening normally closed (NC) contact arrangement. It features slow-action contacts with positive opening operation according to IEC/EN 60947-5-1, ensuring safe and reliable switching for automation and machinery applications. The insulated plastic housing and IP65 protection rating provide durable environmental resistance. Its operating head can be rotated in 90° increments, allowing flexible installation to suit different approach directions.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Model | AT0-11-2-IA/R |
| Catalog Number | 083529 |
| Product Type | Position Switch |
| Actuator Type | Rotary Lever (Form A) |
| Contact Configuration | 1 early NO + 1 late NC |
| Contact Type | Slow-action (Positive Opening) |
| Housing Material | Insulated Plastic |
| Cover Color | Grey |
| Connection Type | Screw Terminal |
| Mounting Standard | EN 50047 |
| Mounting Position | Any |
| Head Rotation | 90° Intervals |
| Degree of Protection | IP65 |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current (AC-15) | 6 A @ 230 V AC |
| Rated Operational Current (DC-13) | 10 A @ 24 V DC |
| Thermal Current (Ith) | 10 A |
| Short-Circuit Protection | 6 A gG/gL Fuse |
| Mechanical Life | 20 × 10⁶ operations |
| Repetition Accuracy | 0.02 mm |
| Actuating Torque | 0.2 Nm |
| Actuating Force (Start / End of Stroke) | 8 N / 20 N |
| Operating Speed (DIN Cam) | 1.5 m/s (at α = 30°) |
| Operating Frequency | ≤ 6000 operations/hour |
| Ambient Temperature Range | −25 °C to +70 °C |
| Terminal Capacity (Solid) | 1 × (0.75 – 2.5 mm²) / 2 × (0.75 – 1.5 mm²) |
| Terminal Capacity (Flexible w/ Ferrule) | 1 × (0.5 – 1.5 mm²) / 2 × (0.5 – 1.5 mm²) |
| Contact Temperature Limit | ≤ 100 °C |
| Mechanical Shock Resistance | 25 g (standard-action) |
| Standards Compliance | IEC/EN 60947 | IEC 60068 | EN 50047 |
| Certifications | CE |
