Eaton / Moeller Series
1 early NO + 1 late NC, position switch, rotary lever, staggered contacts, IP65, IEC

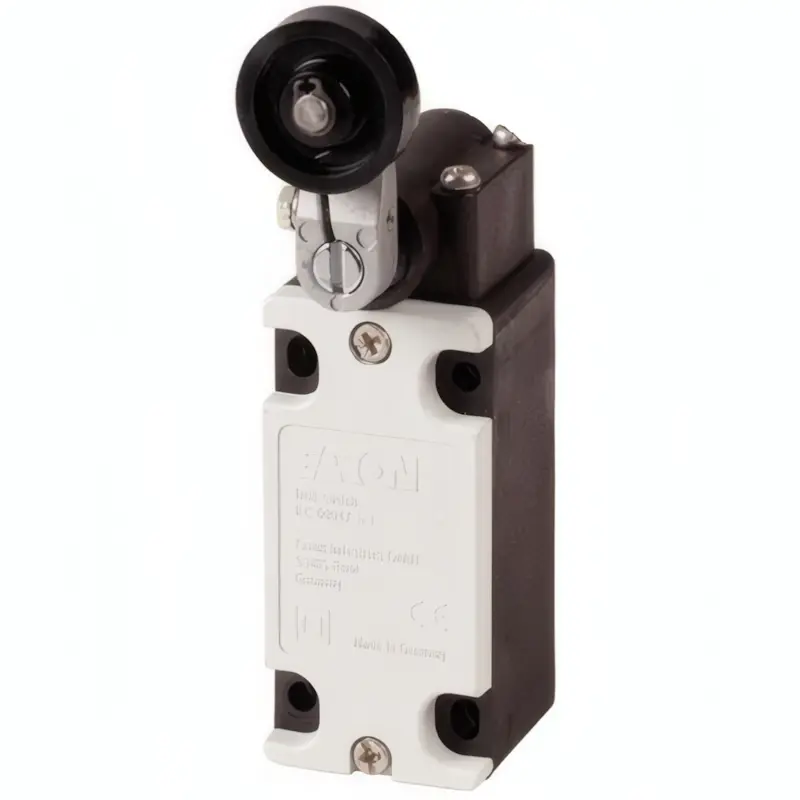

The Eaton AT0-11-2-I/R is a position switch designed with a rotary lever actuator and a 1 early-closing NO + 1 late-opening NC contact configuration. This staggered contact design provides reliable switching with precise timing, ideal for control and automation systems. The unit features slow-action positive-opening contacts in compliance with IEC/EN 60947-5-1, ensuring dependable performance even in safety-related circuits. The compact insulated plastic housing is rated IP65, offering protection against dust and moisture ingress. This model is particularly suitable for applications requiring angular movement detection or rotary actuation.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | AT0-11-2-I/R |
| Article Number | 062172 |
| Product Type | Position Switch |
| Actuator Type | Rotary Lever |
| Contact Configuration | 1 Early NO + 1 Late NC |
| Contact Type | Slow-action (Positive Opening) |
| Enclosure Material | Insulated Plastic |
| Mounting Standard | EN 50047 |
| Mounting Position | Any |
| Degree of Protection | IP65 |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current (AC-15) | 6 A @ 230 V AC |
| Rated Operational Current (DC-13) | 10 A @ 24 V DC |
| Thermal Current (Ith) | 10 A |
| Short-Circuit Protection | 6 A gG/gL Fuse |
| Mechanical Life | 20 × 10⁶ operations |
| Repetition Accuracy | 0.02 mm |
| Actuating Torque | 0.2 Nm |
| Operating Angle Range | Approx. 22°–54° |
| Operating Frequency | ≤ 6000 operations/hour |
| Ambient Temperature Range | −25 °C to +70 °C |
| Standards Compliance | IEC/EN 60947-5-1 | EN 50047 |
| Certifications | CE |
