Eaton / Moeller Series
2NC, position switch, roller plunger, IP65, IEC

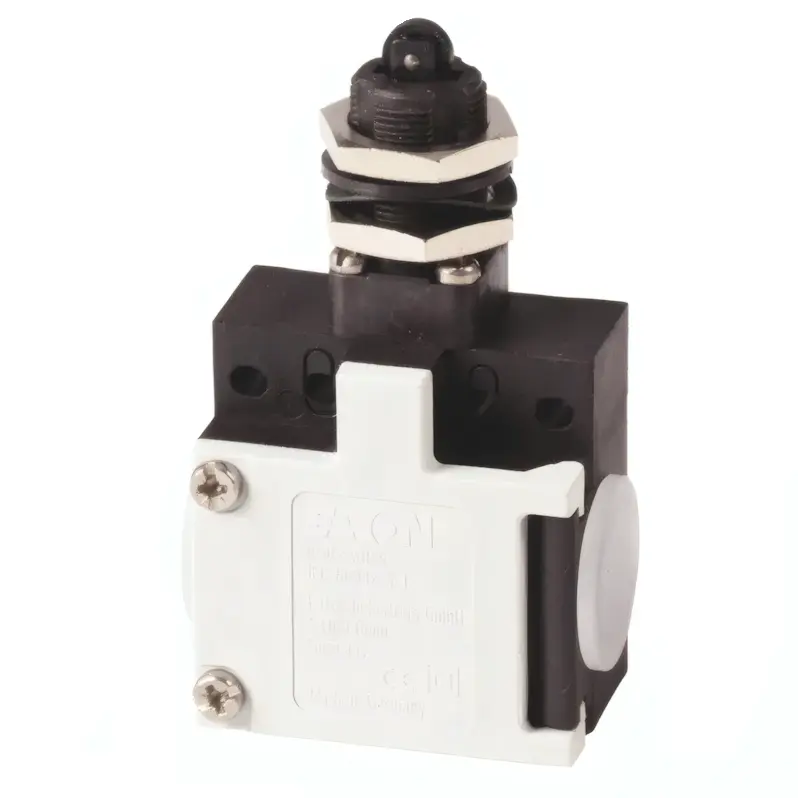

The Eaton AT0-02-1-IA/ZRS is a position switch with two normally closed (2NC) contacts, designed for reliable position detection and safety applications. It features a roller plunger actuator with center fixing and provides positive opening operation in compliance with IEC/EN 60947-5-1 safety standards. Built with a wide, insulated plastic housing and rated IP65, this switch ensures dependable performance in harsh industrial environments. Its precise actuation, long mechanical life, and robust design make it ideal for automation and machine control systems.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | AT0-02-1-IA/ZRS |
| Catalog Number | 019460 |
| Product Type | Position Switch |
| Actuator Type | Roller Plunger, Centre Fixing |
| Contact Configuration | 2NC |
| Contact Type | Slow-action (Positive Opening) |
| Enclosure Material | Insulated Plastic |
| Color | Grey Cover |
| Mounting Position | Any |
| Degree of Protection | IP65 |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current (AC-15) | 6 A @ 230 V AC |
| Rated Operational Current (DC-13) | 10 A @ 24 V DC |
| Thermal Current (Ith) | 10 A |
| Short-Circuit Protection | 6 A gG/gL Fuse |
| Mechanical Life | 20 × 10⁶ operations |
| Repetition Accuracy | 0.02 mm |
| Actuating Force | 1.0 N / 8.0 N (start/end of stroke) |
| Operating Frequency | ≤ 6000 operations/hour |
| Ambient Temperature Range | −25 °C to +70 °C |
| Terminal Capacity | 1 × (0.75–2.5 mm²) / 2 × (0.75–1.5 mm²) |
| Standards | IEC/EN 60947-5-1, IEC 60068 |
| Certifications | CE |
