Eaton / Moeller Series
Trip Indicator, 1NO+1NC, for PKZ2, includes short-circuit indicator, IEC/UL

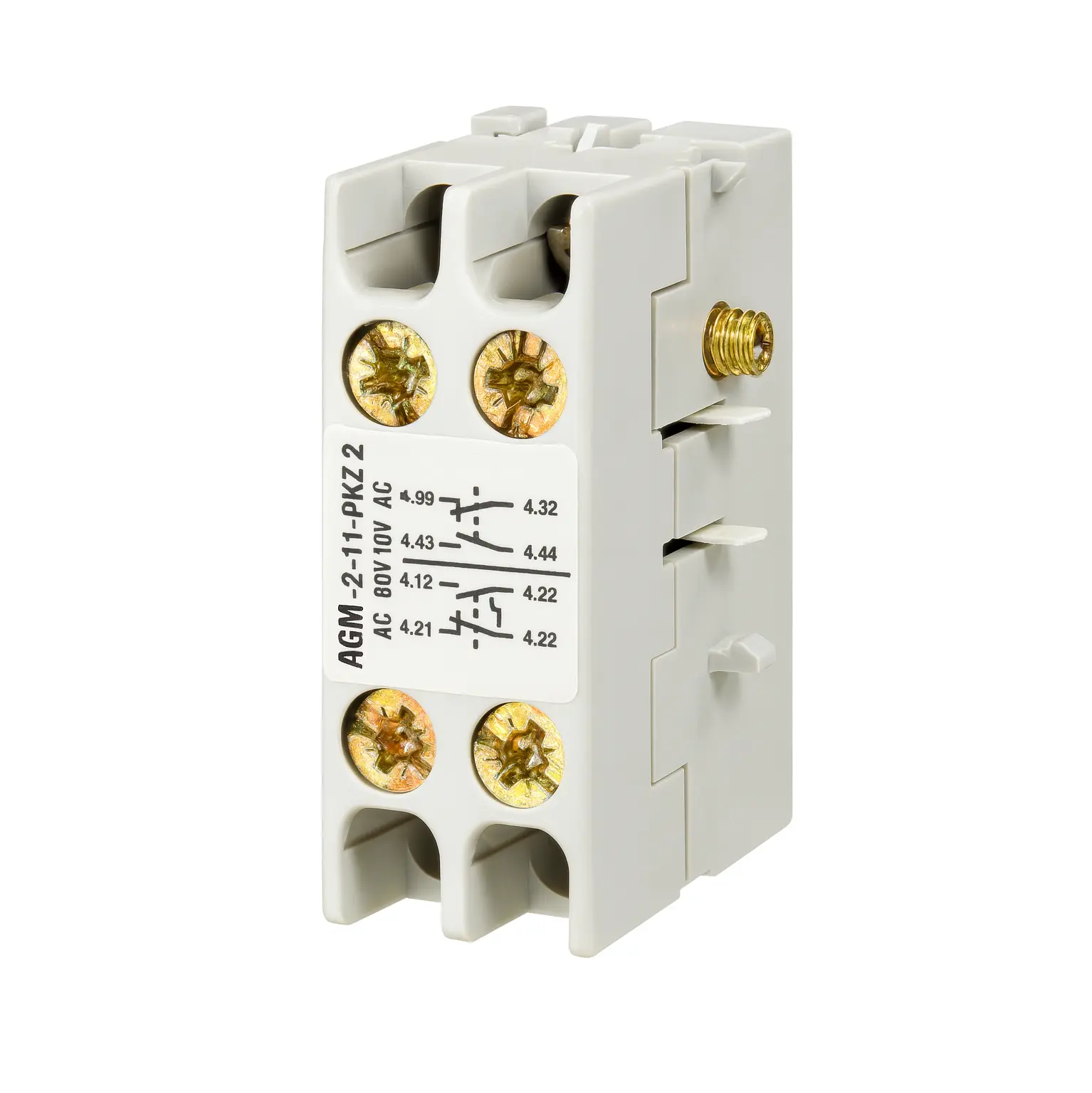

The Moeller AGM2-11-PKZ2 is a trip-indicating auxiliary contact designed for PKZ2 motor protective circuit breakers. It includes two contact sets: one that transfers on any trip condition and another that transfers only on a short-circuit trip. The unit provides 1 normally open (NO) and 1 normally closed (NC) contact for each function. It comes with a K-AGM-PKZ2 short-circuit indicator (red), while the AGM2-11-PKZ2 itself is identified by a green body and red arrow. This device is ideal for applications requiring differentiation between standard overload and short-circuit trips. It is compatible with NHI and NHI-S auxiliary contacts and can be mounted to PKZ2 motor protector combinations. PKZ2, ZM unit, and S-PKZ2 are sold separately. Certified to IEC and UL standards.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Moeller |
|---|---|
| Model | AGM2-11-PKZ2 |
| Product Type | Trip Indicating Auxiliary Contact |
| Mounting | Front Mount (on PKZ2 motor protector) |
| Contact Configuration (General Trip) | 1 Normally Open + 1 Normally Closed |
| Contact Configuration (Short Circuit Trip) | 1 Normally Open + 1 Normally Closed |
| Indicator Included | K-AGM-PKZ2 (Red Short-Circuit Indicator) |
| Body Identification | Green with Red Arrow |
| Compatibility | PKZ2, NHI, NHI-S Auxiliary Contacts |
| Trip Detection | General trip and short-circuit trip differentiation |
|---|---|
| Electrical Function | Signals status via separate contact sets |
| Trip Condition Contact Transfer | Transfers on any trip and separately on short-circuit trip |
| Mounting Position | Front mount on PKZ2 |
| Certifications | IEC, UL |
| Included Components | AGM2-11-PKZ2 contact block, K-AGM-PKZ2 indicator |
| Sold Separately | PKZ2, ZM Unit, S-PKZ2 |
