Eaton / Moeller Series

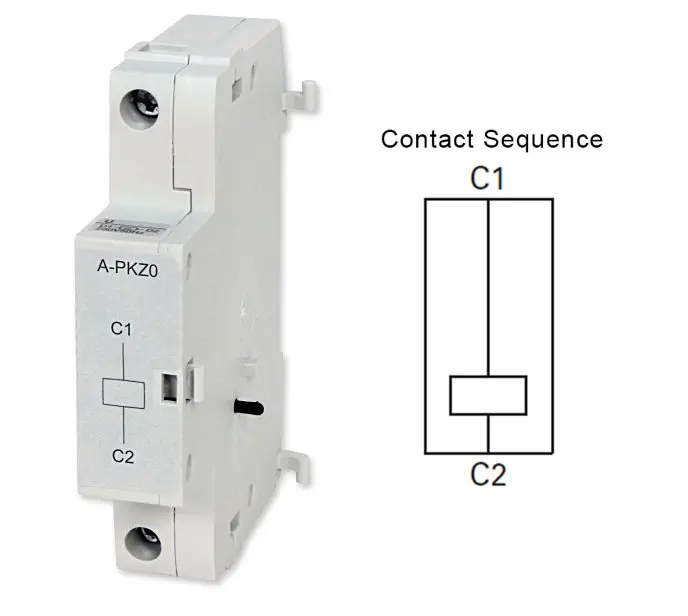

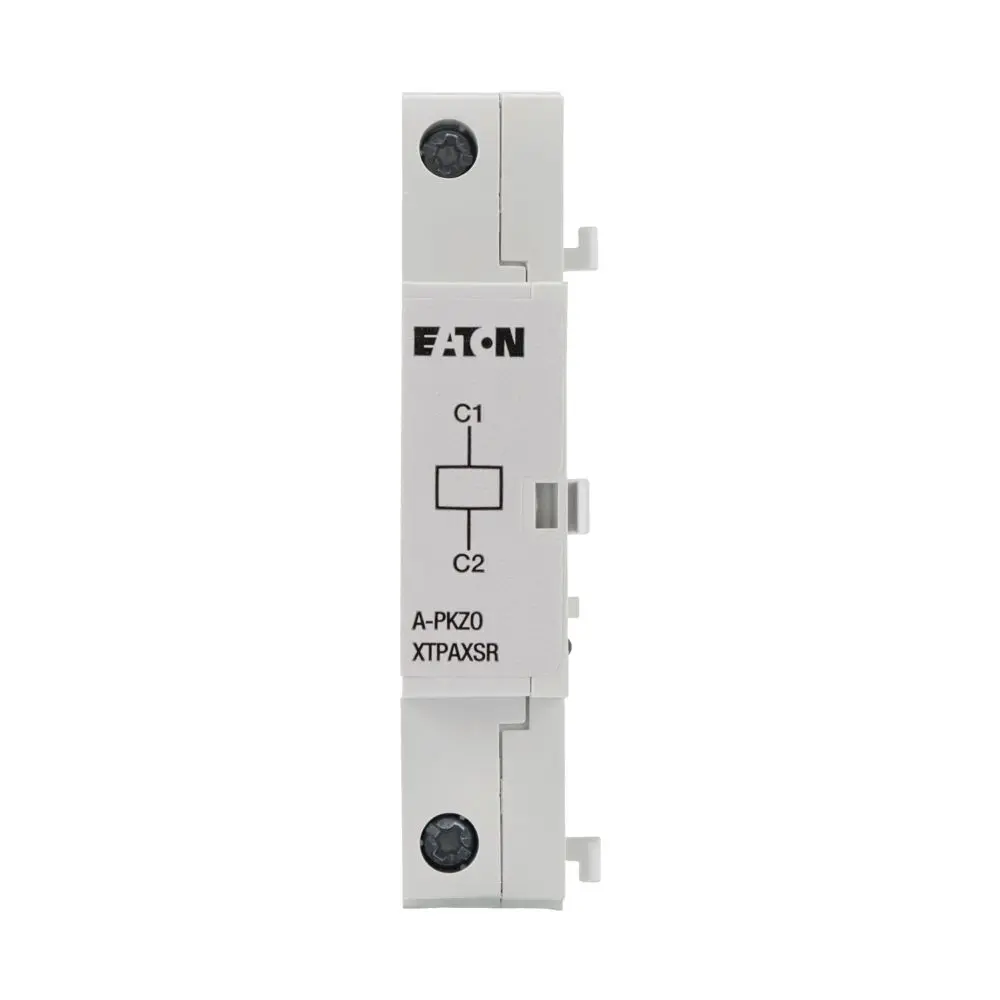

230V 50Hz Shunt Release, for PKZM0/PKE, UL/CSA/IEC
The Eaton A-PKZ0(230V50HZ) is a shunt release accessory designed for use with motor protective circuit breakers such as PKZM0, PKZM4, PKE, and related models. It operates on 230 V AC at 50 Hz and features screw terminal connections. This shunt release enables remote tripping of compatible breakers and complies with global standards including UL 508, CSA-C22.2 No. 14, and IEC 60947-4-1. With a compact footprint, standard voltage operation, and straightforward installation, it is ideal for motor protection circuits requiring reliable remote actuation.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | A-PKZ0(230V50HZ) |
| Eaton Part Number | XTPAXSR230V50H |
| Product Type | Shunt Release |
| Voltage Rating | 230 V AC 50 Hz |
| Voltage Type | AC (Standard Voltage) |
| Actuation | Remote Shunt Trip |
| Current Type | AC |
| Mounting Position | Left side of compatible breaker |
| Connection Type | Screw Terminals |
| Compatible With | PKZM0, PKZM4, PKZM0-T, PKZM01, PKM0, PKE |
| Terminal Capacity (mm²) | 1x(0.75–2.5), 2x(0.75–2.5) |
| Terminal Capacity (AWG) | 1x(18–14), 2x(18–14) |
| Operating Voltage Range (AC) | 0.7–1.1 × Us |
|---|---|
| Operating Voltage Range (DC) | 0.7–1.1 × Us (intermittent 5s) |
| Power Consumption (Pull-in) | 5 VA |
| Power Consumption (Holding) | 3 VA |
| Design Verification Standard | IEC/EN 61439 |
| Heat Dissipation (Static) | 0.5 W |
| Heat Dissipation Capacity | 0 W |
| Voltage Type for Actuation | AC |
| Rated Control Supply Voltage @ 50 Hz | 230 V |
| Rated Control Supply Voltage @ 60 Hz / DC | Not Supported |
| Type of Electric Connection | Screw Connection |
| Suitable for Power Circuit Breaker | No |
| Suitable for Motor Safety Switch | Yes |
| UL File Number | E36332 |
| CSA File Number | 165628 |
| UL Category Control Number | NLRV |
| Standards | UL 508, CSA C22.2 No. 14, IEC 60947-4-1, CE |
| North America Certification | UL Listed, CSA Certified |
