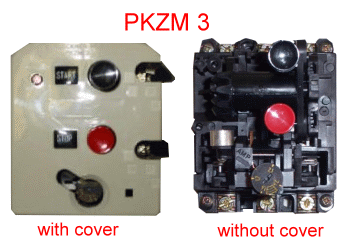

Moeller PKZM3 Thermal Magnetic Circuit Breaker Index

The older styles PKZM3-xx are now retired and replaced with the upgraded

PKZ2 series.

When upgrading to the new PKZ 2 series the following considerations apply

1. The new PKZ2 series has a rotary operator knob instead of the older style stop and start button.

2. If any mechanical object was used to hit the stop button (as used in many wood working machines for end of travel) the system must be changed to use a limit switch and shunt trip. Call your Kmparts.com specialist for more info! No accessories from the PKZ3 series will work with the new PKZ2 series.

Old Style PKZM3	New Style PKZ2/ZM-xx	LOAD		RANGE
	PKZ2 with Trip Module	Hp @ 230	Hp @ 460	Thermal Amps	Magnetic Amps
				Low Adjust
				High Adjust
PKZM3-0.6	PKZ2/ZM-0.6	-	-	0.4	5
				0.6	8
PKZM3-1.0	PKZ2/ZM-1	-	.5	0.6	8
				1	14
PKZM3-1.6	PKZ2/ZM-1.6	-	.75	1	14
				1.6	22
PKZM3-2.5	PKZ2/ZM-2.4	.5	1	1.6	20
				2.4	35
PKZM3-4	PKZ2/ZM-4	1	2	2.4	35
				4	55
PKZM3-6.3	PKZ2/ZM-6	1.5	3	4	50
				6	80
PKZM3-10	PKZ2/ZM-10	3	5	6	80
				10	140
PKZM3-16	PKZ2/ZM-16	5	10	10	130
				16	220
PKZM3-25	PKZ2/ZM-25	7.5	20	16	200
				27	350
PKZM3-32	PKZ2/ZM-32	10	20	24	275
				32	425
PKZM3-40	PKZ2/ZM-40	15	30	32	350
				42	500
