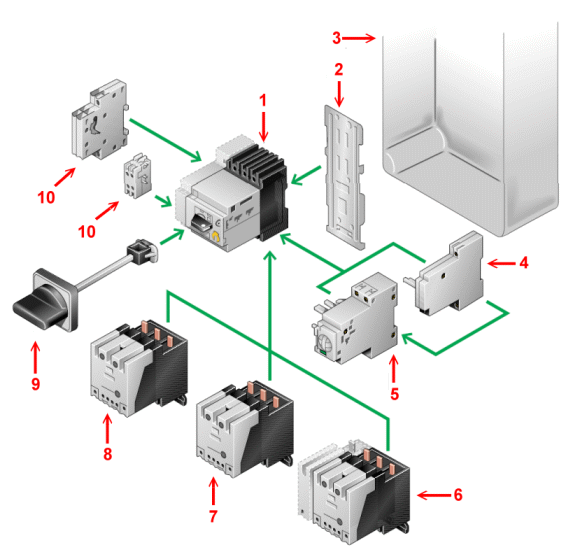

Use the links below to visit the pages for
these parts.
| 1. |
PKZ2 Manual
Motor Protector
Plug in trip modules can be removed/installed without disturbing power source. Removal provides visible open circuit gap between disconnect and contactor portions. Click here to view Trip Modules with overload Trip , OR click here to view Trip Modules with overload relay function, with Hand/Auto Position . |
| 2. | Clip Plate |
| 3. | Enclosures |
| 4. | Voltage Release |
| 5. | Remote Control Drive |
| 6. | Contact Module |
| 7. | High Capacity Contact Module |
| 8. | Current Limiter |
| 9. | Door coupling rotary handle and Plug in Extension Shaft |
| 10. | Auxiliary contacts |
