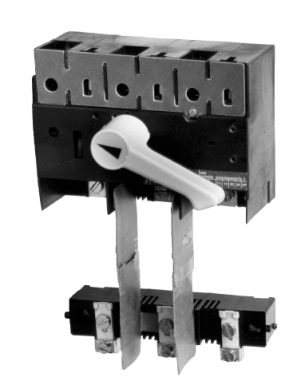

Eaton Moeller P2 Series
Disconnect Switch Overview
Fused and Non-Fusible Disconnect Switches - Open Type
| Part Name | Continuous Current | 50-60 Hz | Remarks | |
| 230V HP | 460V HP | |||
| P2-30-CNA | 30 | 10 | 20 | Operating Handle Not Included |
| P2-30-NA | ||||
| P2-30 | ||||
| P2-60-CNA | 60 | 20 | 40 | For molded case switches up to 600A |
| P2-60-NA | ||||
| P2-60 | ||||
| P2-100-CNA | 90 | 40 | 60 | |
| P2-100-NA | ||||
| P2-100 | ||||
| Moeller Part Number | Moeller Part Name | Description |
|---|---|---|
| 105983 | P2-100/F-C110-CNA | DISCONNECT SWITCH |
| 105984 | P2-100/F-C310-CNA | DISCONNECT SWITCH |
| 105979 | P2-100-CNA | DISCONNECT SWITCH |
| 105989 | P2-30/F-C13-CNA | DISCONNECT SWITCH |
| 105990 | P2-30/F-C16-CNA | DISCONNECT SWITCH |
| 105991 | P2-30/F-C23-CNA | DISCONNECT SWITCH |
| 105992 | P2-30/F-C26-CNA | DISCONNECT SWITCH |
| 105993 | P2-30/F-C33-CNA | DISCONNECT SWITCH |
| 166968 | P2-30/F-C36-CNA | DISCONNECT SWITCH |
| 166971 | P2-30/F-C38-CNA | DISCONNECT SWITCH |
| 105994 | P2-30/F-C43-CNA | DISCONNECT SWITCH |
| 105995 | P2-30/F-C46-CNA | DISCONNECT SWITCH |
| 105987 | P2-30-CNA | DISCONNECT SWITCH |
| 106000 | P2-60/F-C110-CNA | DISCONNECT SWITCH |
| 106001 | P2-60/F-C16-CNA | DISCONNECT SWITCH |
| 106002 | P2-60/F-C26-CNA | DISCONNECT SWITCH |
| 106003 | P2-60/F-C310-CNA | DISCONNECT SWITCH |
| 106004 | P2-60/F-C43-CNA | DISCONNECT SWITCH |
| 106005 | P2-60/F-C46-CNA | DISCONNECT SWITCH |
| 105998 | P2-60-CNA | DISCONNECT SWITCH |
