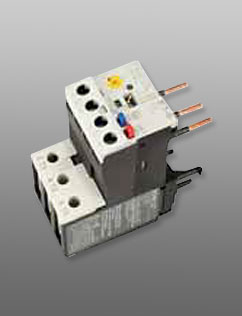

XT Electronic Overload Relays for Direct Mount to NEMA Space-Savings Contactors

NEMA Size	Foe Use With Contactor	Overload Range (Amps)	Contact Sequence	Frame Size	Auxiliary Contact Configuration	Part Number
0	CN13BN010_	0.35–1.65		45mm	NO-NC	XTOE1P6CCS
		1–5				XTOE005CCS
		4–20				XTOE020CCS
1C	CN13CN010_	0.35–1.65		45mm	NO-NC	XTOE1P6CCS
		1–5				XTOE005CCS
		4–20				XTOE020CCS
		9–45				XTOE045CCS
1	CN13DN000_	1–5		55mm	NO-NC	XTOE005DCS
		4–20				XTOE020DCS
		9–45				XTOE045DCS
2	CN13GN000_	9–45		55mm	NO-NC	XTOE045DCS
		20–100				XTOE100DCS
3	CN13KN000_	20–100		55mm	NO-NC	XTOE100GCS
4	CN13MN000_	35–175		110mm	NO-NC	XTOE175GCS

XTOE for Direct Mount to NEMA Size

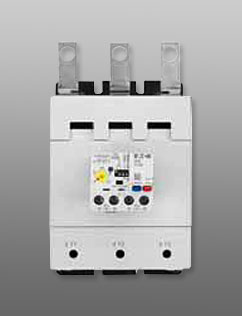

XT Electronic Overload Relays with Ground Fault for Direct Mount to
NEMA Space-Savings Contactors

NEMA Size	Foe Use With Contactor	Overload Range (Amps)	Contact Sequence	Frame Size	Auxiliary Contact Configuration	Part Number
0	CN13BN010_	0.35–1.65		45mm	NO-NC	XTOE1P6CCS
		1–5				XTOE005CCS
		4–20				XTOE020CCS
1C	CN13CN010_	0.33–1.65		45mm	NO-NC	XTOE1P6CCS
		1–5				XTOE005CCS
		4–20				XTOE020CCS
		9–45				XTOE045CCS
1	CN13DN000_	0.33–1.65		55mm	NO-NC	XTOE1P6DGS
		1–5				XTOE005DGS
		4–20				XTOE020DGS
		9–45				XTOE045DGS
2	CN13GN000_	9–45		55mm	NO-NC	XTOE045DGS
		20–100				XTOE100DGS
3	CN13KN000_	20–100		55mm	NO-NC	XTOE100GGS
4	CN13MN000_	35–175		110mm	NO-NC	XTOE175GGS

1–5A OL with CTs

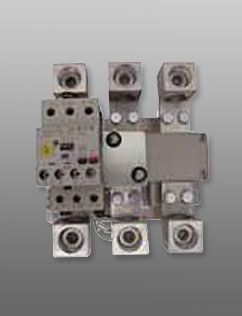

XT Electronic Overload Relays for use with Size 5 NEMA Space-Savings Contactors
