Thermo magnetic, Release 3-Pole
Protection of Systems and Cables
Adjustable thermal trip allows closer match to equipment requirements
Economical solution for applications to 125@480V/277V AC
Smallest footprint of any Moeller NZM Circuit Breaker
Breaker Conforms to UL/CSA and IEC Regulations
85 kA 240 V AC
35 kA 480V/277VAC
| Article Number | Part Number | Rated current = rated uninterrupted current In = Iu |
Thermal Trip | Magnetic Trip |
| 281570 | NZMN1-A20-NA | 20 | 15 - 20 | 350 |
| 281571 | NZMN1-A25-NA | 25 | 20 - 25 | |
| 281572 | NZMN1-A32-NA | 32 | 25 - 32 | |
| 274237 | NZMN1-A40-NA | 40 | 32 - 40 | 320 - 400 |
| 274239 | NZMN1-A50-NA | 50 | 40 - 50 | 300 - 500 |
| 274240 | NZMN1-A63-NA | 63 | 50 - 63 | 380 - 630 |
| 274241 | NZMN1-A80-NA | 80 | 63 - 80 | 480 - 800 |
| 274242 | NZMN1-A100-NA | 100 | 80 - 100 | 600 - 1000 |
| 281573 | NZMN1-A125-NA | 125 | 100 - 125 | 750 - 1250 |
Thermo magnetic, Release 3-Pole
Protection of Systems and Cables
Fixed overload releases
Fixed Thermal trip prevents altered settings
Economical solution for applications to 125@480V/277V AC
Smallest footprint of any Moeller NZM Circuit Breaker
Breakers Conform to UL/CSA and IEC Regulations
85 kA 240V AC
35 kA 480V/277V AC
| Article Number | Part Number | Rated current = rated uninterrupted current In = Iu |
Thermal Trip | Magnetic Trip |
| 281564 | NZMN1-AF15-NA | 15 | 15 | 350 |
| 281565 | NZMN1-AF20-NA | 20 | 20 | |
| 281566 | NZMN1-AF25-NA | 25 | 25 | |
| 281567 | NZMN1-AF30-NA | 30 | 30 | |
| 274220 | NZMN1-AF35-NA | 35 | 35 | 320 - 400 |
| 274223 | NZMN1-AF40-NA | 40 | 40 | |
| 274230 | NZMN1-AF45-NA | 45 | 45 | 300 - 500 |
| 274231 | NZMN1-AF50-NA | 50 | 50 | |
| 274232 | NZMN1-AF60-NA | 60 | 60 | 380 - 630 |
| 274233 | NZMN1-AF70-NA | 70 | 70 | 480 - 800 |
| 274234 | NZMN1-AF80-NA | 80 | 80 | |
| 274235 | NZMN1-AF90-NA | 90 | 90 | 600 - 1000 |
| 274236 | NZMN1-AF100-NA | 100 | 100 | |
| 281568 | NZMN1-AF110-NA | 110 | 110 | 750 - 1250 |
| 281569 | NZMN1-AF125-NA | 125 | 125 |
Magnetic 3 pole short-circuit releases
Short-circuit protection
Terminals Standard, terminal screws as accessories
| Article Number | Part Number | Rated current = rated uninterrupted current In = Iu |
Short Circuit Releases |

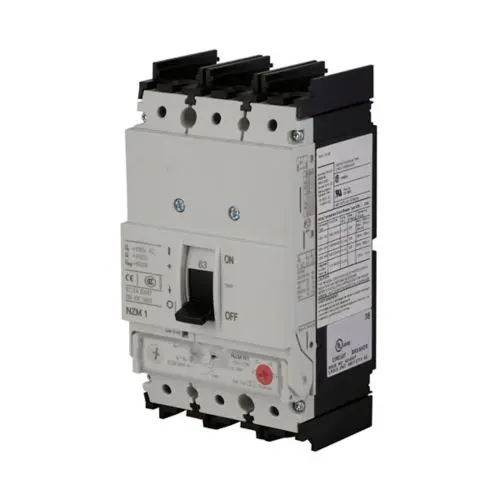

| 265731 | NZMN1-S40 | 40 | 320 - 560 |
| 265732 | NZMN1-S50 | 50 | 400 - 700 |
| 265733 | NZMN1-S63 | 63 | 504 - 882 |
| 265734 | NZMN1-S80 | 80 | 640 - 1120 |
| 265735 | NZMN1-S100 | 100 | 800 - 1250 |
