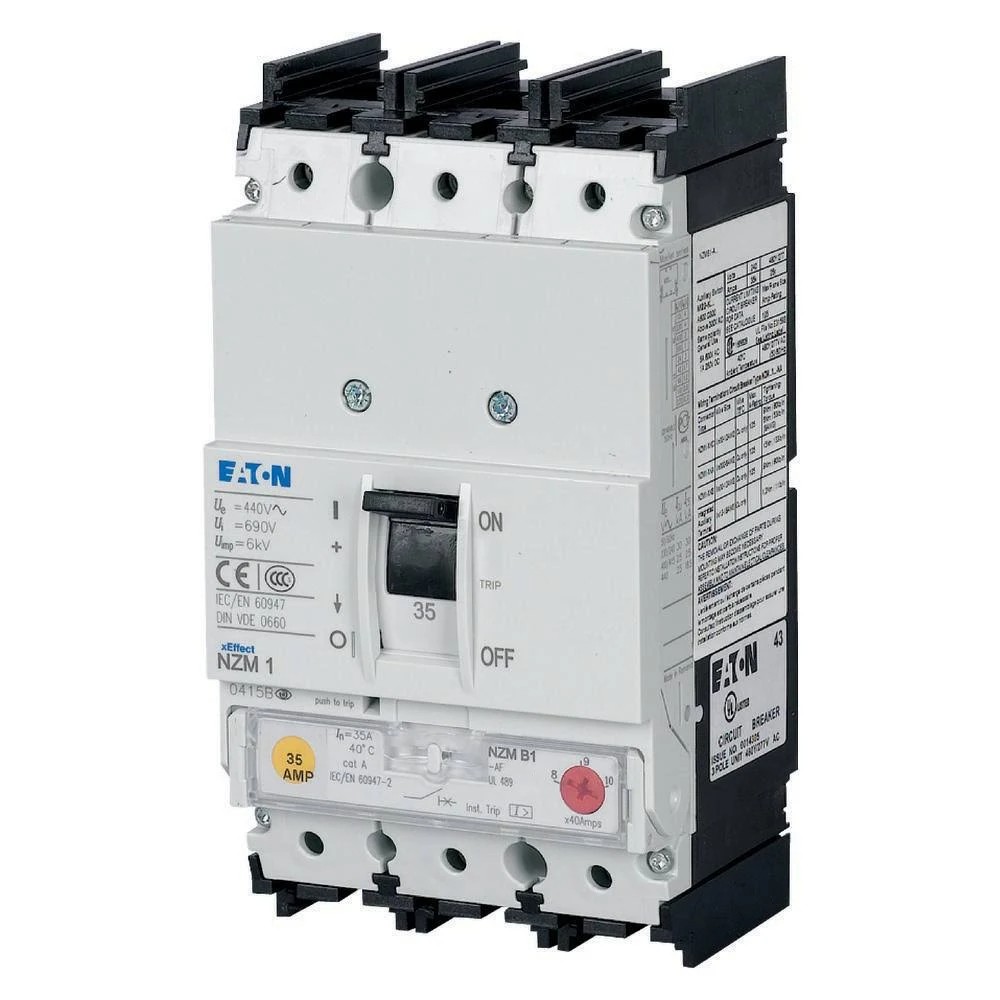

Thermo magnetic, Release 3-Pole
Protection of Systems and Cables
Adjustable thermal trip allows closer match to equipment requirements
Economical solution for applications to 125@480V/277V AC
Smallest footprint of any Moeller NZM Circuit Breaker
Breaker Conforms to UL/CSA and IEC Regulations
35 kA 240V AC
25 kA 480V/277V AC
| Article Number | Part Number | Rated current = rated uninterrupted current In = Iu |
Thermal Trip | Magnetic Trip |

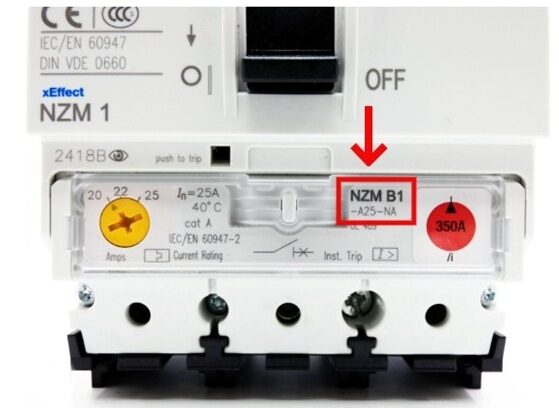

| 281559 | NZMB1-A20-NA | 20 | 15 - 20 | 350 |
| 281560 | NZMB1-A25-NA | 25 | 20 - 25 | |
| 281561 | NZMB1-A32-NA | 32 | 25 - 32 | |
| 272253 | NZMB1-A40-NA | 40 | 32 - 40 | 320 - 400 |
| 272254 | NZMB1-A50-NA | 50 | 40 - 50 | 300 - 500 |
| 272255 | NZMB1-A63-NA | 63 | 50 - 63 | 380 - 630 |
| 272256 | NZMB1-A80-NA | 80 | 63 - 80 | 480 - 800 |
| 272258 | NZMB1-A100-NA | 100 | 80 - 100 | 600 - 1000 |
| 281562 | NZMB1-A125-NA | 125 | 100 - 125 | 750 - 1250 |
Thermo magnetic, Release 3-Pole
Protection of Systems and Cables
Fixed Thermal trip prevents altered settings
Economical solution for applications to 125@480V/277V AC
Smallest footprint of any Moeller NZM Circuit Breaker
Breakers Conform to UL/CSA and IEC Regulations
35 kA 240V AC
25 kA 480V/277V AC
| Article Number | Part Number | Rated current = rated uninterrupted current In = Iu |
Thermal Trip | Magnetic Trip |
| 281553 | NZMB1-AF15-NA | 15 | 15 | 350 |
| 281554 | NZMB1-AF20-NA | 20 | 20 | |
| 281555 | NZMB1-AF25-NA | 25 | 25 | |
| 281556 | NZMB1-AF30-NA | 30 | 30 | |
| 272204 | NZMB1-AF35-NA | 35 | 35 | 320 - 400 |
| 272205 | NZMB1-AF40-NA | 40 | 40 | |
| 272206 | NZMB1-AF45-NA | 45 | 45 | 300 - 500 |
| 272207 | NZMB1-AF50-NA | 50 | 50 | |
| 272208 | NZMB1-AF60-NA | 60 | 60 | 380 - 630 |
| 272209 | NZMB1-AF70-NA | 70 | 70 | 480 - 800 |
| 272250 | NZMB1-AF80-NA | 80 | 80 | |
| 272251 | NZMB1-AF90-NA | 90 | 90 | 600 - 1000 |
| 272252 | NZMB1-AF100-NA | 100 | 100 | |
| 281557 | NZMB1-AF110-NA | 110 | 110 | 750 - 1250 |
| 281558 | NZMB1-AF125-NA | 125 | 125 |
Magnetic 3 pole short-circuit releases
Short-circuit protection
Terminals Standard, terminal screws as accessories
| Article Number | Part Number | Rated current = rated uninterrupted current In = Iu |
Short Circuit Releases |
| 102906 | NZMB1-S1.2-CNA | 1.2 | 8.14 |
| 102907 | NZMB1-S2-CNA | 2 | 12.8 - 22.4 |
| 102908 | NZMB1-S3-CNA | 3 | 19.2 - 33.6 |
| 102909 | NZMB1-S5-CNA | 5 | 32 - 56 |
| 103020 | NZMB1-S8-CNA | 8 | 48 – 84 |
| 103021 | NZMB1-S12-CNA | 12 | 80 – 140 |
| 103022 | NZMB1-S18-CNA | 18 | 128 – 224 |
| 103023 | NZMB1-S26-CNA | 26 | 200 – 350 |
| 103024 | NZMB1-S33-CNA | 33 | 256 – 448 |
| 281263 | NZMB1-S40-CNA | 40 | 320 – 560 |
| 281264 | NZMB1-S50-CNA | 50 | 400 – 700 |
| 281265 | NZMB1-S63-CNA | 63 | 504 – 882 |
| 281266 | NZMB1-S80-CNA | 80 | 640 – 1120 |
| 281267 | NZMB1-S100-CNA | 100 | 800 – 1250 |
