Choose from a wide
selection of AWA sheets for NZM3 Circuit Breakers, NZM3
handles, covers, shunt releases, under voltage releases
and more.
Click here to download NZM3 AWA
Sheets!
Click here to return to the NZM3 Summary Page

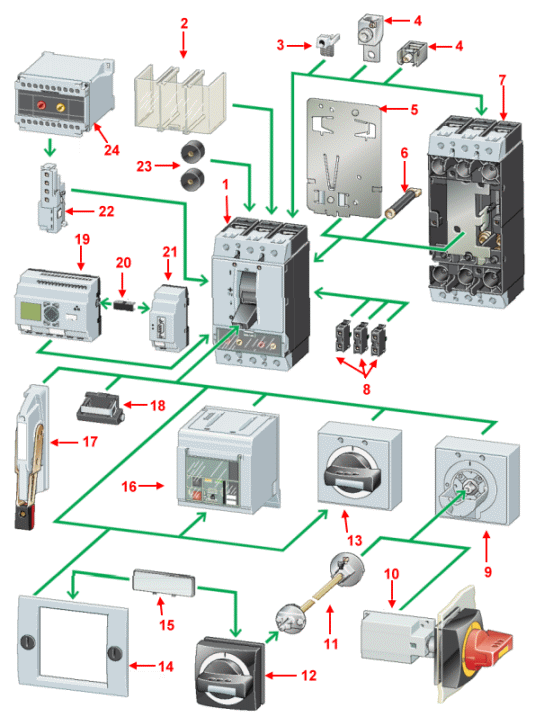

| 1. | Circuit Breaker or Disconnect Switch |
| 2. | Terminal Cover |
| 3. | Control Circuit Terminal |
| 4. | Terminals |
| 5. | Clip Plate |
| 6. | Rear Connection |
| 7. | Plug-in and withdraw able Unit |
| 8. | Standard Auxiliary Contacts or Trip Indicating Auxiliary Contact |
| 9. | Door Coupling Rotary Handle with Extension Shaft |
| 10. | Main Switch Rotary Handle for Side Panel Mounting |
| 11. | Extension Shaft |
| 12. | Door Coupling Rotary Handle |
| 13. | Rotary Handle |
| 14. | Insulating Surrounds |
| 15. | External Warning Plate |
| 16. | Remote Operator |
| 17. | Side Operator Handle |
| 18. | Toggle Lever Interlock Device |
| 19. | Data Management Interface (DMI Module) |
| 20. | EASY-LINK-DS Data Plug |
| 21. | PROFIBUS Interface |
| 22. | Voltage Release |
| 23. | Spacers |
| 24. |
Delay Unit for Under-voltage Releases
|
