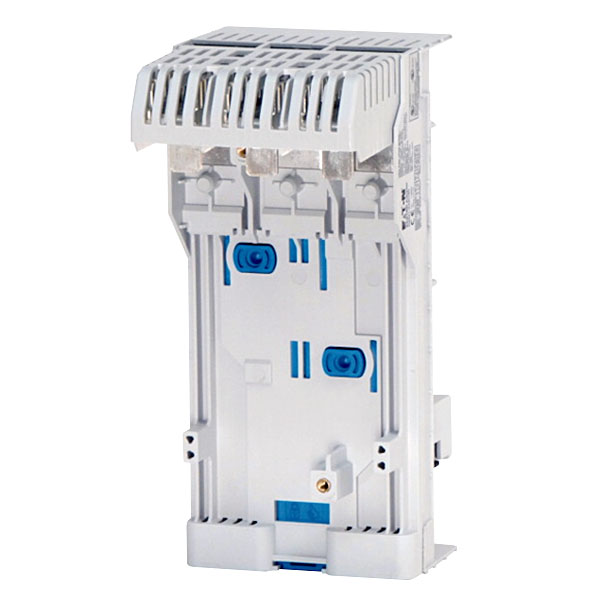

Moeller NZM3

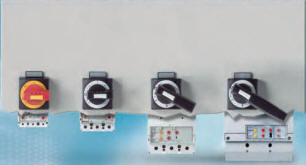

Circuit Breaker Operating Elements

Main switch assembly kit

Equipment supplied:

Rotary door-coupling handle
NZM...-XV4 extension shaft
External warning plate/designation label in German/English
Black and yellow flash
For enhanced protection against direct contact on the incomer side, IP2X protection against contact with a finger can be ordered
Other external warning plates/designation labels can be clipped on.

Part Name

Color

Description

NZM3-XHBR

Lockable on the 0 position on the handle using up to 3 padlocks. Lockable door as additional feature, locking facility on circuit-breaker in 0 position.

NZM3-XHB

Lockable on the 0 position on the handle using up to 3 padlocks, can also be modified for the I position. With door interlock.

Rotary handle on circuit-breaker

Part Name

Color

Description

NZM3-XDV

Lockable on the 0 position on the switch using up to 3 padlocks.

NZM3-XDVR

Door Coupling Rotary Handle

Complete including rotary drive and coupling parts
An additional extension shaft is necessary with the NZM...-XT(V)D(V)(R)(-60) types.
Degree of protection IP66/UL/CSA Type 4X

Part Name

Color

Description

For a max. shaft length of 60 mm

NZM3-XTVDV-60

Lockable on the handle on the switch using up to 3 padlocks. Can be locked in 0 position on the handle, with adequate modification also in I position. With door interlock. Lockable in the 0 position

NZM3-XTVD-60

Lockable on the 0 position on the handle using up to 3 padlocks. With door interlock

NZM3-XTVDVR-60

(black shown, handle red and yellow)

Lockable on the handle on the switch using up to 3 padlocks. Lockable in 0 position on handle. With door interlock. Lockable in the 0 position .

NZM3-XTVD

Lockable on the handle on the switch using up to 3 padlocks. Can be locked in 0 position on the handle, with adequate modification also in I position. With door interlock. Lockable in the 0 position Also available with door interlock e.g. for MCC service distribution.

NZM3-XTVDVR

(black shown, handle red and yellow)

Lockable on the handle on the switch using up to 3 padlocks. Lockable in 0 position on handle. With door interlock. Lockable in the 0 position

Extremely narrow fittings

NZM3-XTVD-0

Lockable on the 0 position on the handle using up to 3 padlocks. With door interlock.

NZM3-XTVDV-0

Lockable on the handle on the switch using up to 3 padlocks. Can be locked in 0 position on the handle, with adequate modification also in I position. With door interlock. Lockable on the switch in the 0 position.

NZM3-XTVDVR-0

(black shown, handle red and yellow)

Lockable on the handle on the switch using up to 3 padlocks. Lockable in 0 position on handle. With door interlock. Lockable in the 0 position

Extension Shaft

Part Name

Description

NZM3/4-XV4

Max. mounting depth: 400 mm

Add On Handle

Part Name

Description

NZM3/4-XDZ

Enables switching when the control panel door is open

Toggle lever locking device

Part Name

Description

NZM 3-XKAV

Off position lockable using up to 3 padlocks (hasp thickness 4 – 8 mm)
