Choose from a wide selection of AWA sheets for NZM2, NZM2 handles, covers, shunt releases, under voltage releases and more.
Click here to download NZM2 AWA Sheets!
Click here to return to theNZM2 Summary Page

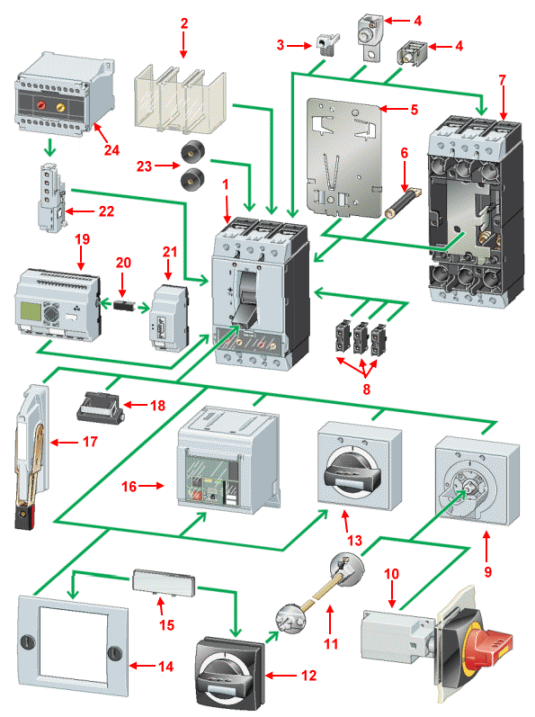

| 1. | Circuit Breaker or Disconnect Switch |
| 2. | Terminal Cover |
| 3. | Control Circuit Terminal |
| 4. | Terminals |
| 5. | Clip Plate |
| 6. | Rear Connection |
| 7. | Plug-in and withdraw able Unit |
| 8. | Standard Auxiliary Contacts or Trip Indicating Auxiliary Contact |
| 9. | Door Coupling Rotary Handle with Extension Shaft |
| 10. | Main Switch Rotary Handle for Side Panel Mounting |
| 11. | Extension Shaft |
| 12. | Door Coupling Rotary Handle |
| 13. | Rotary Handle |
| 14. | Insulating Surrounds |
| 15. | External Warning Plate |
| 16. | Remote Operator |
| 17. | Side Operator Handle |
| 18. | Toggle Lever Interlock Device |
| 19. | Data Management Interface (DMI Module) |
| 20. | EASY-LINK-DS Data Plug |
| 21. | PROFIBUS Interface |
| 22. | Voltage Release |
| 23. | Spacers |
| 24. |
Delay Unit for Under-voltage Releases
|
