Klockner Moeller
NZM10
Short Time Delay
Molded Case Circuit Breaker

UL Listed (UL 489) and CSA certified (22.2 No. 5.1) and have an additional short time delay pick up range for selectivity in energy distribution networks. The time delay response is adjustable form 0 to 1000 milliseconds.

Features of the ZMV(A) trip modules used for selectivity:

Fixed (ZMVA...) or adjustable (ZMV...) long time response current
Adjustable time delay (2 - 4 - 6 - 8 - 10 - 12 - 14 - 17 - 20 seconds) for current levels at 6 times the long time response current (Ir)
Long time response current can be disconnected
Adjustable time delay (0 - 10 - 50 - 100 - 150 - 200 - 300 - 500 - 750 - 100 ms) pick up setting
Adjustable instantaneous pick up response

CIRCUIT BREAKER	LONG TIME RESPONSE CURRENT SETTING	SETTING RANGES ADJUSTABLE INSTANEOUS PICK-UP SETTING	ADJUSTABLE SHORT TOME DELAY PICK UP SETTING FOR SELECTIVITY IN NETWORKS TIME DELAY RANGE 0-1000 ms DELAYED	NORMAL INTERRUPTING CAPACITY 42 kA at 480 V 50/60 HZ 35 kA at 600 V 50/60 HZ	HIGH INTERRUPTING CAPACITY 100 kA at 480 V 50/60 HZ 50 kA at 600 V 50/60 HZ
WITH FIXED LONG TIME RESPONSE SETTING Supplied with toggle operator. Refer to --- table for additional handle types. Supplied with bolt on connection as standard. For line and load field wiring terminals for cable connection refer to --- table for details on available terminals.	200	1000-9000	2 - 12 x Ir	NZM10-400N/ZMVA-200-NA	NZM10-400S/ZMVA-200-NA
	225	1000-9000	2 - 12 x Ir	NZM10-400N/ZMVA-225-NA	NZM10-400S/ZMVA-225-NA
	250	1000-9000	2 - 12 x Ir	NZM10-400N/ZMVA-250-NA	NZM10-400S/ZMVA-250-NA
	300	1000-9000	2 - 12 x Ir	NZM10-400N/ZMVA-300-NA	NZM10-400S/ZMVA-300-NA
	350	1000-9000	2 - 12 x Ir	NZM10-400N/ZMVA-350-NA	NZM10-400S/ZMVA-350-NA
	400	1000-9000	2 - 12 x Ir	NZM10-400N/ZMVA-400-NA	NZM10-400S/ZMVA-400-NA
	500	1000-9000	2 - 12 x Ir	NZM10-600N/ZMVA-500-NA	NZM10-600S/ZMVA-500-NA
	600	1000-9000	2 - 12 x Ir	NZM10-600N/ZMVA-600-NA	NZM10-600S/ZMVA-600-NA
WITH ADJUSTABLE LONG TIME RESPONSE SETTINGS Supplied with toggle operator. Refer to --- table for additional handle types Supplied with bolt on connection as standard. For line and load field wiring terminals for cable connection refer to --- table for details on available terminals	200-400	1000-9000	400-4800	NZM10-400N/ZMV-400-NA	NZM10-400S/ZMV-400-NA
	300-600	1000-9000	600-7200	NZM10-600N/ZMV-600-NA	NZM10-600S/ZMV-600-NA

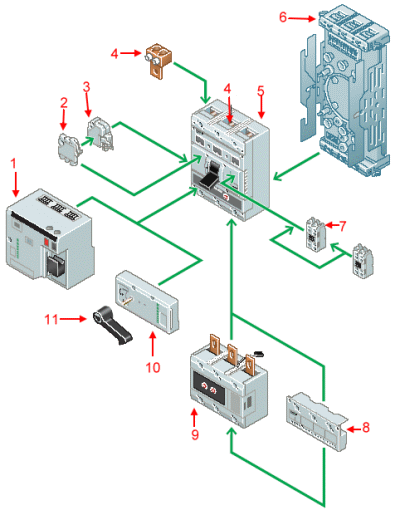

NZM10 Overview
