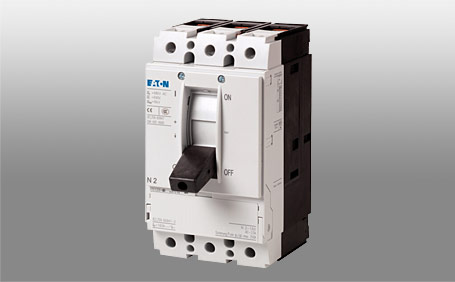

Moeller NS2
|
||||
|
||||
|
Rated current
= rated uninterrupted current |
Switching capacity at 480 V | Switching capacity at 600 V | Response range of the short circuit releases | |
| NS2-160-NA | 160 | 100 | 50 | 2500 |
| NS2-200-NA | 200 | |||
| NS2-250-NA | 250 | |||

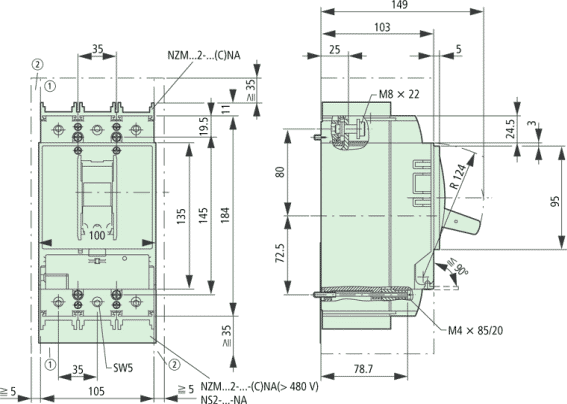

NS2 Dimensions |
||||
|
||||
NS2 Product Notes |
||||
|
3 switch positions I, + , 0 ; can be tripped remotely with
shunt/under voltage release
Switches feature a fixed short-circuit release (self-protection) and comply to UL 489/CSA 22.2 No 5.1 regulations. Furthermore the switches are tested to IEC/EN 60947-2 as circuit-breakers without over current protection (CBI-X) with main switch characteristics to IEC/EN 60204 and isolating characteristics to IEC 60947. |
||||
