Moeller N1
|
||
|
||
|
Rated current
= rated uninterrupted current |
Short-circuit
protection, max. gG/gL fuse1) |
|
| N1-63-NA | 63 | 125 |
| N1-100-NA | 100 | |
| N1-125-NA | 125 | |
| N1-160-NA | 160 | 160 |

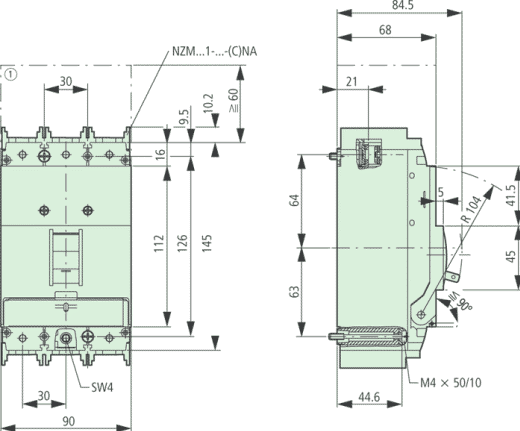

N1 Dimensions |
||
|
||
N1 Product Notes |
||
|
3 switch positions I, + , 0 ; can be tripped remotely with
shunt/under voltage release
Switches feature a fixed short-circuit release (self-protection) and comply to UL 489/CSA 22.2 No 5.1 regulations. Furthermore the switches are tested to IEC/EN 60947-2 as circuit-breakers without over current protection (CBI-X) with main switch characteristics to IEC/EN 60204 and isolating characteristics to IEC 60947. |
||
N1-4 |
||
|
||
|
Rated current
= rated uninterrupted current |
Short-circuit
protection, max. gG/gL fuse1) |
|
| N1-4-63-NA | 63 | 125 |
| N1-4-100-NA | 100 | |
| N1-4-125-NA | 125 | |
| N1-4-160-NA | 160 | 160 |

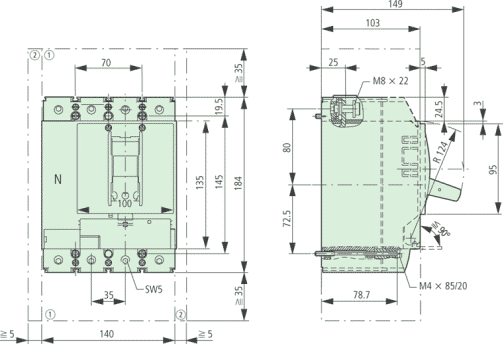

N1-4 Dimensions |
||
|
||
