Eaton/Moeller
MCS
Pressure Pipe Flange Accessories

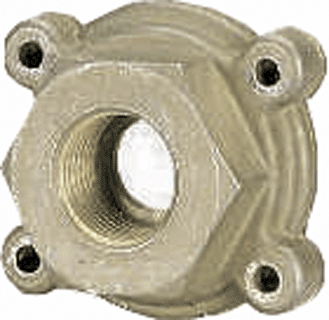

Pressure pipe flange
	For use with	Part Number	Article Number
	MCS with R ½"	+R1/2"-MCS	001627
	MCS with R ½"	R1/2"-MCS	031617
	MCSN(-V) with R ¼"	+R1/4"-MCSN	001628
	MCSN(-V) with R ¼"	R1/4"-MCSN	033990
Pressure pipe flange with pressure gauge connection
	For use with	Part Number	Article Number
	MCS, MCSN(-V)	+M-MCS	001625
	MCS, MCSN(-V)	M-MCS	071913
Compression fitting
	For use with	Part Number	Article Number
	MCS, MCSN	+E8-MCS	001624
	MCS, MCSN	E8-MCS	040949
Wall mounting brackets
	For use with	Part Number	Article Number
	MCS, MCSN	+W-MCS	001631
	MCS, MCSN	W-MCS	050665
External device plug, IP65
	For use with	Part Number	Article Number
	MCS MCS...-G Not for use with MCS...SOND910-G	+S3-MCS	201854
Pressure setting
Ordering Information Desired type MCS4 Required cut-in pressure in bar: 2.2 Required cut-out pressure in bar: 3 A maximum or one decimal place after the comma is possible with the pressure definition. The correct type is: MCS4 + PMIN(2,2)/PMAX(3,0)	For use with	Part Number	Article Number
	MCS, MCSN	+PMIN()/PMAX()	203948
