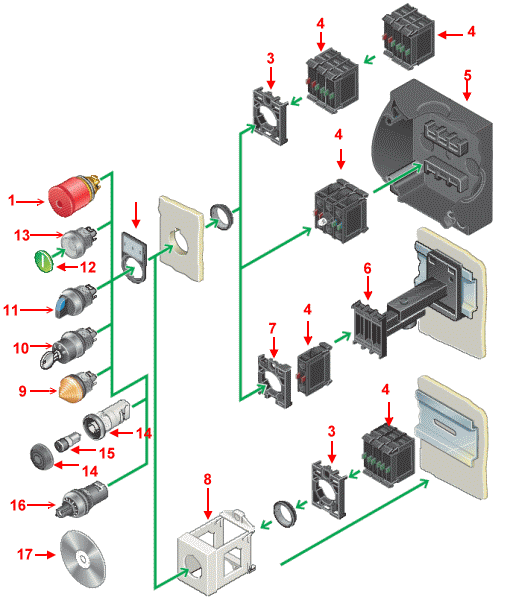

Emergency-Stop actuators 1
Tamper proof to ISO 13850/EN 418 Can be secured by means of sealable shroud Additional plates with and without text |
Label mounts 2
For insert plates Color: black Aluminium-colored insert plates, with and without text, can be engraved |
|
Fixing
adapter 3
For front fixing For contact and LED elements |
Contact elements 4
Break contacts and make contacts Universal contacts suitable for use with electronic devices Positive opening safety function according to IEC/EN 60947-5-1 Max. 2 levels with 3 contact elements each LED elements 4 Voltage range: 12 – 30 V AC/DC 85 – 264 V AC |
|
Enclosures
5
Surface mounting enclosures, IP67, up to 6 locations Flush mounting panels IP54 up to 6 locations Shrouds IP40 for flush mounting panels |
Telescopic clip 6
For equalizing the mounting depth for rear mounting in CI and CI-K enclosures and cabinets |
|
Centering
adapter 7
For centering actuation and signaling elements when using telescopic clips |
IVS top-hat rail
adapter 8
For direct mounting onto top-hat rail according to EN 50022 |
|
Indicator
lights 9
Flush and conical versions Colors: white, green, red, yellow, blue |
Key-operated actuators
10
Two and three positions Programmable spring-return/stay-put function and key withdrawal Suitable for master key systems |
|
Selector
switch actuators 11
Two and three positions With rotary head, thumb-grip Programmable spring-return/stay-put Illuminated selector switch actuators with transparent thumb-grip Colors: white, green, red, yellow, blue |
Button plates/button
lenses 12
Inscription using laser technology for push-button actuators and mushroom actuators Button lenses for illuminated push-button actuators and indicator lights, flush With standard texts and symbols or nonstandard inscription |
|
Push-button actuators 13
Spring-return and stay-put Flush and extended With and without guard ring Mushroom actuators Double actuators Colors: white, green, red, yellow, blue, black Illuminated push-button actuators Colors: white, green, red, yellow, blue |
Acoustic indicators 14
Degree of protection IP40 without buzzer |
|
Buzzer 15
Continuous and pulsed tone 18 – 30 V AC/DC |
Potentiometers 16
Resistance values from 1 to 470 kO 3 connections, brought out individually With screw terminals |
|
Software
17
TitanSelect labeling and selection aid |
