M22 OPERATORS |
|
| ENTIRE PUSHBUTTON CATALOG SECTION PDF | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pushbutton Description |
|
| M22- | x | x | x | x | -x- | x x x | ||
|
Series |
Operation |
Cap |
Printing | |||||
|
M22 |
D |
Momentary - Flush |
Black |
-S- | ||||
| D | R | Maintained - Flush |
White |
-W- | ||||
| D | H | Momentary - Extended |
Red |
-R- | ||||
| D | R | H | Maintained - Extended |
Green |
-G- | |||
| D | P | Mushroom - Momentary |
Yellow |
-Y- | ||||
| D | P | R | Mushroom - Maintained |
Blue |
-B- | |||
| No Cap | -X- | |||||||
| D | L | Momentary - Flush - Lighted | ||||||
| D | R | L | Maintained - Flush - Lighted | |||||
| D | L | H | Momentary - Extended - Lighted | |||||
| D | R | L | H | Maintained - Extended - Lighted | ||||
|

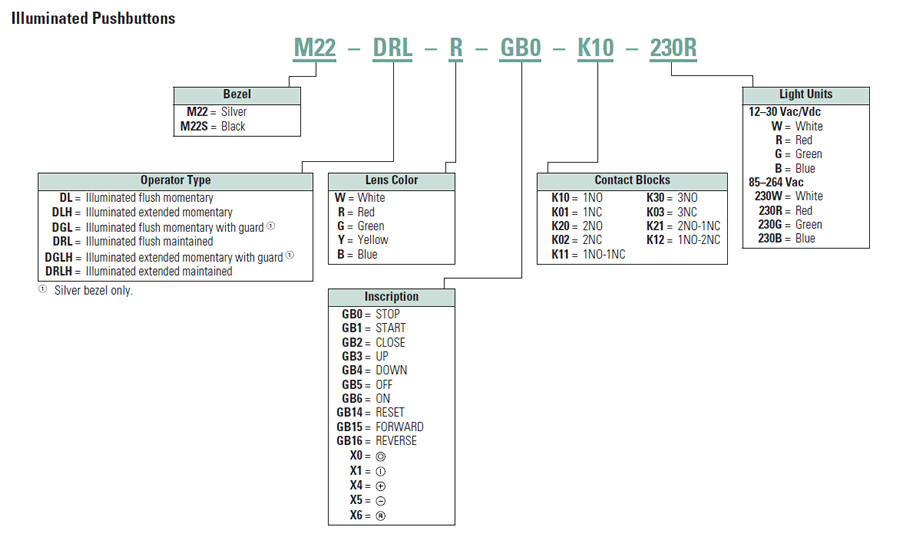

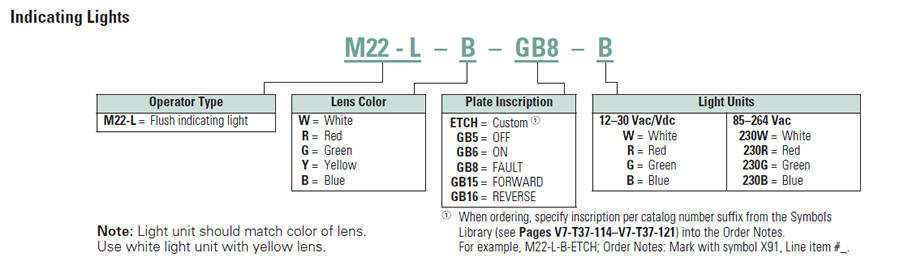

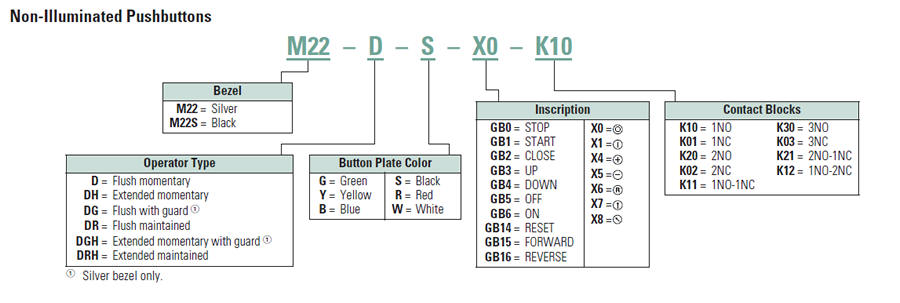

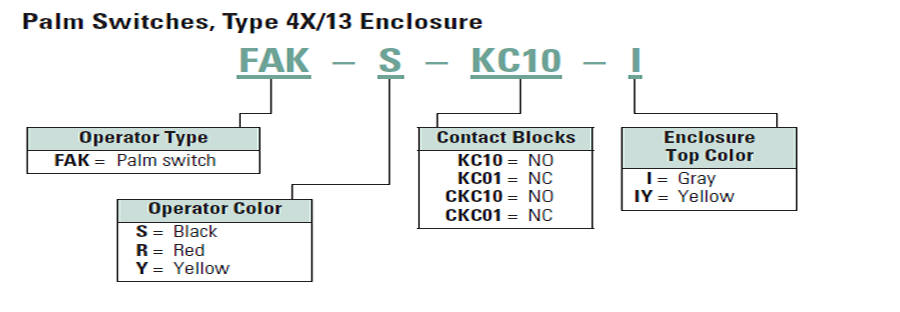

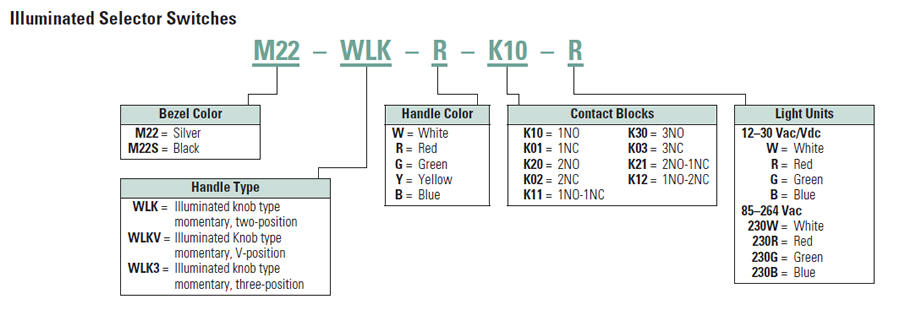

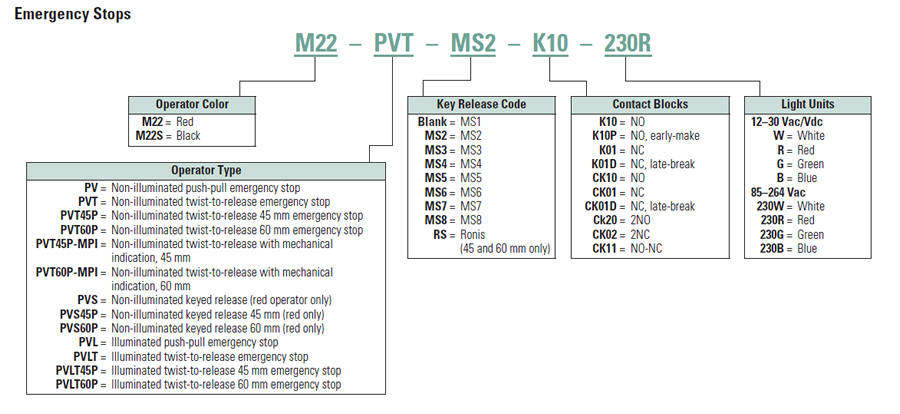

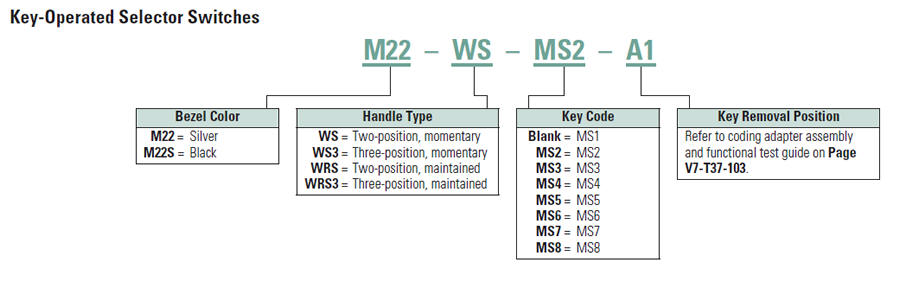

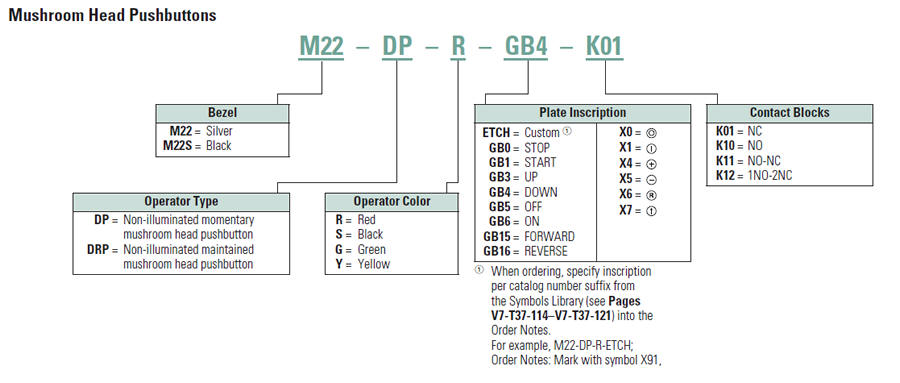

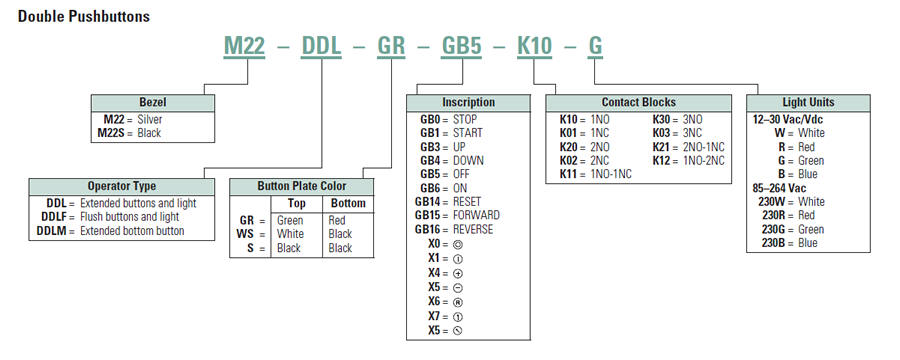

Nomenclature
|
|
Example: M22-DRLH-B Part Number Explanation: |
||
| M22- D R L H- B | ||
|
|
||
| M22 Links | Pushbuttons | Accessories |
| Selector Switches | Pilot Lights | E-Stops |
| Actuators | Indicating Light Assemblies |
