Eaton Klockner Moeller Pushbuttons & Selector Switches

RMQ Titan M22 Pushbutton Operators

Click Above Tab to Open Content - Click ↑ to Close

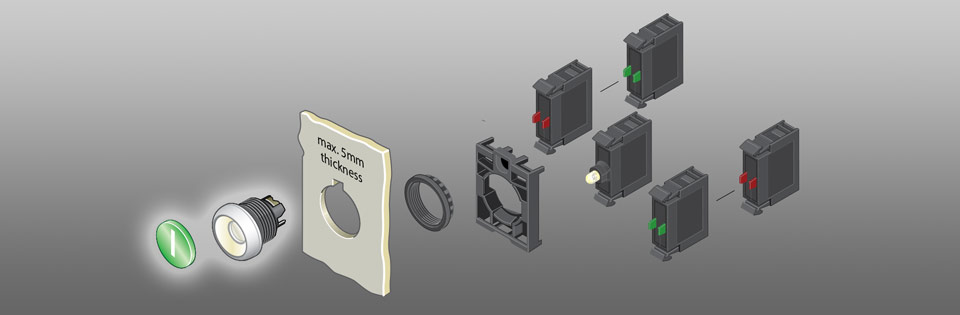

RMQ Titan M22 Pushbutton Operators - Lighted

Flush Cap
FLUSH MOMENTARY	M22-D-L-X	NA	M22-D-L-W	M22-D-L-R	M22-D-L-G	M22-D-L-Y	M22-D-L-B
FLUSH MAINTAINED	M22-D-RL-X	NA	M22-D-RL-W	M22-D-RL-R	M22-D-RL-G	M22-D-RL-Y	M22-D-RL-B
CAP ONLY	~	NA	M22-XD-L-W	M22-XD-L-R	M22-XD-L-G	M22-XD-L-Y	M22-XD-L-B

Contacts Screw Terminals
	Front Mount		Base Mount

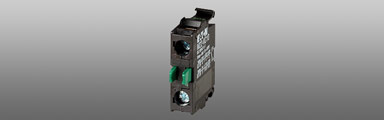

	M22- K10	M22- K01	M22- KC10	M22- KC01

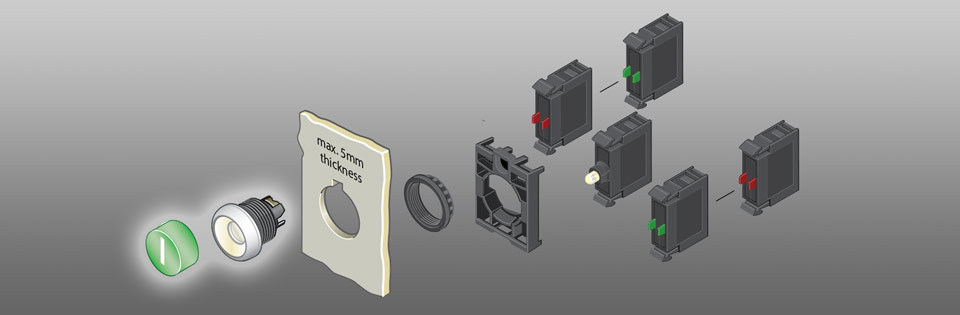

RMQ Titan M22 Pushbutton Operators Lighted-Extended

Extended Cap
EXTENDED MOMENTARY	M22- D-L-X	NA	M22- D-LH-W	M22- D-LH-R	M22- D-LH-G	M22- D-LH-Y	M22- D-LH-B
EXTENDED MAINTAINED	M22- D-RL-X	NA	M22- D-RLH-W	M22- D-RLH-R	M22- D-RLH-G	M22- D-RLH-Y	M22- D-RLH-B
CAP ONLY	~	NA	M22- XDL-H-W	M22- XDL-H-R	M22- XDL-H-G	M22- XDL-H-Y	M22- XDL-H-B

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

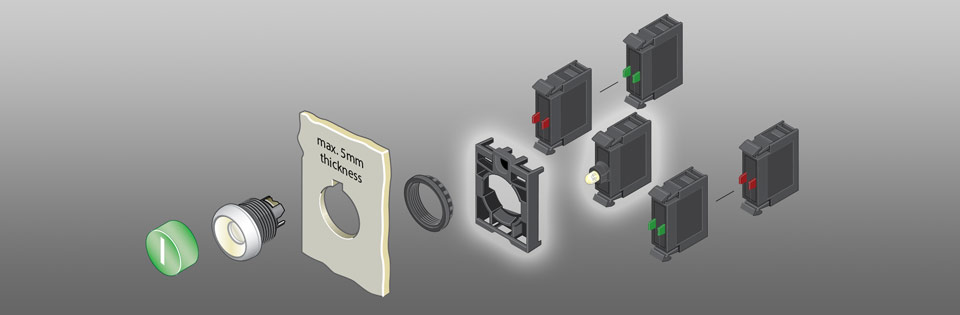

RMQ Titan M22 Pushbutton Operators - LED's

LED's & Mount Adapter
12-30v AC/DC LED	Screw Terminal Cover Mount	M22-A	M22- LED-W	M22- LED-R	M22- LED-G	M22- LED-B
85-264v AC LED	Screw Terminal Cover Mount	M22-A	M22- LED-230-W	M22- LED-230-R	M22- LED-230-G	M22- LED-230-B
12-30v AC/DC LED	Screw Terminal Base Mount	NA	M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
85-264v AC LED	Screw Terminal Base Mount	NA	M22- LEDC-230-W	M22- LEDC-230-R	M22- LEDC-230-G	M22- LEDC-230-B

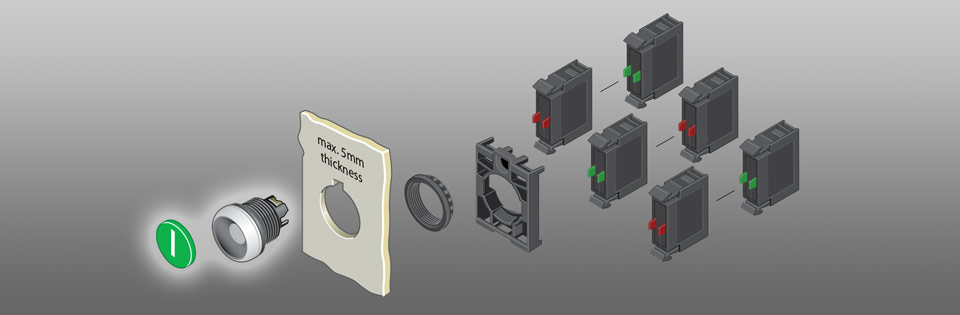

RMQ Titan M22 Pushbutton Operators - Flush

Flush Cap
FLUSH MOMENTARY	M22- D-X	M22- D-S	M22- D-W	M22- D-R	M22- D-G	M22- D-Y	M22- D-B
FLUSH MAINTAINED	M22- DR-X	M22- DR-S	M22- DR-W	M22- DR-R	M22- DR-G	M22- DR-Y	M22- DR-B
CAP ONLY	~	M22- XD-S	M22- XD-W	M22- XD-R	M22- XD-G	M22- XD-Y	M22- XD-B

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

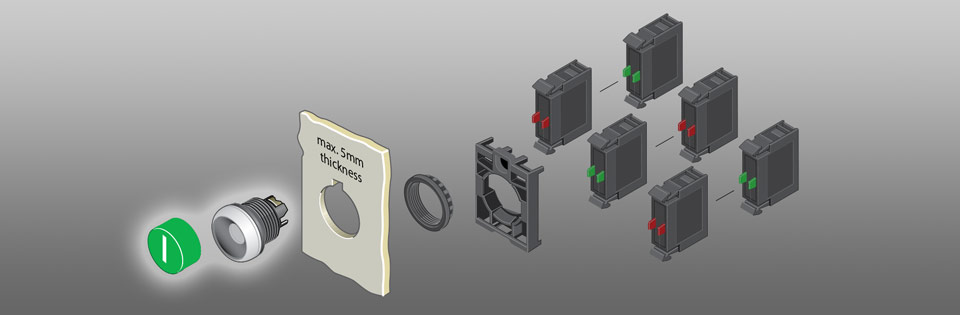

RMQ Titan M22 Pushbutton Operators - Extended

Extended Cap
EXTENDED MOMENTARY	M22- D-X	M22- DH-S	M22- DH-W	M22- DH-R	M22- DH-G	M22- DH-Y	M22- DH-B
EXTENDED MAINTAINED	M22- DR-X	M22- DRH-S	M22- DRH-W	M22- DRH-R	M22- DRH-G	M22- DRH-Y	M22- DRH-B
CAP ONLY	~	M22- XDH-S	M22- XDH-W	M22- XDH-R	M22- XDH-G	M22- XDH-Y	M22- XDH-B

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

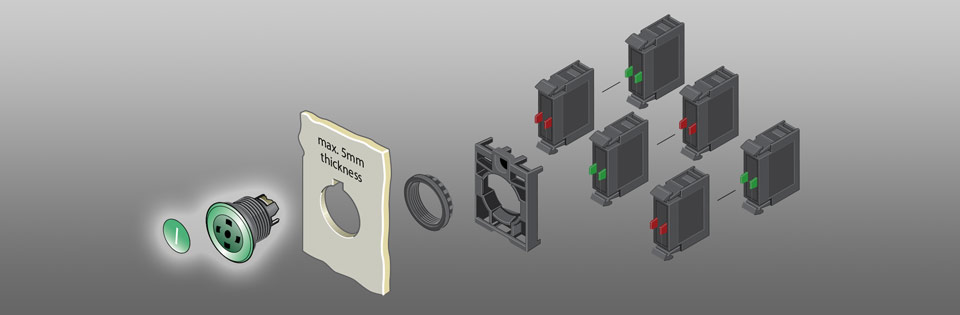

RMQ Titan M22 Pushbutton Operators - Mushroom Head

With Cap
MOMENTARY	M22-A	M22- DP-Y	M22- DP-G	M22- DP-R	M22- DP-S	M22- DP-W
MAINTAINED		M22- DRP-Y	M22- DRP-G	M22- DRP-R	M22- DRP-S	M22- DRP-W
CAP ONLY		M22- XDP-Y	M22- XDP-G	M22- XDP-R	M22- XDP-S	M22- XDP-W

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

RMQ Titan M22 Pushbutton Operators - Mushroom Head

Without Cap
MOMENTARY	M22-A	M22- DP-Y-X	M22- DP-G-X	M22- DP-R-X	M22- DP-S-X	NA
MAINTAINED		M22S- DRP-Y-X	M22S- DRP-G-X	M22S- DRP-R-X	M22S- DRP-S-X	NA
CAP ONLY		M22- XDP-Y	M22- XDP-G	M22- XDP-R	M22- XDP-S	M22- XDP-W

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

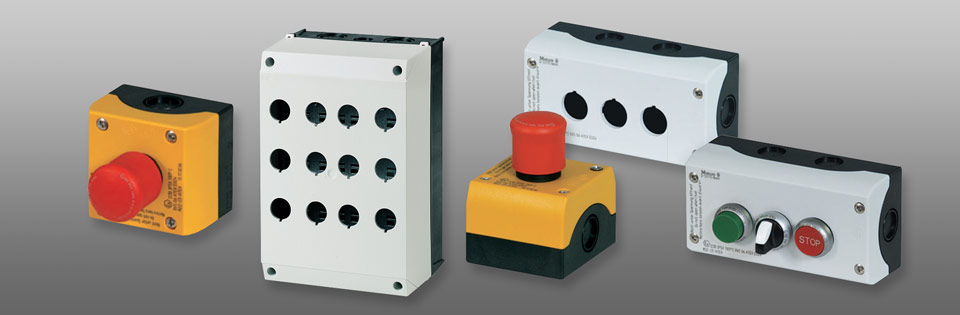

RMQ Titan M22 Pushbutton Operator Enclousures

Enclosures

M22- IY1-PG	M22- I1-PG	M22- I2-PG	M22- I3-PG	M22- I4-PG	M22- I6-PG	M22- I12-PG
Mounting Panel

M22- EY1	M22- E1	M22- E2	M22- E3	M22- E4	M22- E5	M22- E6
Shrouds

M22- H1		M22- H2	M22- H3	M22- H4	M22- H5	M22- H6
		Used to connect shroud to pilot devices on mounting plate. Can break apart for use up to 5 mounting holes
M22- XES				2 Plaster mounts for plastering shrouds M22- UPE		Cable Gland V-M20
Contacts		Base Mount LED's
		Voltages
M22- KC10	M22- KC01	12 - 30 V AC/DC 8 - 15mA	M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
		85 - 264 V AC 50/60 Hz 5 - 15 mA	M22- LEDC230-W	M22- LEDC230-R	M22- LEDC230-G	M22- LEDC230-B
		207 - 264 V AC 50 - 60 Hz 12 - 15 mA	M22- LEDC230H-W	M22- LEDC230H-R	M22- LEDC230H-G	M22- LEDC230H-B

Position Selector Switches

Click Above Tab to Open Content - Click ↑ to Close

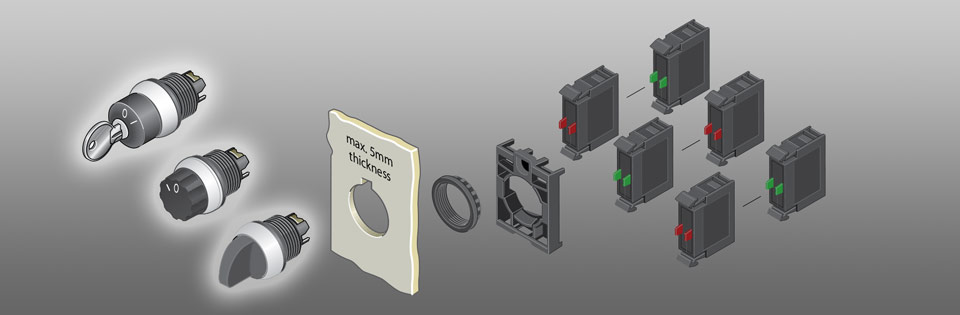

2-Position Selector Switches

2-Position Selector Switches
	M22- WR	M22- WRS	M22- WRK (Non-Lighted)	M22- WRLK-R (Lighted)	M22- WRLK-G (Lighted)	M22- WRLK-B (Lighted)	M22- WRLK-Y (Lighted)
			M22- WRLK-W (Lighted)
	M22- W	M22- WS	M22- WK (Non-Lighted)	M22- WLK-R (Lighted)	M22- WLK-G (Lighted)	M22- WLK-B (Lighted)	M22- WLK-Y (Lighted)
			M22- WLK-W (Lighted)
	NA	NA	M22- WKV (Non-Lighted)	M22- WLKV-R (Lighted)	M22- WLKV-G (Lighted)	M22- WLKV-B (Lighted)	M22- WLKV-B (Lighted)

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

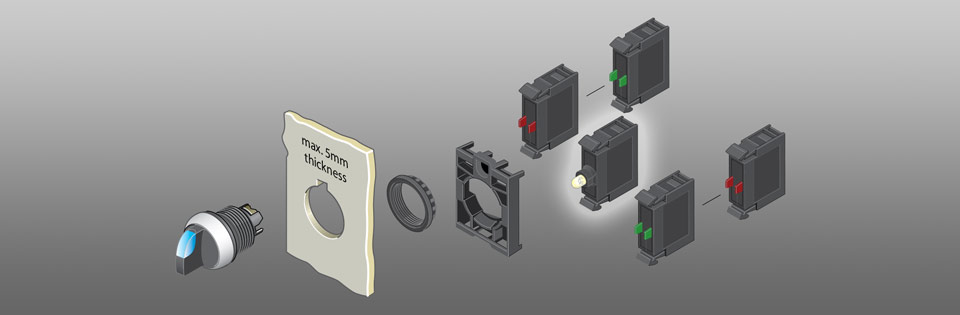

Position Selector Switches - LED's

LED's & Mount Adapter
12-30v AC/DC LED	Screw Terminal Cover Mount	M22-A	M22- LED-W	M22- LED-R	M22- LED-G	M22- LED-B
85-264v AC LED	Screw Terminal Cover Mount		M22- LED-230-W	M22- LED-230-R	M22- LED-230-G	M22- LED-230-B
12-30v AC/DC LED	Screw Terminal Base Mount		M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
85-264v AC LED	Screw Terminal Base Mount		M22- LEDC-230-W	M22- LEDC-230-R	M22- LEDC-230-G	M22- LEDC-230-B

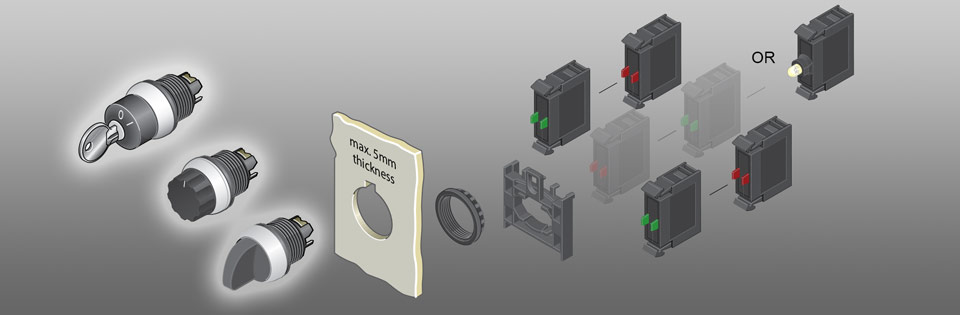

3-Position Selector Switches

3-Position Selector Switches
	M22- WR3	M22- WRS3	M22- WRK3 (Non-Lighted)	M22- WRLK3-R	M22- WRLK3-G	M22- WRLK3-B	M22- WRLK3-B
			M22- WRLK3-W (Lighted)
	M22- W3	M22- WS3	M22- WK3 (Non-Lighted)	M22- WLK3-R	M22- WLK3-G	M22- WLK3-B	M22- WLK3-Y
			M22- WLK3-W (Lighted)

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

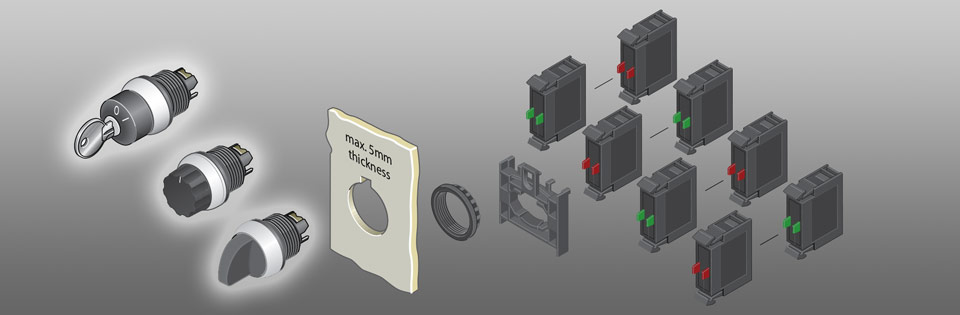

4-Position Selector Switches

4-Position Selector Switches
	M22- A4	M22- WR4	M22- WRK4	NA	NA	NA	NA

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

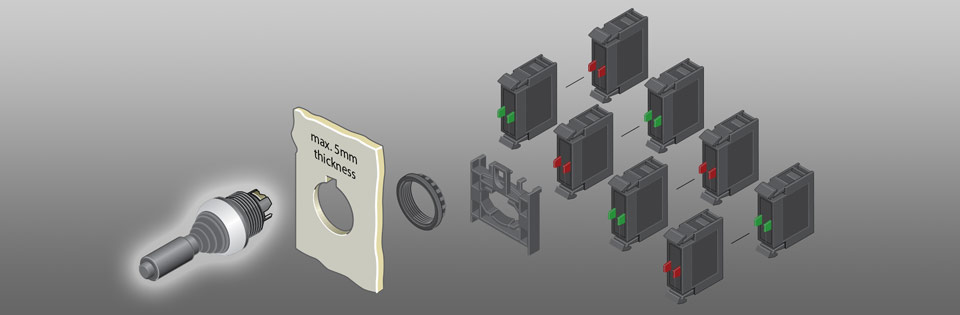

Position Selector Joystick

Joystick
Number of Positions	Two-Way Horizontal Actuator		Two-Way Vertical Actuator		Four-Way Actuatot
	M22- WJ2H	M22- WRJ2H	M22- WJ2V	M22- WRJ2V	M22- WJ4	M22- WRJ4

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

Position Selector Switche Enclousers

Enclosures

M22- IY1-PG	M22- I1-PG	M22- I2-PG	M22- I3-PG	M22- I4-PG	M22- I6-PG	M22- I12-PG
Mounting Panel

M22- EY1	M22- E1	M22- E2	M22- E3	M22- E4	M22- E5	M22- E6
Shrouds

M22- H1		M22- H2	M22- H3	M22- H4	M22- H5	M22- H6
		Used to connect shroud to pilot devices on mounting plate. Can break apart for use up to 5 mounting holes
M22- XES				2 Plaster mounts for plastering shrouds M22 UPE		Cable Gland V-M20
Contacts		Base Mount LED's
		Voltages
M22- KC10	M22- KC01	12 - 30 V AC/DC 8 - 15mA	M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
		85 - 264 V AC 50/60 Hz 5 - 15 mA	M22- LEDC230-W	M22- LEDC230-R	M22- LEDC230-G	M22- LEDC230-B
		207 - 264 V AC 50 - 60 Hz 12 - 15 mA	M22- LEDC230H-W	M22- LEDC230H-R	M22- LEDC230H-G	M22- LEDC230H-B

Indicator Lights

Click Above Tab to Open Content - Click ↑ to Close

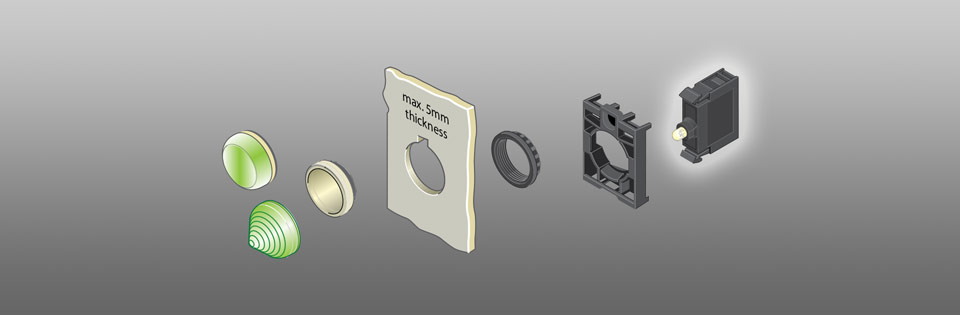

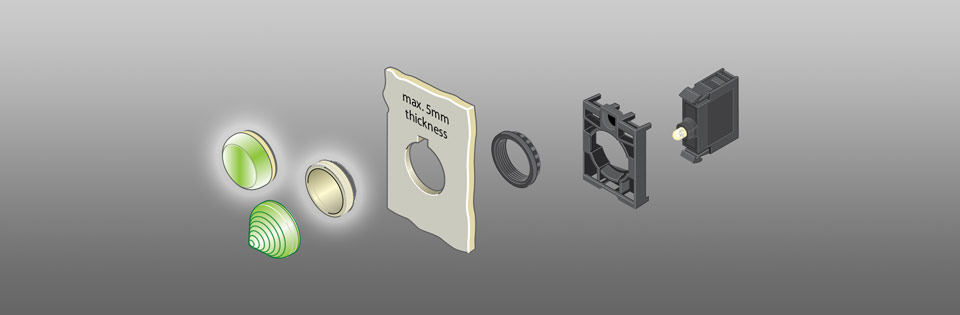

Indicator & Stack Lights Flush Mounted

Flush Mounted
Standard	M22- A	M22- L-X	M22- L-W	M22- L-R	M22- L-G	M22- L-B	M22- L-Y
Lens Only	NA	NA	M22- XL-W	M22- XL-R	M22- XL-G	M22- XL-B	M22- XL-Y

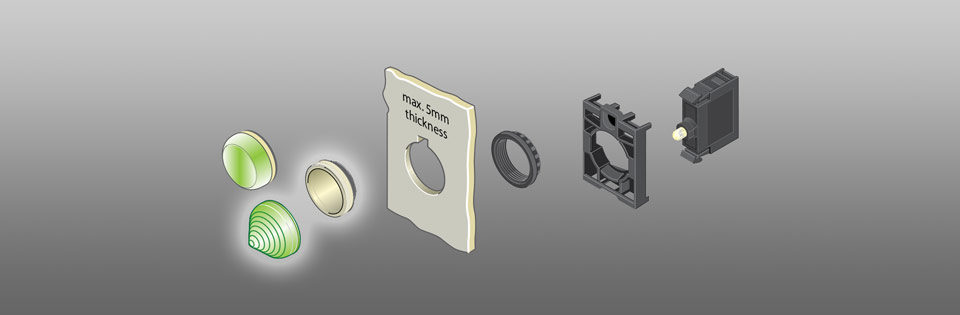

Indicator & Stack Lights Extended Conical

Flush Mounted
Standard	M22- A	M22- L-X	M22- LH-W	M22- LH-R	M22- LH-G	M22- LH-B	M22- LH-Y
Lens Only	NA	NA	M22- XLH-W	M22- XLH-R	M22- XLH-G	M22- XLH-B	M22- XLH-Y

LED's & Mount Adapter
12-30v AC/DC LED	Screw Terminal Cover Mount	M22-A	M22- LED-W	M22- LED-R	M22- LED-G	M22- LED-B
85-264v AC LED	Screw Terminal Cover Mount		M22- LED-230-W	M22- LED-230-R	M22- LED-230-G	M22- LED-230-B
12-30v AC/DC LED	Screw Terminal Base Mount		M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
85-264v AC LED	Screw Terminal Base Mount		M22- LEDC-230-W	M22- LEDC-230-R	M22- LEDC-230-G	M22- LEDC-230-B

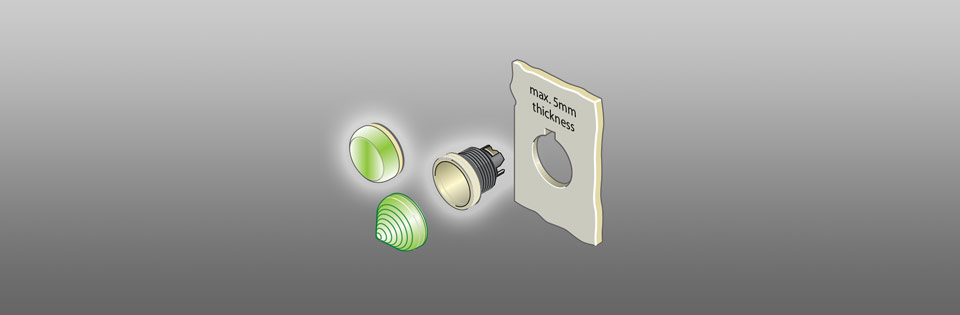

Indicator & Stack Lights

Compact Indicating Light
Standard	M22- LC-X	M22- LC-W	M22- LC-R	M22- LC-G	M22- LC-B	M22- LC-Y
Lens Only	NA	M22- XL-W	M22- XL-R	M22- XL-G	M22- XL-B	M22- XL-Y

Bulbs

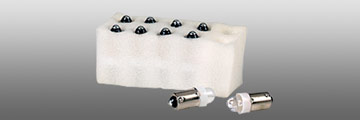

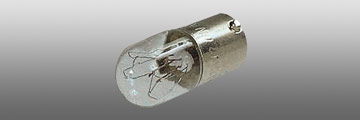

Voltage	110 - 130V AC/DC 2.4W	A22- GL130		10 - 30V AC/DC 15mA	(White) A22- LED-W
					RED = A22- LED-R
	24V AC/DC 2.0W	A22- GL24			GREEN = A22- LED-G
					YELLOW = A22- LED-Y

Indicator & Stack Lights - Flush Mounted - Compact

Compact Indicating Light
Standard	M22- LC-X	M22- LCH-W	M22- LCH-R	M22- LCH-G	M22- LCH-B	M22- LCH-Y
Lens Only	NA	M22- XLH-W	M22- XLH-R	M22- XLH-G	M22- XLH-B	M22- XLH-Y

Bulbs
Voltage	110 - 130V AC/DC 2.4W	A22- GL130		10 - 30V AC/DC 15mA	WHITE = A22- LED-W
					RED = A22- LED-R
	24V AC/DC 2.0W	A22- GL24			GREEN = A22- LED-G
					YELLOW = A22- LED-Y

Enclosures

Enclosures

M22- IY1-PG	M22- I1-PG	M22- I2-PG	M22- I3-PG	M22- I4-PG	M22- I6-PG	M22- I12-PG
Mounting Panel

M22- EY1	M22- E1	M22- E2	M22- E3	M22- E4	M22- E5	M22- E6
Shrouds

M22- H1		M22- H2	M22- H3	M22- H4	M22- H5	M22- H6
		Used to connect shroud to pilot devices on mounting plate. Can break apart for use up to 5 mounting holes
M22- XES				2 Plaster mounts for plastering shrouds M22- UPE		Cable Gland V-M20
Contacts		Base Mount LED's
		Voltages
M22- KC10	M22- KC01	12 - 30 V AC/DC 8 - 15mA	M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
		85 - 264 V AC 50/60 Hz 5 - 15 mA	M22- LEDC230-W	M22- LEDC230-R	M22- LEDC230-G	M22- LEDC230-B
		207 - 264 V AC 50 - 60 Hz 12 - 15 mA	M22- LEDC230H-W	M22- LEDC230H-R	M22- LEDC230H-G	M22- LEDC230H-B

Emergency Stop

Click Above Tab to Open Content - Click ↑ to Close

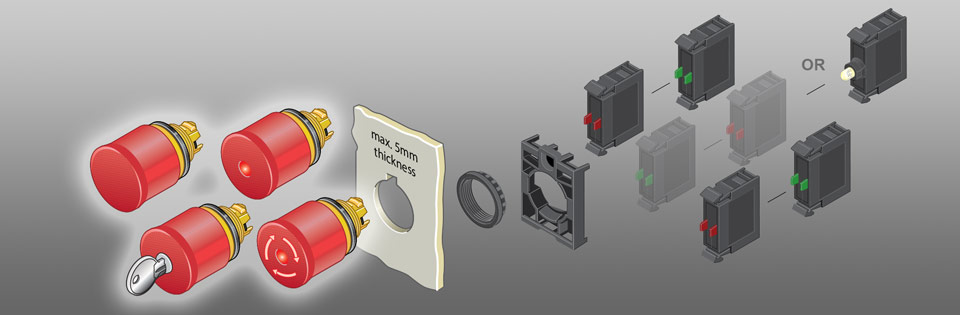

Emergency Stop

E-Stop
Pull-to-Release	Mounting Adapter	Non-Illuminated		Illuminated		-
Pull-to-Release	M22- A	M22- PV	M22S- PV	M22- PVL	M22S- PVL	-
Turn-to-Release		M22- PVT	M22S- PVT	M22- PVLT	M22S- PVLT	-
Keyed-to-Release		-	-	-	-	M22- PVS (Key 1 - Key 32)

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

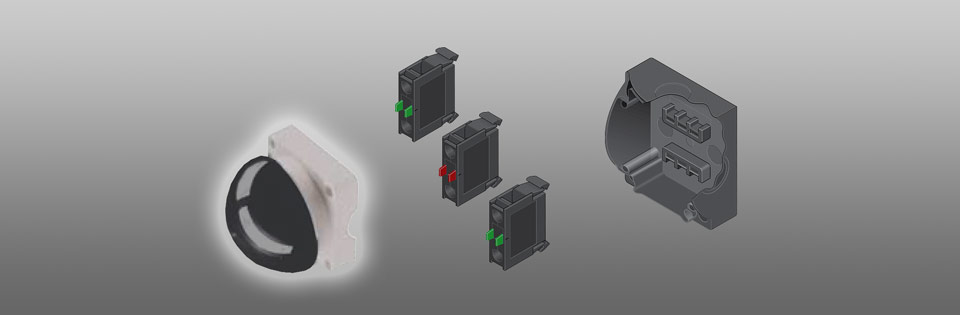

FAK Emergency Stop

FAK
Momentary	FAK- S	FAK- R	FAK- Y	-	Cable Gland V-M20	Enclosure Base FAK- IU
Maintained	-	-	-	FAK- R/V/Y Pull-to-Release	Cable Gland V-M20	Enclosure Base FAK- IU
Contact Screw Terminals Base Mounted
Contact Screw Terminals Base Mounted	M22- KC10			M22- KC01

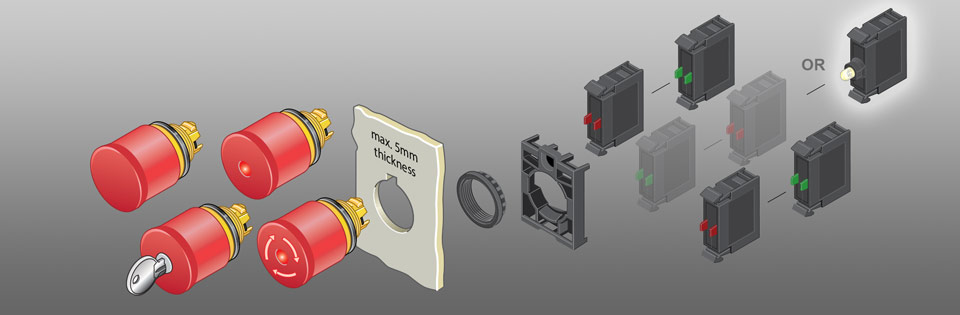

Emergency Stop LED's

LED's & Mount Adapter
12-30v AC/DC LED	Screw Terminal Cover Mount	M22-A	M22- LED-W	M22- LED-R	M22- LED-G	M22- LED-B
85-264v AC LED	Screw Terminal Cover Mount		M22- LED-230-W	M22- LED-230-R	M22- LED-230-G	M22- LED-230-B
12-30v AC/DC LED	Screw Terminal Base Mount		M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
85-264v AC LED	Screw Terminal Base Mount		M22- LEDC-230-W	M22- LEDC-230-R	M22- LEDC-230-G	M22- LEDC-230-B

Enclosures

Enclosures

M22- IY1-PG	M22- I1-PG	M22- I2-PG	M22- I3-PG	M22- I4-PG	M22- I6-PG	M22- I12-PG
Mounting Panel

M22- EY1	M22- E1	M22- E2	M22- E3	M22- E4	M22- E5	M22- E6
Shrouds

M22- H1		M22- H2	M22- H3	M22- H4	M22- H5	M22- H6
		Used to connect shroud to pilot devices on mounting plate. Can break apart for use up to 5 mounting holes
M22- XES				2 Plaster mounts for plastering shrouds M22- UPE		Cable Gland V-M20
Contacts		Base Mount LED's
		Voltages
M22- KC10	M22- KC01	12 - 30 V AC/DC 8 - 15mA	M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
		85 - 264 V AC 50/60 Hz 5 - 15 mA	M22- LEDC230-W	M22- LEDC230-R	M22- LEDC230-G	M22- LEDC230-B
		207 - 264 V AC 50 - 60 Hz 12 - 15 mA	M22- LEDC230H-W	M22- LEDC230H-R	M22- LEDC230H-G	M22- LEDC230H-B

Pushbutton Operators

Click Above Tab to Open Content - Click ↑ to Close

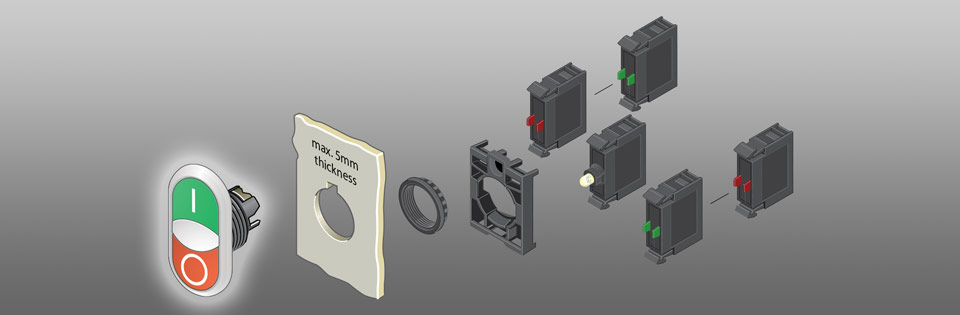

Pushbutton Operators

Double Pushbuttons
	M22- A	M22- DDL-GR-GB1/GB0	M22- DDL-WS	M22- DDL-GR	M22- DDL-S	M22- DDL-W

	M22- A	M22- DL-GR-X1/X0	M22- DDL-WS-X1/X0	M22- DDL-WS-GB1/GB0	M22- DDL-S-X7/X7	M22- DDL- S-X4/X5

Contacts Screw Terminals
	Front Mount		Base Mount
	M22- K10	M22- K01	M22- KC10	M22- KC01

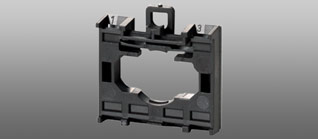

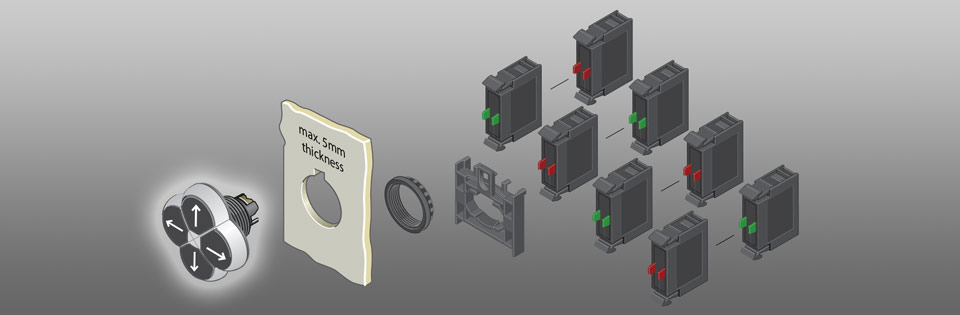

Four Button Pushbutton Operators

Four _Button Operator

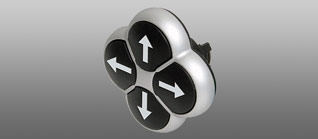

Four _Button Operator	M22- D4-S	M22- A4

Contacts Screw Terminals Front Mounted

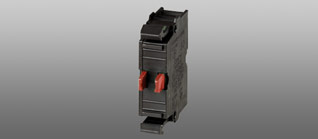

Contacts Screw Terminals Front Mounted	M22- K10	M22- K01

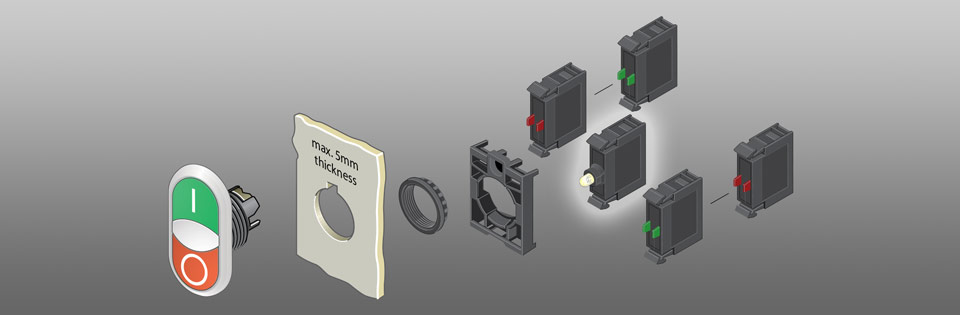

Pushbutton Operator LED's

LED's & Mount Adapter
12-30v AC/DC LED	Screw Terminal Cover Mount	M22-A	M22- LED-W	M22- LED-R	M22- LED-G	M22- LED-B
85-264v AC LED	Screw Terminal Cover Mount		M22- LED-230-W	M22- LED-230-R	M22- LED-230-G	M22- LED-230-B
12-30v AC/DC LED	Screw Terminal Base Mount		M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
85-264v AC LED	Screw Terminal Base Mount		M22- LEDC-230-W	M22- LEDC-230-R	M22- LEDC-230-G	M22- LEDC-230-B

Enclousers

Enclosures

M22- IY1-PG	M22- I1-PG	M22- I2-PG	M22- I3-PG	M22- I4-PG	M22- I6-PG	M22- I12-PG
Mounting Panel

M22- EY1	M22- E1	M22- E2	M22- E3	M22- E4	M22- E5	M22- E6
Shrouds

M22- H1		M22- H2	M22- H3	M22- H4	M22- H5	M22- H6
		Used to connect shroud to pilot devices on mounting plate. Can break apart for use up to 5 mounting holes
M22- XES				2 Plaster mounts for plastering shrouds M22- UPE		Cable Gland V-M20
Contacts		Base Mount LED's
		Voltages
M22- KC10	M22- KC01	12 - 30 V AC/DC 8 - 15mA	M22- LEDC-W	M22- LEDC-R	M22- LEDC-G	M22- LEDC-B
		85 - 264 V AC 50/60 Hz 5 - 15 mA	M22- LEDC230-W	M22- LEDC230-R	M22- LEDC230-G	M22- LEDC230-B
		207 - 264 V AC 50 - 60 Hz 12 - 15 mA	M22- LEDC230H-W	M22- LEDC230H-R	M22- LEDC230H-G	M22- LEDC230H-B
