| Accessories | Description | For Use With... | Moeller Part Number | Eaton Part Number | |||||

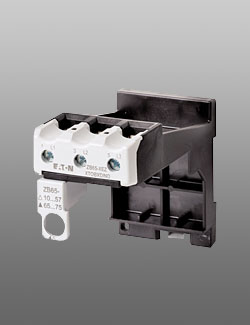

Bases (for separate mounting) |
|||||||||
|
For snap mounting on
EN 50 022 DIN-rail or screw mounting. |
ZB32 | ZB32-XEZ | XTOBXDINC | |||||
| ZB65 | ZB65-XEZ | XTOBXDIND | |||||||

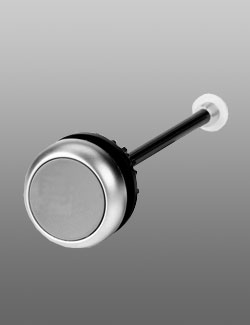

External Reset/Off Pushbuttons (for enclosed overload relays – mounting diameter: 22.5mm) |
|||||||||
|
Actuator and Rod; 4X; IP 65 with:
|
ZE; Z5;
ZW7
ZB12 – ZB150 |
M22-DZ-B-X6 | M22-DZ-B-X6Q | |||||
Actuator and Rod; 4X; IP 65 with:
|
M22-DZ-B-GB14 | M22-DZ-B-GB14Q | |||||||
Actuator and Rod; 4X; IP65 without button plate Order with button plate from selection below:
|
ZE; Z5; ZW7
ZB12 – ZB150 |
M22-DZ-X | M22-DZ-XQ | ||||||
|
Order
with M22-DZ-X
above to complete accessory unit. |
M22-XD-R | M22-XD-RQ | |||||||
| M22-XD-R-X0 | M22-XD-R-X0Q | ||||||||
| M22-XD-R-GB0 | M22-XD-R-GB0Q | ||||||||
|
|

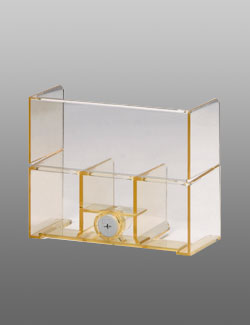

Z5-…/FF250 | Z5/FF250-XHB | XTOBXTSL | |||||
|
|
Direct mounting of
Z5-…/FF250 to DILM185, DILM225, DILM250 |

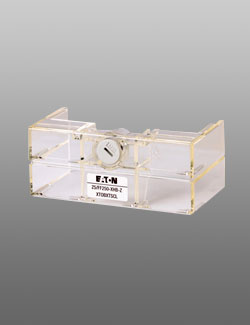

Z5/FF250-XHB-Z | XTOBXTSCL | |||||

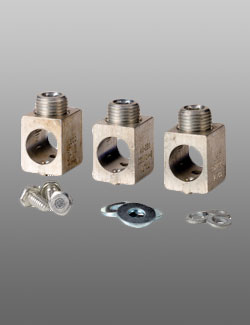

Set of box terminals |
|||||||||
|
One set of three terminals.
Wire size: #6 AWG – 350 MCM UL Recognized/CSA Approved. |
Z5-…/FF250 | Z5-FF250-XK-CNA | XTOBXTLL | |||||
ZEV Electronic Motor-Protective Relay Accessories |
|||||||||

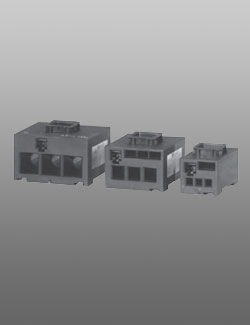

| Current Sensors |
Adjustable
Settings Range (A) |
Length
(mm) |
Diameter
(mm) |
For Use With... | Part Number |
|
1-25 | - | 6 | DILEM; DILM7 – DILM25 | ZEV-XSW-25 |
| 3-65 | - | 13 | DILM32 – DILM50 | ZEV-XSW-65 | |
| 10-145 | - | 21 | DILM65 – DILM115 | ZEV-XSW-145 | |
|

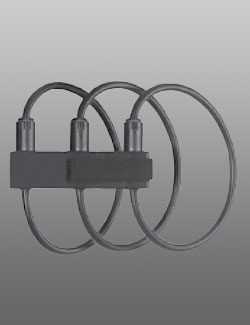

40 – 820 | - | 110 | DILM185 – DILM820 | ZEV-XSW-820 |

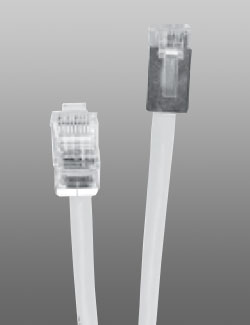

Connecting Cables |
|||||
|
- | 200 | - |
ZEV-XSW-25
ZEV-XSW-65 ZEV-XSW-145 ZEV-XSW-820 |
ZEV-XVK-20 |
| - | 400 | - | ZEV-XVK-40 | ||
| - | 800 | - | ZEV-XVK-80 | ||

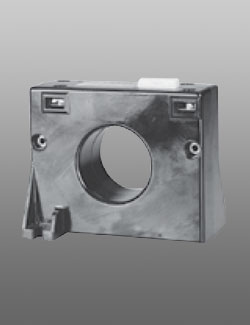

SSW Core-Balance Transformers (for ground-leakage monitoring) |
|||||
| Accessory |
Diameter
(mm) |
For Use With... |
Fault
Current (A) |
Part Number |
|
40 | - | 0.3 | SSW40-0,3 |
| 40 | - | 0.5 | SSW40-0,5 | |
| 40 | - | 1 | SSW40-1 | |
| 65 | - | 0.5 | SSW65-0,5 | |
| 65 | - | 1 | SSW65-1 | |
| 120 | - | 0.5 | SSW120-0,5 | |
| 120 | - | 1 | SSW120-1 | |
|

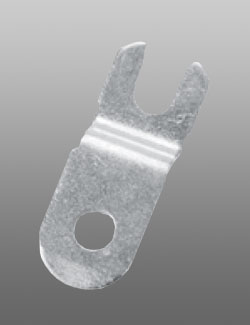

Enables screw
mounting of ZEV and Current Sensors to back pan |
ZEV
ZEV-XSW-25 ZEV-XSW-65 ZEV-XSW-145 |
- | ZB4-101-GF1 |
