Eaton Klockner Moeller CONTACTORS up to 170 Amp

Moeller DILEM / Eaton XTMC-Frame A 45mm (1.77) Wide

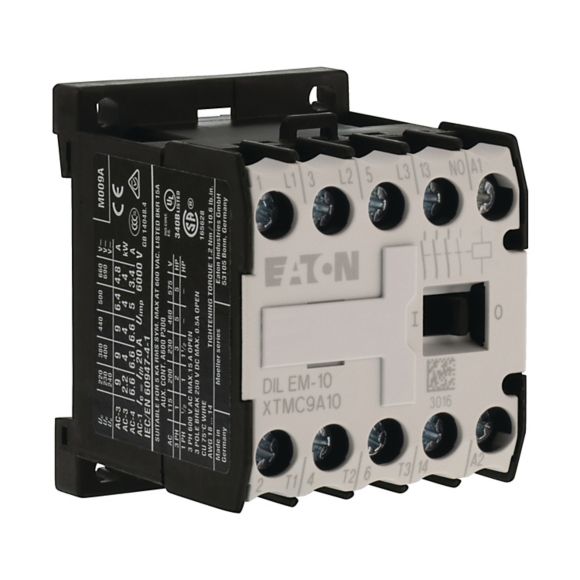

Moeller DILEM / Eaton XTMC-Frame A 3-Pole Contactor

Amps		HP@		AUX	MOELLER	EATON
AC-3	AC-1	240	480
					DILEEM	XTMC6A
6	xx	2	3	N.O.	DILEEM-10 ⁽²⁾	XTMC6A10 ^(x)
				N.C.	DILEEM-01 ⁽²⁾	XTMC6A01 ^(x)
6	xx	2	3	N.O.	DILEEM-10-G ⁽²⁾	XTMC6A10 ^(x)
				N.C.	DILEEM-01-G ⁽²⁾	XTMC6A01 ^(x)
					DILEM	XTMC9A
9	xx	3	5	N.O.	DILEM-10 ⁽²⁾	XTMC9A10 ^(x)
				N.C.	DILEM-01 ⁽²⁾	XTMC9A01 ^(x)
9	xx	3	5	N.O.	DILEM-10-G ⁽²⁾	XTMC9A10 ^(x)
				N.C.	DILEM-01-G ⁽²⁾	XTMC9A01 ^(x)

⁽²⁾ Insert Coil Voltage ^(x) For Eaton # Replace "x" with Coil Code from Chart Below

Moeller DILEM / Eaton XTMC-Frame A 45mm (1.77) Wide

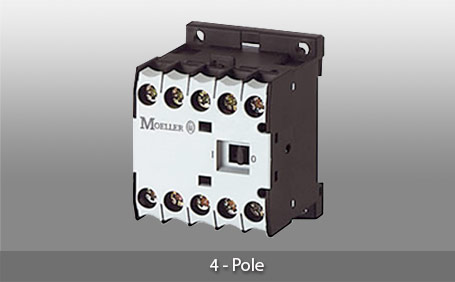

Moeller DILEM / Eaton XTMC-Frame A 4-Pole Contactor

Amps		HP@		Poles	MOELLER	EATON
AC-3	AC-1	240	480
9	xxx	3	5	4	DILEM4 ⁽²⁾	XTMF9A10 ^(x)
				4	DILEM4-G ⁽²⁾	XTMF9A01 ^(x)

⁽²⁾ Insert Coil Voltage ^(x) For Eaton Number Replace "x" with Coil Code from Chart Below

(x) Eaton Part Number Coil Voltage Suffix Chart

Coil Voltage	Suffix Code
110V 50Hz, 120V 60Hz	A
220V 50Hz, 240V 60Hz	B
24V 50/60Hz	T
415V 50Hz, 480V 60Hz	C
550V 50Hz, 600V 60Hz	D

Coil Voltage	Suffix Code
208V 60Hz	E
190V 50Hz, 220V 60Hz	G
240V 50Hz, 277V 60Hz	H
380V 50Hz, 440V 60Hz	L
380V 60Hz	P

Coil Voltage	Suffix Code
12V 50/60Hz	R
42V 50Hz, 48V 60Hz	W
48V 50Hz	Y

Coil Voltage	Suffix Code
120Vdc	AD
220Vdc	BD
48Vdc	WD
24Vdc	TD
12Vdc	RD

3 Pole Industrial Contactor - Frame B 45mm (1.77) Wide

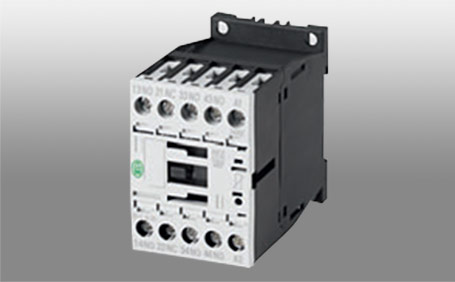

Eaton Moeller DILM7-DILM15 XTCE Contactors

Amps		HP@		AUX	MOELLER	EATON
AC-3	AC-1	240	480	AUX	MOELLER	EATON
					DILM7	XTCE007
7	20	2	3	N.O.	DILM7-10 ⁽²⁾	XTCE007B10 ^(x)
7	20	2	3	N.C.	DILM7-01 ⁽²⁾	XTCE007B01 ^(x)
					DILM9	XTCE009
9	20	3	5	N.O.	DILM9-10 ⁽²⁾	XTCE009B10 ^(x)
9	20	3	5	N.C.	DILM9-01 ⁽²⁾	XTCE009B01 ^(x)
					DILM12	XTCE012
12	20	5	10	N.O.	DILM12-10 ⁽²⁾	XTCE012B10 ^(x)
12	20	5	10	N.C.	DILM12-01 ⁽²⁾	XTCE012B01 ^(x)
					DILM15	XTCE015
15	20	5	10	N.O.	DILM15-10 ⁽²⁾	XTCE015B10 ^(x)
15	20	5	10	N.C.	DILM15-01 ⁽²⁾	XTCE015B01 ^(x)

⁽²⁾ Insert Coil Voltage ^(x) For Eaton # Replace "x" with Coil Code from Chart Below

3 Pole Industrial Contactor - Frame C 45mm (1.77) Wide

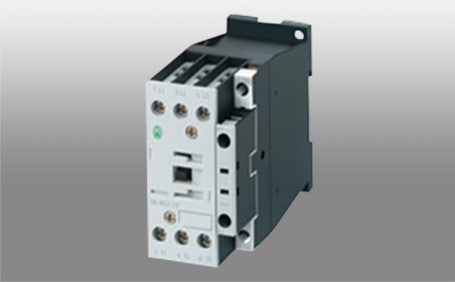

Eaton Moeller DILM17-DILM32 XTCE Contactors

Amps		HP@		AUX	MOELLER	EATON
AC-3	AC-1	240	480	AUX	MOELLER	EATON
					DILM17	XTCE018
17	40	5	10	N.O.	DILM17-10 ⁽²⁾	XTCE018C10 ^(x)
17	40	5	10	N.C.	DILM17-01 ⁽²⁾	XTCE018C01 ^(x)
					DILM25	XTCE025
25	40	5	10	N.O.	DILM25-10 ⁽²⁾	XTCE025C10 ^(x)
25	40	5	10	N.C.	DILM25-01 ⁽²⁾	XTCE025C01 ^(x)
					DILM32	XTCE032
32	40	10	20	N.O.	DILM32-10 ⁽²⁾	XTCE032C10 ^(x)
32	40	10	20	N.C.	DILM32-01 ⁽²⁾	XTCE032C01 ^(x)

⁽²⁾ Insert Coil Voltage ^(x) For Eaton Number Replace "x" with Coil Code from Chart Below

(x) Eaton Part Number Coil Voltage Suffix Chart

Coil Voltage	Suffix Code
110V 50Hz, 120V 60Hz	A
220V 50Hz, 240V 60Hz	B
24V 50/60Hz	T
415V 50Hz, 480V 60Hz	C
550V 50Hz, 600V 60Hz	D

Coil Voltage	Suffix Code
208V 60Hz	E
190V 50Hz, 220V 60Hz	G
240V 50Hz, 277V 60Hz	H
380V 50Hz, 440V 60Hz	L
380V 60Hz	P

Coil Voltage	Suffix Code
12V 50/60Hz	R
42V 50Hz, 48V 60Hz	W
48V 50Hz	Y

Coil Voltage	Suffix Code
120Vdc	AD
220Vdc	BD
48Vdc	WD
24Vdc	TD
12Vdc	RD

3 Pole Industrial Contactor - Frame D 55mm (2.165) Wide

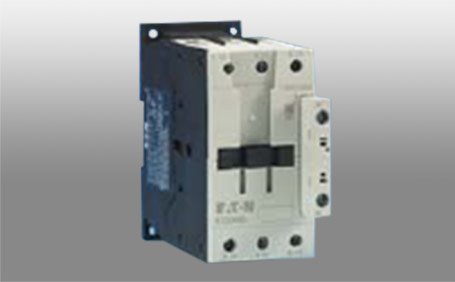

Eaton Moeller DILM40-DILM72 XTCE Contactors

Amps		HP@		AUX	MOELLER	EATON
AC-3	AC-1	240	480	AUX	MOELLER	EATON
					DILM40	XTCE040
40	50	15	30	--	DILM40 ⁽²⁾	XTCE040D00 ^(x)
40	50	15	30	--	--	--
					DILM50	XTCE050
50	60	20	40	--	DILM50 ⁽²⁾	XTCE050D00 ^(x)
50	60	20	40	--	--	--
					DILM65	XTCE065
65	72	25	50	--	DILM65 ⁽²⁾	XTCE065D00 ^(x)
65	72	25	50	--	--	--
					DILM72	XTCE072
72	88	25	50	--	DILM72 ⁽²⁾	XTCE072D00 ^(x)
72	88	25	50	--	--	--

⁽²⁾ Insert Coil Voltage ^(x) For Eaton # Replace "x" with Coil Code from Chart Below

3 Pole Industrial Contactor - Frame F 90mm (3.54) Wide

Eaton Moeller DILM80-DILM95 XTCE Contactors

Amps		HP@		AUX	MOELLER	EATON
AC-3	AC-1	240	480
					DILM80	XTCE080
80	110	30	60	--	DILM80 ⁽²⁾	XTCE080F00 ^(x)
				--	--	--
					DILM95	XTCE095
95	110	40	75	--	DILM95 ⁽²⁾	XTCE095F00 ^(x)
				--	--	--

⁽²⁾ Insert Coil Voltage ^(x) For Eaton Number Replace "x" with Coil Code from Chart Below

3 Pole Industrial Contactor - Frame G 90mm (3.54) Wide

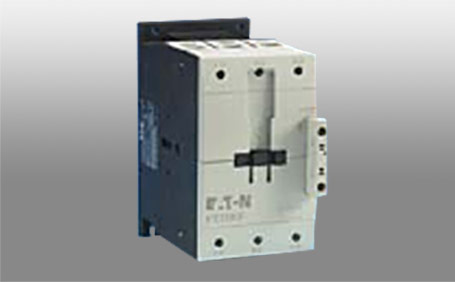

Eaton Moeller DILM115-DILM170 XTCE Contactors

Amps		HP@		AUX	MOELLER	EATON
AC-3	AC-1	240	480	AUX	MOELLER	EATON
					DILM115	XTCE115
115	160	50	100	--	DILM115 ⁽²⁾	XTCE115G00 ^(x)
115	160	50	100	--	--	--
					DILM150	XTCE150
150	160	60	125	--	DILM150 ⁽²⁾	XTCE150G00 ^(x)
150	160	60	125	--	--	--
					DILM170	XTCE170
170	225	60	125	--	DILM170 ⁽²⁾	XTCE170G00 ^(x)
170	225	60	125	--	--	--

⁽²⁾ Insert Coil Voltage ^(x) For Eaton # Replace "x" with Coil Code from Chart Below

(x) Eaton Part Number Coil Voltage Suffix Chart

Coil Voltage	Suffix Code
110V 50Hz, 120V 60Hz	A
220V 50Hz, 240V 60Hz	B
24V 50/60Hz	T
415V 50Hz, 480V 60Hz	C
550V 50Hz, 600V 60Hz	D

Coil Voltage	Suffix Code
208V 60Hz	E
190V 50Hz, 220V 60Hz	G
240V 50Hz, 277V 60Hz	H
380V 50Hz, 440V 60Hz	L
380V 60Hz	P

Coil Voltage	Suffix Code
12V 50/60Hz	R
42V 50Hz, 48V 60Hz	W
48V 50Hz	Y

Coil Voltage	Suffix Code
120Vdc	AD
220Vdc	BD
48Vdc	WD
24Vdc	TD
12Vdc	RD
