Eaton Klockner Moeller CONTACTORS

Eaton Klockner Moeller CONTACTORS

Top Mount - Standard Terminal Markings

Top Mount - Alternative Terminal Markings

Top Mount - Standard Terminal Markings

Top Mount - Alternative Terminal Markings

Side Mount - Alternative Terminal Markings

Top Mount - High Version

Top Mount - Standard Terminal Markings

Top Mount - Alternative Terminal Markings

Side Mount - Standard Terminal Markings

Side Mount - Alternative Terminal Markings

RC Suppressors (1)

Varistor Suppressors (1)

Varistor Suppessor with Integrated LED (1)

Free-Wheel Diode Suppressor

Voltage Indicator

Transparent Cover

Amplifier Module

4th Pole

Star-Point Bridges

Paralleling Bridges (Consisting of two paralleling links)

Three-phase Commoning Links

Flat Strip Conductor Terminal Kit

Control Circuit Tap

Sealable Shrouds

Terminal Insert

Terminal Cover

RC Suppressors ₍₁₎

Varistor Suppressors ₍₁₎

Varistor Suppessor with Integrated LED ₍₁₎

Auxiliary Contact Modules (for DILEM Miniature Contactors) _{(1) (2)}

Auxiliary Contact Modules (for DILM7 thru DILM32 Contactors) _(1)(2)(3)

Auxiliary Contact Modules (for DILM40 thru DILM150 Contactors) _{(1) (2)}

Auxiliary Contact Modules (for DILM1000 Contactors)

Suppressors and Voltage Indicator ₍₁₎

Electronic Timing Modules

Miscellaneous Modules

Connectors

Mechanical Interlocks

Reversing Kits

Star-Delta Wiring Kits

Bridges, Links and Jumpers

Connection Tabs

Terminal Blocks, Lugs, Kits and Accessories ₍₁₎

Covers

Device Labeling

Auxiliary Contact Modules (for DILEM Miniature Contactors) (1) (2)

Auxiliary Contact Modules (for DILM7 thru DILM32 Contactors) (1)(2)(3)

Auxiliary Contact Modules (for DILM40 thru DILM150 Contactors) (1) (2)

Auxiliary Contact Modules (for DILM1000 Contactors)

Suppressors and Voltage Indicator (1)

Electronic Timing Modules

Miscellaneous Modules

Connectors

Mechanical Interlocks

Reversing Kits

Star-Delta Wiring Kits

Bridges, Links and Jumpers

Connection Tabs

Terminal Blocks, Lugs, Kits and Accessories (1)

Covers

Device Labeling

Auxiliary Contact Modules (for DILEM Miniature Contactors) _{(1) (2)}

Auxiliary Contact Modules (for DILM7 thru DILM32 Contactors) _(1)(2)(3)

Auxiliary Contact Modules (for DILM40 thru DILM150 Contactors) _{(1) (2)}

Suppressors and Voltage Indicator ₍₁₎

Terminal Blocks, Lugs, Kits and Accessories ₍₁₎

CONTACT

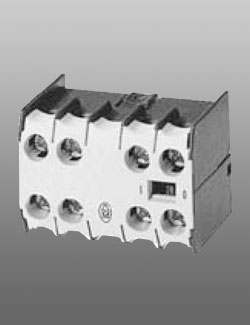

Auxiliary	NO	NC	Schematic	For Use With...	Moeller Part Number	Eaton Part Number
Top Mount - Standard Terminal Markings

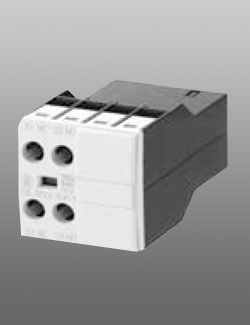

	0	2		Moeller: DILEM-10 DILEM-4 Eaton: XTMC9A XTMF9A	02DILEM	XTMCXFC02
	1	1			11DILEM	XTMCXFD11
	2	2			22DILEM	XTMCXFC22
Top Mount - Alternative Terminal Markings

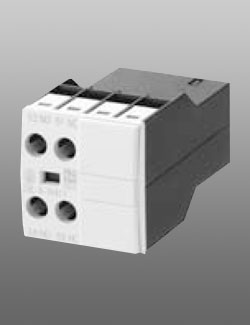

	0	2		Moeller: DILEM, DILER Eaton: XTMC, XTRM Moeller DILEM-01's will NOT accept any auxiliary contacts Eaton XTMC9A will NOT accept any auxiliary contacts	02DILE	XTMCXFA02
	1	1			11DILE	XTMCXFA11
	2	0			20DILE	XTMCXFA20
	1EM ₍₃₎	1LB ₍₃₎			11DDILE	XTMCXFAL11

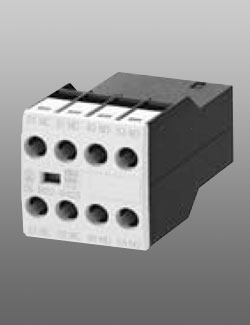

	0	4			04DILE	XTMCXFA04
	1	3			13DILE	XTMCXFA13
	2	2			22DILE	XTMCXFA22
	3	1			31DILE	XTMCXFA31
	4	0			40DILE	XTMCXFA40
	1+ 1EM ₍₃₎	1+ 1LB ₍₃₎			22DDILE	XTMCXFAL22

Notes:

(1) DILE Terminal Markings comply with European Standards EN 50005 while DILEM Terminal Markings comply with EN 50005 and EN 50012.
(2) Auxiliary Contact Modules have interlocked opposing contacts (does not apply to early-make or late-break contacts).
(3) EM = Early Make / LB = Late Break.

Auxiliary	NO	NC	Schematic	For Use With...	Moeller Part Number	Eaton Part Number
Top Mount - Standard Terminal Markings

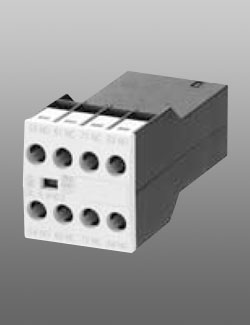

	0	2		Moeller: DILM7-10 thru DILM32-10 ₍₄₎ Eaton: XTCE007B thru XTCE032C	DILM32-XHI11	XTCEXSCC11
	1	1			DILM32-XHI02	XTCEXFCC02
	2	2			DILM32-XHI22	XTCEXFCC22
Top Mount - Alternative Terminal Markings

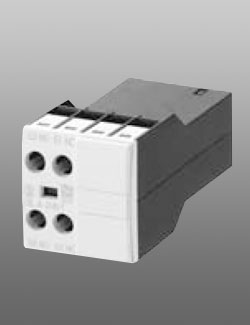

	2	0		Moeller: DILM7 thru DILM32 Eaton: XTCE007 thru XTCE032	DILA-XHI20	XTCEXFAC20
	1	1			DILA-XHI11	XTCEXFAC11
	0	2			DILA-XHI02	XTCEXFAC02
	1EM ₍₅₎	1LB ₍₅₎			DILA-XHIV11	XTCEXFALC11
	4	0			DILA-XHI40	XTCEXFAC40
	3	1			DILA-XHI31	XTCEXFAC31
	2	2			DILA-XHI22	XTCEXFAC22
	1	3			DILA-XHI13	XTCEXFAC13
	0	4			DILA-XHI04	XTCEXFAC04
	1+ 1EM ₍₅₎	1+ 1LB ₍₅₎			DILA-XHIV22	XTCEXFCLC22

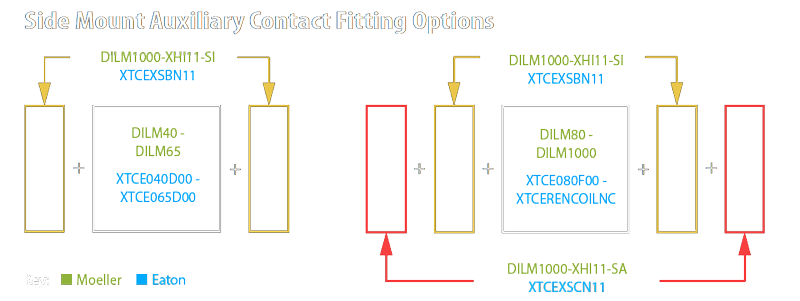

Side Mount - Alternative Terminal Markings

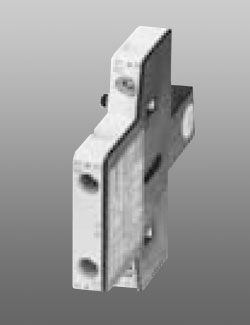

	1	1		Moeller: DILM17 thru DILM32 ₍₆₎₍₇₎ Eaton: XTCE018C XTCE032C	DILM32-XHI11-S	XTCEXSCC11
Top Mount - High Version
	2	0		Moeller: DILM7 thru DILM12 contactors when using the PKZM0-XDM12 Quick Connector or DILM12-XRL Reversing Kit. Eaton: XTCE007 thru XTCE012 contactors when using the XTPAXTPCB Quick Connector or XTCEXRLB Reversing Kit.	DILA-XHIT20	XTCEXFATC20
	1	1			DILA-XHIT11	XTCEXFATC11
	0	2			DILA-XHIT02	XTCEXFATC02
	2	2			DILA-XHIT22	XTCEXFATC22

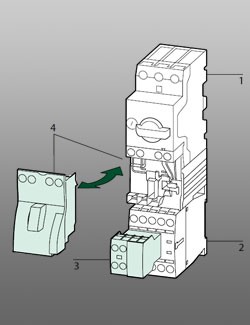

Application Note: Top Mount-High Version auxiliary contact blocks are intended for use when combining DILM7 – 12 contactors with Moeller’s PKZM0 self-protected starter. These contactors are designed to accept a “tool-less” plug connection (PKZM0-XDM12) that physically connects the two devices. The high profile of the auxiliary contact blocks allows access to the terminals after the plug connector is in place. 1. PKZMO 2. DILM7 - DILM12 3. DILA - XHIT 4. PKZM0 - XDM12

Notes:

(1) DILM-7 – DILM-32 contactors include a built-in one pole auxiliary contact.
(2) Positively guided contacts with DILM7 – DILM32 between the integrated auxiliary contact and auxiliary contact module, as well as within the auxiliary contact modules (except DILA-XHIV11 early make/late break).
(3) Mirror contact with DILM7-01 – DILM32-01, as well as in combination with auxiliary contact modules.
(4) The 2 and 4-pole DILM32-XHI… auxiliary contact modules with terminal markings 21/22 cannot be used with DILM…-01 contactors. Use Top Mount DILAXHI… with Alternative Terminal Markings instead.
(5) EM = Early Make / LB = Late Break
(6) Snaps on to left side of contactor. Cannot be combined with top-mount auxiliary contacts or mechanical interlocks.
(7) Designed for use with contactors manufactured after date code of “4405” (4405 = week 44 of year 2005).

Auxiliary	NO	NC	Schematic	For Use With...	Moeller Part Number	Eaton Part Number
Top Mount - Standard Terminal Markings

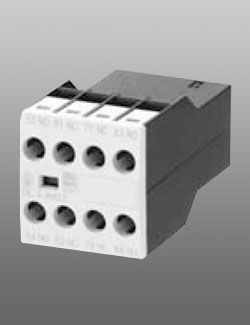

	2	0		Moeller: DILEM-40 thru DILM-150 Eaton: XTMC thru XTCE	DILM150-XHI20	XTCEXFBG20
	1	1			DILM150-XHI11	XTCEXFBG11
	0	2			DILM150-XHI02	XTCEXFBG02
	4	0			DILM150-XHI40	XTCEXFBG40
	3	1			DILM150-XHI31	XTCEXFBG31
	2	2			DILM150-XHI22	XTCEXFBG22
	1	3			DILM150-XHI13	XTCEXFBG13
	0	4			DILM150-XHI04	XTCEXFBG04
	1+ 1EM ₍₃₎	1+ 1LB ₍₃₎			DILM150-XHIV22	XTCEXFBLG22
Top Mount - Alternative Terminal Markings
	1	1		Moeller: DILM40 thru DILM150 Eaton: XTCE40 thru XTCE150	DILM150-XHIA11	XTCEXFAG11
	2	2		Moeller: DILM40 thru DILM150 Eaton: XTCE40 thru XTCE150	DILM150-XHIA22	XTCEXFAG22

Notes:

(1) Positively guided contacts with DILM40 – DILM65 within the auxiliary contact module.
(2) Mirror contact with DILM40 – DILM65 in combination with auxiliary contact module.
(3) EM = Early Make. / LB = Late Break.

Module	Description	Supply Voltage	Schematic	For Use With...	Moeller Part Number	Eaton Part Number
RC Suppressors ₍₁₎
	For AC operated contactors (50 – 60 Hz) Please be aware that RC Suppressors can cause a drop-out delay	24-48V AC		Moeller: DILEM DILER Eaton: XTMC9A XTRM10A	RCDILE48	XTMCXRSW
		110-250V AC		Moeller: DILEM DILER Eaton: XTMC9A XTRM10A	RCDILE250	XTMCXRSB
	For AC operated contactors (50 – 60 Hz) DC operated Contactors have an integrated suppressor. Please be aware that Suppressors can cause a drop-out delay	24-48V AC		Moeller: DILM7 thru DILM12 DILMP20 DILA Eaton: XTCE007 thru XTCE012B XTCF020B XTCEXFA	DILM12-XSPR48	XTCEXRSBW
		110-240V AC			DILM12-XSPR240	XTCEXRSBB
		240-500V AC			DILM12-XSPR500	XTCEXRSBC
		24-48V AC		Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XSPR48	XTCEXRSCW
		110-240V AC			DILM32-XSPR240	XTCEXRSCB
		240-500V AC			DILM32-XSPR500	XTCEXRSCC
		24-48V AC		Moeller: DILM40 thru DILM95 Eaton: XTCE040D thru XTCE095F	DILM95-XSPR48	XTCEXRSFW
		110-240V AC			DILM95-XSPR240	XTCEXRSFB
		240-500V AC			DILM95-XSPR500	XTCEXRSFC
Varistor Suppressors ₍₁₎
	For AC operated contactors (50 – 60 Hz) DC operated Contactors have an integrated suppressor	24-48V AC		Moeller: DILEM DILER Eaton: XTMC9A XTRM10A	VGDILE48	XTMCXVSW
		110-250V AC			VGDILE250	XTMCXVSB
		380-415V AC			VGDILE415	XTMCXVSN
	For AC operated contactors (50 – 60 Hz) DC operated Contactors have an integrated suppressor	24-48V AC		Moeller: DILM7 thru DILM12 DILMP20 DILA Eaton: XTCE007 thru XTCE012B XTCF020B XTCEXFA	DILM12-XSPV48	XTCEXVSBW
		48-130V AC			DILM12-XSPV130	XTCEXVSBA
		130-240V AC			DILM12-XSPV240	XTCEXVSBB
		240-500V AC			DILM12-XSPV500	XTCEXVSBC
		24-48V AC		Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XSPV48	XTCEXVSCW
		48-130V AC			DILM32-XSPV130	XTCEXVSCA
		130-240V AC			DILM32-XSPV240	XTCEXVSCB
		240-500V AC			DILM32-XSPV500	XTCEXVSCC
		24-48V AC		Moeller: DILM40 thru DILM95 Eaton: XTCE040D thru XTCE095F	DILM95-XSPV48	XTCEXVSFW
		48-130V AC			DILM95-XSPV130	XTCEXVSFA
		130-240V AC			DILM95-XSPV240	XTCEXVSFB
		240-500V AC			DILM95-XSPV500	XTCEXVSFC
Varistor Suppessor with Integrated LED ₍₁₎
	For AC operated contactors (50 – 60 Hz) DC operated Contactors have an integrated suppressor	24-48V AC		Moeller: DILM7 thru DILM12 DILMP20 DILA Eaton: XTCE007 thru XTCE012B XTCF020B XTCEXFA	DILM12-XSPVL48	XTCEXVSLBW
		130-240V AC			DILM12-XSPVL240	XTCEXVSLBB
		24-48V AC		Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM12-XSPVL240	XTCEXVSLBB
		130-240V AC		Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XSPVL240	XTCEXVSLCB
		24-48V AC		Moeller: DILM40 thru DILM95 Eaton: XTCE040D thru XTCE095F	DILM95-XSPVL48	XTCEXVSLFW
		130-240V AC		Moeller: DILM40 thru DILM95 Eaton: XTCE040D thru XTCE095F	DILM95-XSPVL240	XTCEXVSLFB
Free-Wheel Diode Suppressor
	For DC operated Contactors. Functions in addition to the built-in DC suppressor circuit. Prevents negative breaking voltage when relays are used with sensitive electronics.	12-250V DC		Moeller: DILM7 thru DILM12 DILMP20 DILA Eaton: XTCE007 thru XTCE012B XTCF020B XTCEXFA	DILM12-XSPD	XTCEXDSB
Voltage Indicator
	Indicates presence of control voltage. For DC operated Contactors.	12-48V AC		Moeller: DILM7 thru DILM12 DILMP20 DILA Eaton: XTCE007 thru XTCE012B XTCF020B XTCEXFA	DILM12-XSPI48
		48-130V AC			DILM12-XSPI130
		110-250V AC			DILM12-XSPI250
		RDC24		Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XSPI48
		RDC60; RDC130			DILM32-XSPI130
		RDC240			DILM32-XSPI250
	For DC operated contactors DILM40 – DILM95 and AC or DC contactors DILM115 and DILM150	RDC24; RAC24; RAC48		Moeller: DILM40 thru DILM150 Eaton: XTCE040D thru XTCE150G	DILM150-XSPI48
		RDC120; RAC60; RAC130			DILM150-XSPI130
		RDC240; RAC240			DILM150-XSPI250

Notes:

(1) RC Suppressor and Varistor Suppressor cannot be used at the same time.

Module	Description	Supply Voltage	Timing Range (sec)	Schematic	For Use With...	Moeller Part Number	Eaton Part Number
	ON delay May not be combined with Auxiliary Contact Blocks, Suppressors or Voltage Indicator.	24V AC/DC	Selectable: 0.05 – 1 0.5 – 10 5 – 100		Moeller: DILM7 thru DILM32 DILMP20 DILA Eaton: XTCE007 thru XTCE032C XTCF020B XTCEXFA	DILM32-XTEE11(RA24)	XTCEXTEEC11T
		100 – 130V AC				DILM32-XTEE11(RAC130)	XTCEXTEEC11A
		200 – 240V AC				DILM32-XTEE11(RAC240)	XTCEXTEEC11B
	OFF delay May not be combined with Auxiliary Contact Blocks, Suppressors or Voltage Indicator.	24V AC/DC	0.05-1		Moeller: DILM7 thru DILM32 DILMP20 DILA Eaton: XTCE007 thru XTCE032C XTCF020B XTCEXFA	DILM32-XTED11-1(RA24)	XTCEXTED1C11T
			0.5-10			DILM32-XTED11-10(RA24)	XTCEXTED10C11T
			5-100			DILM32-XTED11-100(RA24)	XTCEXTED100C11T
		100 – 130V AC	0.05-1			DILM32-XTED11-1(RAC130)	XTCEXTED1C11A
			0.5-10			DILM32-XTED11-10(RAC130)	XTCEXTED10C11A
			5-100			DILM32-XTED11-100(RAC130)	XTCEXTED100C11A
		200 – 240V AC	0.05-1			DILM32-XTED11-1(RAC240)	XTCEXTED1C11B
			0.5-10			DILM32-XTED11-10(RAC240)	XTCEXTED10C11B
			5-100			DILM32-XTED11-100(RAC240)	XTCEXTED100C11B
	STAR-DELTA applications May not be combined with Auxiliary Contact Blocks, Suppressors or Voltage Indicator.	24V AC/DC	1 – 30 Switching break, 50ms		Moeller: DILM7 thru DILM32 DILMP20 Eaton: XTCE007 thru XTCE032C XTCF020B	DILM32-XTEY20(RA24)	XTCEXTEYC20T
		100 – 130V AC				DILM32-XTEY20(RAC130)	XTCEXTEYC20A
		200 – 240V AC				DILM32-XTEY20(RAC240)	XTCEXTEYC20B
Transparent Cover
	Snap-mounts onto the Timing Module to prevent tampering				Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XTEPLH	XTCEXTESHRD

Module	Description	Supply Voltage	Schematic	For Use With...	Moeller Part Number	Eaton Part Number
Amplifier Module
	DC operated Interposing relay that provides a dry contact signal to activate an AC operated Contactor or Relay; Actuates on as little as 25mA	24V DC [25mA…2A] ₍₁₎		When 24V DC low current [25mA…2A] control is required to operate AC coils ₍₁₎	ETS4-VS3	-
4th Pole
	Only for resistive loads. Suitable for isolating non-grounded and poorly grounded neutral conductors	30 A		Moeller: DILM40 Eaton: XTCE040D	NDIL0M	-
		44 A		Moeller: DILM40 Eaton: XTCE040D	NDIL1M	-
		60 A		Moeller: DILM50 thru DILM65 Eaton: XTCE050D thru XTCE065D	NDIL2M	-

Notes:

(1) When contactor AC coil is over 2A, use DILER or DILEM-G relay instead.

Connector	Description	For Use With...	Moeller Part Number	Eaton Part Number
	Provides a mechanical link when coupling multiple contactors together Distance between Contactors = 0 mm	Moeller: DILEM Eaton: XTMC9A	V0DILE	XTMCXCN
		Moeller: DILM7 thru DILM65 Eaton: XTCE007B thru XTCE065D	DILM32-XVB (sold in 50 pack only price shown is for each)	XTCEXCNC
		Moeller: DILM80 thru DILM150 Eaton: XTCE080F thru XTCE150G	DILM150-XVB	XTCEXCNG

Mechanical Interlocks	Description	For Use With...	Moeller Part Number	Eaton Part Number
	For two contactors with AC or DC operated magnet systems Distance between Contactors = 0 mm Mechanical Lifespan = 2.5 x 10 ⁶ operations Additional auxiliary contact modules can be fitted	Moeller: DILEM Eaton: XTMC9A	MVDILE	XTMCXML
	For two contactors with AC or DC operated magnet systems Distance between Contactors = 0 mm Mechanical Lifespan = 2.5 x 10 ⁶ operations Additional auxiliary contact modules can be fitted	Moeller: DILM7 thru DILM12 DILMP20 Eaton: XTCE007 thru XTCE012B XTCF020B	DILM12-XMV	XTCEXMLB
		Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XMV	XTCEXMLC
		Moeller: DILM40 thru DILM65 Eaton: XTCE040D thru XTCE065D	DILM65-XMV	XTCEXMLD
		Moeller: DILM80 thru DILM150 Eaton: XTCE080F thru XTCE150G	DILM150-XMVE	XTCEXMLGB
	Same as above; includes mounting plate	Moeller: DILM80 thru DILM150 Eaton: XTCE080F thru XTCE150G	DILM150-XMV	XTCEXMLG
	For two contactors with the same or different magnetic systems Mechanical lifespan 5 x 10 ⁶ operations. No auxiliary contact is possible between the mechanical interlock and contactor Combination with same frame size only Distance between contactors: 15 mm	Moeller: DILM185 thru DILM500 Eaton: XTCE185L thru XTCE500M	DILM500-XMV	XTCEXMLM
	For two contactors with the same or different magnetic systems Mechanical lifespan 5 x 10 ⁶ operations. No auxiliary contact is possible between the mechanical interlock and contactor DILM820-XMV consists of interlock element and mounting support plate	Moeller: DILM580 thru DILM1000 Eaton: XTCE580N thru XTCERENCOILNC	DILM820-XMV	XTCEXMLN

Reversing Kits	Description	For Use With...	Moeller Part Number	Eaton Part Number
	For two contactors with AC or DC operated magnet systems Distance between Contactors = 0 mm Mechanical Lifespan = 2.5 x 10 ⁶ operations Additional auxiliary contact modules can be fitted	Moeller: DILEM+MVDILEM	MVS-WB-EM	XTMCXRL
	Main current wiring for reversing combinations Tool-less plug connection on face of contactor Control cables are integrated, in addition to electrical interlock If using auxiliary contacts, use Top Mount - High Version (DILA-XHIT…)	Moeller: DILM7 thru DILM12 Eaton: XTCE007B thru XTCE012B	DILM12-XRL	XTCEXRLB
	Main current wiring for reversing combinations	Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XRL	XTCEXRLC
		Moeller: DILM40 thru DILM65 Eaton: XTCE040D thru XTCE065D	DILM65-XRL	XTCEXRLD
		Moeller: DILM80 thru DILM150 Eaton: XTCE080F thru XTCE150G	DILM150-XRL	XTCEXRLG

Star-Delta Wiring Kit	Description	For Use With...	Moeller Part Number	Eaton Part Number
	Main current wiring for star-delta combinations (including star-point bridge) Tool-less plug connection on face of contactor Control cables are integrated, in addition to electrical interlock If using auxiliary contacts, use Top Mount - High Version (DILA-XHIT…)	Moeller: DILM7 thru DILM12 Eaton: XTCE007B thru XTCE012B	DILM12-XSL	XTCEXSDLB
	Main current wiring for star-delta combinations	Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XSL	XTCEXSDLC
	Main current wiring for star-delta combinations	Moeller: DILM40 thru DILM65 Eaton: XTCE040D thru XTCE065D	DILM65-XSL	XTCEXSDLD

Bridges	Description	For Use With...	Moeller Part Number	Eaton Part Number
Star-Point Bridges
	Finger-safe (in accordance with IEC 536)	Moeller: DILEM Eaton: XTMC9A	S1DILEM	XTMCXSDB
		Moeller: DILM7 thru DILM12 Eaton: XTCE007B thru XTCE012B	DILM12-XS1 ₍₁₎	XTCEXSDBB
		Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XS1	XTCEXSDBC
		Moeller: DILM40 thru DILM65 Eaton: XTCE040D thru XTCE065D	DILM65-XS1	XTCEXSDBD
		Moeller: DILM80 thru DILM150 Eaton: XTCE080F thru XTCE150G	DILM150-XS1	XTCEXSDBG
	A cover is included for protection against accidental contact	Moeller: DILM185 thru DILM400 Eaton: XTCE185L thru XTCE400M	DILM400-XS1	XTCEXSDB400
		Moeller: DILM500 Eaton: XTCE500M	DILM500-XS1	XTCEXSDB500
Paralleling Bridges (Consisting of two paralleling links)
	4th pole can be broken off. AC-1 current carrying capacity of the open contactor increases by a factor of 2.5. Protected against accidental contact (in accordance with IEC 536). Terminal capacity can be found in the Technical Data section.	Moeller: DILEM Eaton: XTMC9A	P1DILEM	XTMCXPLK
		Moeller: DILM7 thru DILM12 Eaton: XTCE007B thru XTCE012B	DILM12-XP1	XTCEXPLKB
		Moeller: DILM17 thru DILM32 Eaton: XTCE018C thru XTCE032C	DILM32-XP1	XTCEXPLKC
		Moeller: DILM40 thru DILM65 Eaton: XTCE040D thru XTCE065D	DILM65-XP1	XTCEXPLKD
		Moeller: DILM80 thru DILM150 Eaton: XTCE080F thru XTCE150G	DILM150-XP1	XTCEXPLKG
	3-pole AC-1 current carrying capacity of the open Contactor increases by a factor of 2.5. A cover is included for protection against accidental contact.	Moeller: DILM185 Eaton: XTCE185L	DILM185-XP1	XTCEXPLKL185
Three-phase Commoning Links
	For linking three contactors; length 135mm Rated to 690V; 63A general purpose Protected against accidental contact; short circuit proof	Moeller: DILM7 thru DILM12 Eaton: XTCE007B thru XTCE012B	DILM12-XDSB0/3	XTCEXCLK3B
	For linking three contactors; length 135mm Rated to 690V; 63A general purpose Protected against accidental contact; short circuit proof		DILM12-XDSB0/4	XTCEXCLK4B
	For linking three contactors; length 135mm Rated to 690V; 63A general purpose Protected against accidental contact; short circuit proof		DILM12-XDSB0/5	XTCEXCLK5B
	For parallel connection of auxiliary contacts Not insulated Standard quantity: 100 Must be ordered in standard quantity	Moeller: DILEM DILER Eaton: XTMC9A XTRM10A	BT480	BT480

Notes:

Tool-less plug connection on face of contactor. If using auxiliary contacts, use Top Mount, High Version (DILA-XHIT…).

For Fast-On Connectors	Description	For Use With...	Moeller Part Number	Eaton Part Number
	1 x (6.3 x 0.8) mm or 2 x (2.8 x 0.8) mm For auxiliary contact and coil connections Use connectors with insulated sleeves. Standard quantity: 100 Must be ordered in standard quantity	Moeller: DILEM DILM185 thru DILM1000 DILER Eaton: XTMC9A XTCE185L thru XTCERENCOILNC XTRM10A	BT483	-
		Moeller: DILM185 thru DILM1000 Eaton: XTCE185L thru XTCERENCOILNC	BT2571	-

Terminal Blocks & Kits	Description	For Use With...	Moeller Part Number	Eaton Part Number
	Terminal capacity: 1 x (AWG 6 – MCM 350) or 2 x (AWG 6 – MCM 300)	Moeller: DILM185 thru DILM225 Eaton: XTCE185L thru XTCE225L	DILM225-XKU-S	XTCEXTLA225A
	Terminal capacity: 1 x (1/Ø – MCM 600) or 2 x (1/Ø – MCM 500)	Moeller: DILM250 thru DILM400 Eaton: XTCE250L thru XTCE400M	DILM400-XKU-S	XTCEXTLA400
	Consists of three individual terminals (Cu, Al), with integrated control circuit terminal; Terminal cover included Terminal capacity: 2 x (AWG 4 – MCM 500)	Moeller: DILM500/22 Eaton: XTCE500M22A	DILM500-XK-CNA	XTCEXTL500
	Consists of three individual terminals (Cu, Al), with integrated control circuit terminal; Terminal cover included Terminal capacity: 2 x (AWG 2 – MCM 500)	Moeller: DILM580/22 DILM650/22 Eaton: XTCE580N22A XTCE650N22A	DILM650-XK-CNA	XTCEXTL650
	Consists of three individual terminals (Cu, Al) Terminal capacity: 4 x (AWG 2 – MCM 500)	Moeller: DILM750/22 DILM820/22 Eaton: XTCE750N22A XTCE820N22A	DILM820-XK-CNA	XTCEXTL8200
Flat Strip Conductor Terminal Kit
	Includes three flat strip conductor terminals and control circuit terminal For bus and flexibus connection See Technical Data for terminal capacity.	Moeller: DILM500 thru DILM650 Eaton: XTCE500M thru XTCE650N	DILM650-XKB-S	XTCEXTFB570
		Moeller: DILM750 DILM820 Eaton: XTCE750N XTCE820N	DILM820-XKB-S	XTCEXTFB820
Control Circuit Tap
	Pressure connector that mounts directly to a power terminal for feeding a control circuit 15A, 600V maximum; AWG 18 – 14	Moeller: DILM80 thru DILM150 Eaton: XTCE080F thru XTCE150G	DILM150-XZK	XTCEXTCWG

Covers	Description	For Use With...	Moeller Part Number	Eaton Part Number
Sealable Shrouds
	Cover snap-mounts onto the device and can be sealed to prevent tampering.	Moeller: DILEM DILER Eaton: XTMC9A XTRM10A	HDILE	XTMCXSHROUD
Terminal Insert
	Provides finger-safe protection (IP2x) by covering the unused terminal in contactors with dual power terminals One package includes 8 Terminal Covers	Moeller: DILM40 thru DILM65 Eaton: XTCE040D thru XTCE065D	DILM65-XIP2X	XTCEXIP2XD
		Moeller: DILM80 thru DILM150 Eaton: XTCE080F thru XTCE150G	DILM150-XIP2X	XTCEXIP2XG
Terminal Cover
	Protection against shock hazards and accidental contact.	Moeller: DILM185 thru DILM400 Eaton: XTCE185L thru XTCE400M	DILM400-XHB	XTCEXTS400
		Moeller: DILM500 Eaton: XTCS500M	DILM500-XHB	XTCEXTS500
		Moeller: DILM580 thru DILM650 Eaton: XTCE580N thru XTCE650N	DILM650-XHB	XTCEXTS650
		Moeller: DILM750 thru DILM1000 Eaton: XTCE750N thru XTCERENCOILNC	DILM820-XHB	XTCEXTS820

Accessory	Description	For Use With...	Moeller Part Number	Eaton Part Number
	For inscriptions using a laser printer, plotter, marker pen or copier 240 labels per sheet (A4 size sheet); Can be split into two A5 sheets	As required	XGKE-GE	XGKE-GE

Side Mount - Standard Terminal Markings

Moeller: DILM40
thru
DILM1000

Eaton: XTCE040D00
thru
XTCERENCOILNC

DILM1000-XHI11-SI

XTCEXSBN11

DILM1000-XHIV11-SI

XTCEXSBLN11

Side Mount - Alternative Terminal Markings

Moeller: DILM40
thru
DILM1000

Eaton: XTCE040D00
thru
XTCERENCOILNC

DILM1000-XHI11-SA

XTCEXSCN11
