| BUTTON TYPE | INDICATOR WITH WHITE CAP | INDICATOR WITH RED CAP | INDICATOR WITH GREEN CAP | INDICATOR WITH YELLOW CAP | INDICATOR WITH BLUE CAP |
FLUSH
(red shown) |
M22-L-W | M22-L-R | M22-L-G | M22-L-Y | M22-L-B |
EXTENDED, CONICAL
(blue shown) |
M22-LH-W | M22-LH-R | M22-LH-G | M22-LH-Y | M22-LH-B |

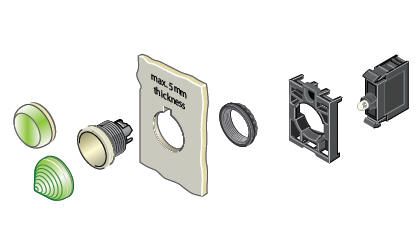

Door Mounting for Light Assemblies |
|
|
|

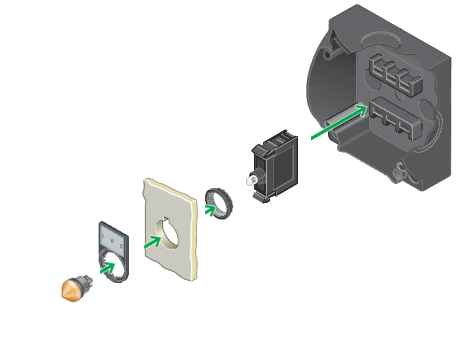

Enclosure Mounting for Light Assemblies |
|
|

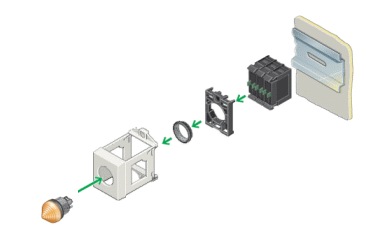

DIN Rail Mounting for Light Assemblies |
|
|
Indicator Light Lenses |
||
| Flush | ||
|
||
| Color | Inscription | Part Number |
| White | None | M22-XL-W |
| Red | M22-XL-R | |
| Green | M22-XL-G | |
| Yellow | M22-XL-Y | |
| Blue | M22-XL-B | |
| Red | Off | M22-XL-R-GB5 |
| White | Off | M22-XL-w-GB5 |
| Green | On | M22-XL-G-GB6 |
| White | On | M22-XL-W-GB6 |
| Blue | Fault | M22-XL-B-GB8 |
| White | Fault | M22-XL-W-GB8 |
| White | Forward | M22-XL-W-GB15 |
| White | Reverse | M22-XL-W-GB16 |
| Extended | ||
| Color | Inscription | Part Number |
|
||
| White | None | M22-XLH-W |
| Red | M22-XLH-R | |
| Green | M22-XLH-G | |
| Yellow | M22-XLH-Y | |
| Blue | M22-XLH-B | |
Indicator Light Housing |
M22-L-X |
Indicator Light Mounting Adapter |
M22-A |
Indicator Light Front Mounted LED Elements |
||
|
||
| Color | Voltage | Part Name |
| White |
12 – 30 V AC/DC
8 – 15 mA |
M22-LED-W |
| Red | M22-LED-R | |
| Green | M22-LED-G | |
| Blue | M22-LED-B | |
| White |
85 – 264 V AC,
50/60 Hz 5 – 15 mA |
M22-LED230-W |
| Red | M22-LED230-R | |
| Green | M22-LED230-G | |
| Blue | M22-LED230-B | |
| White |
207 – 264 V AC,
50/60 Hz 12 – 15 mA |
M22-LED230H-W |
| Red | M22-LED230H-R | |
| Green | M22-LED230H-G | |
| Blue | M22-LED230H-B | |
