Eaton/Moeller FAZ Miniature Circuit Breaker Family Overview

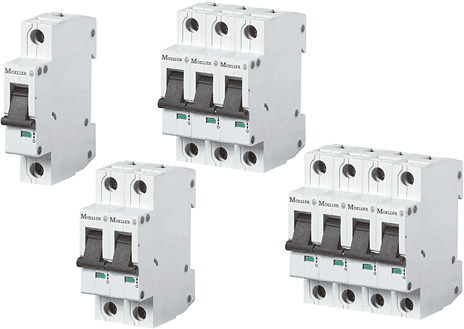

Available Configurations

1, 2, 3 or 4 Protected Poles

1 or 3 Protected Pole plus neutral

Auxiliary contacts can be added to any breaker.

FAZ-B

FAZ-C

FAZ-D

FAZ-K

Click here for the FAZ-B Summary Page

Click here for the FAZ-C Summary Page

Click here for the FAZ-D Summary Page

Click here for the FAZ-K Summary Page

FAZ-S

FAZ-Z

FAZ-PN-B

FAZ-PN-C

Click here for the FAZ-S Summary Page

Click here for the FAZ-Z Summary Page

Click here for the
FAZ-PN-B Summary Page

Click here for the
FAZ-PN-C Summary Page

FAZ-C-DC

Click here for the
FAZ-C-DC Summary Page

Download all FAZ AWA Installation Sheets

Click here to view the Characteristics of the FAZ Circuit Breakers

FAZ ADD-ON OPTIONS

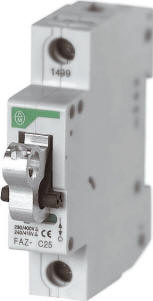

Lock Out Device

FAZ-FIP-XSV

Shown installed on a FAZ-C25 Breaker

The component is supplied with the groove of the yellow selector button in the horizontal position: Changeover contact 4.11 – 4.12/4.14 switches manually and electrically.

Rotation of the yellow selector button by 90° will ensure that contact 4.11 – 4.12/4.14 can only be tripped electrically: When manually tripped, contact 4.11 – 4.12/4.14 remains closed.

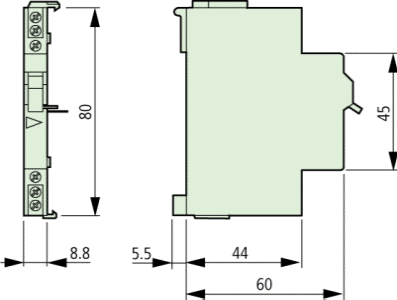

Trip Indicating and /or AUXILIARY CONTACT

FAZ-XAM-002

AUXILIARY CONTACT

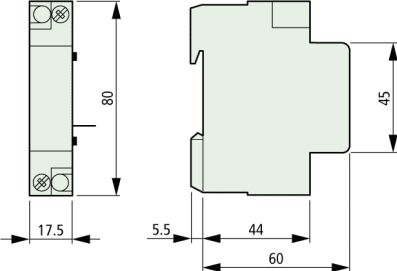

FAZ-XHI11

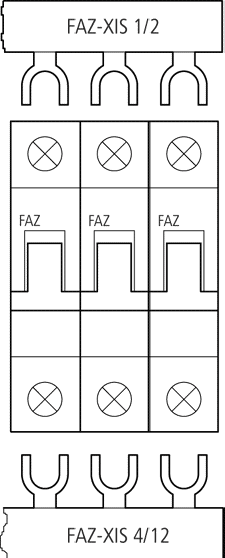

Buss Bars For breakers without auxiliary contacts
Phases	Rated Current	Part#	Positions
1	85	FAZ-XIS 1 / 2	2
		FAZ-XIS 1 / 6	6
		FAZ-XIS 1 / 12	12

2	100	FAZ-XIS 2 / 4	4
		FAZ-XIS 2 / 6	6
		FAZ-XIS 2 / 12	12

3	100	FAZ-XIS 3 / 6	6
		FAZ-XIS 3 / 12	12

4	100	FAZ-XIS 4 / 8	8
		FAZ-XIS 4 / 12	12

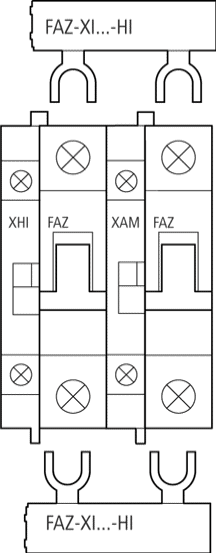

Buss Bars For breakers with auxiliary contacts ( -HI )
Phases	Rated Current	Part#	Positions
1	85	FAZ-XIS 1 / 2 -HI	2
		FAZ-XIS 1 / 6 -HI	6
		FAZ-XIS 1 / 9 -HI	9

2	100	FAZ-XIS 2 / 4 -HI	4
		FAZ-XIS 2 / 6 -HI	6
		FAZ-XIS 2 / 10 -HI	10

3	100	FAZ-XIS 3 / 6 -HI	6
		FAZ-XIS 3 / 12 -HI	12
		FAZ-XIS 31 / 6 -HI	6
		FAZ-XIS 31 / 8 -HI	8
		FAZ-XIS 31 / 9 -HI	9
